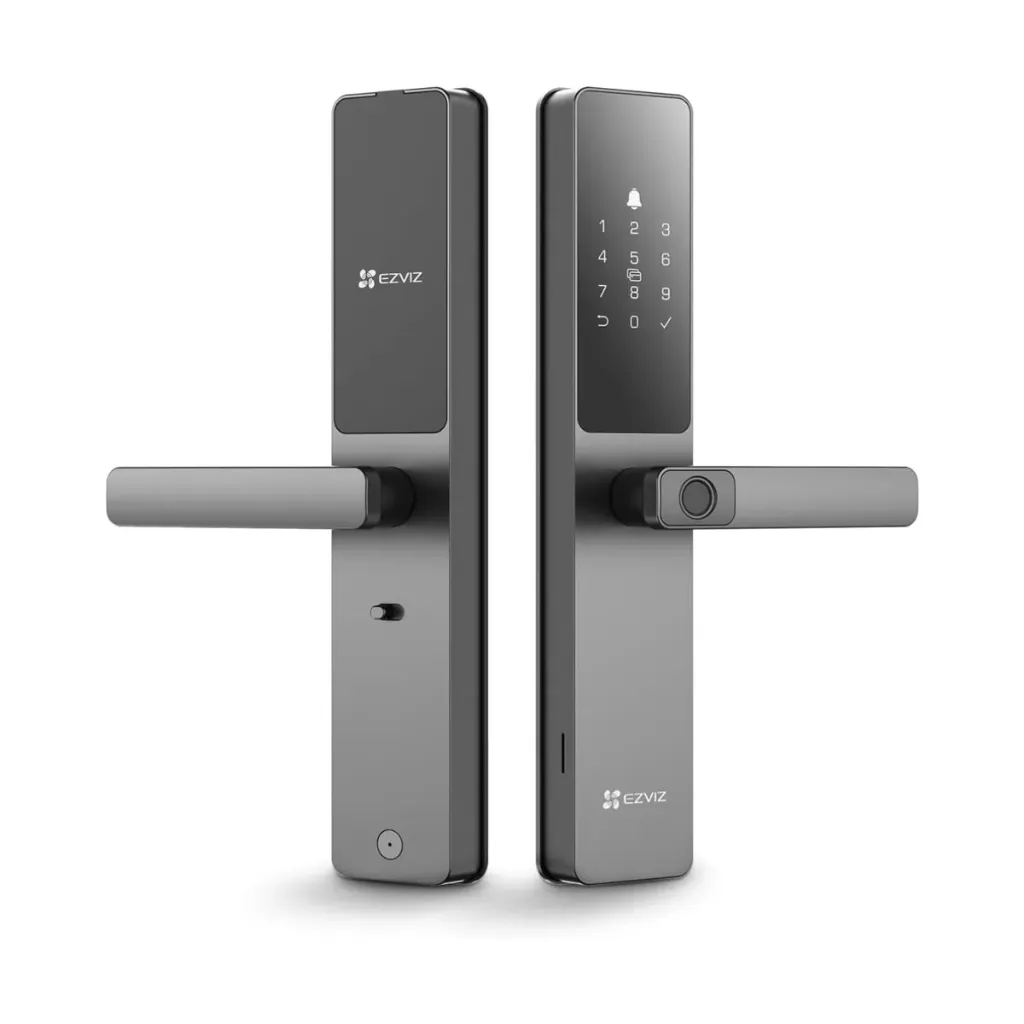

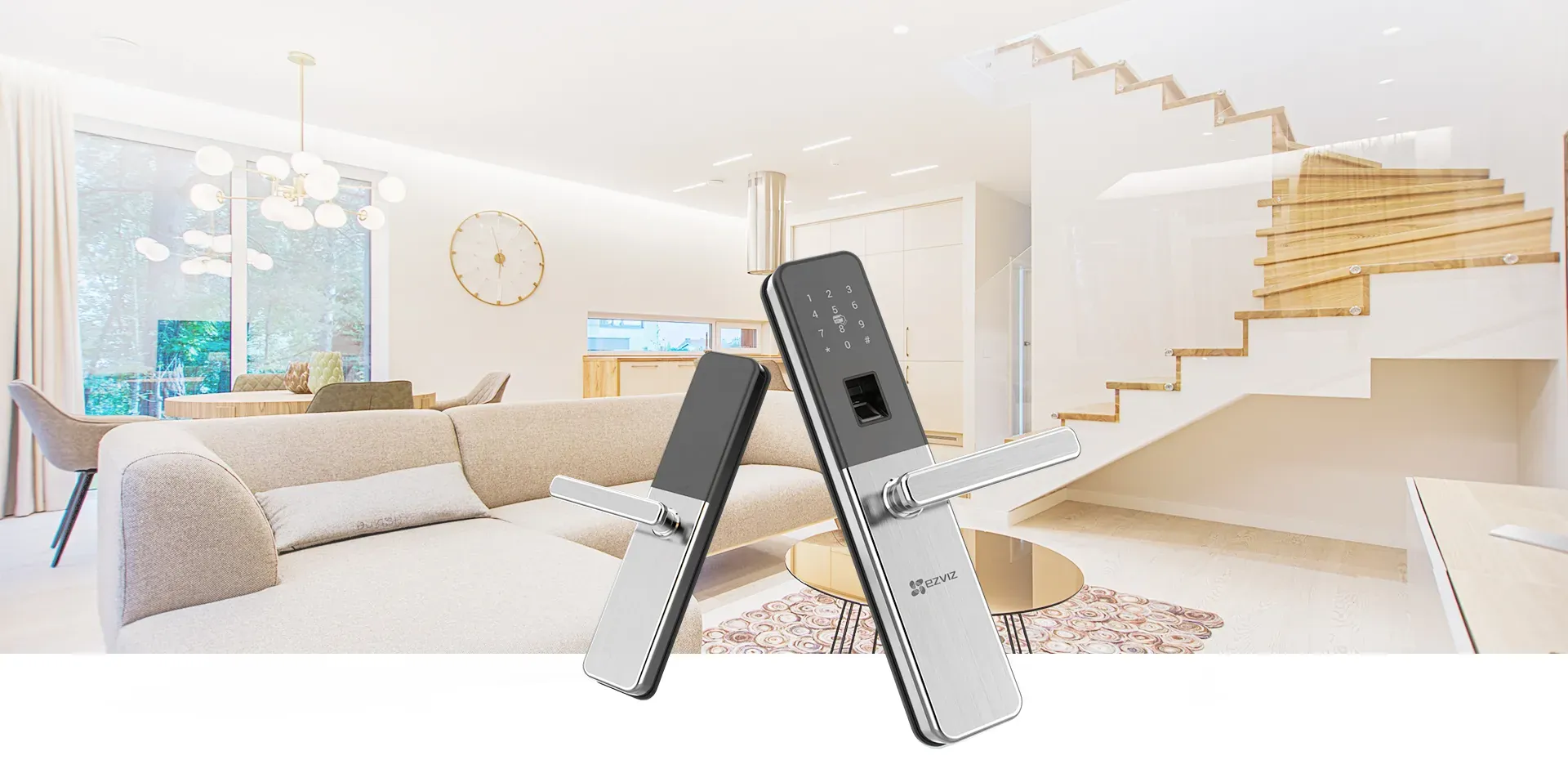

DL10
Keyless security, made simple
Smart fingerprint door lock
A standalone smart lock that opens four ways, sounds an alarm if anyone tampers with it and locks with a high-security C-class cylinder. No Wi-Fi or app needed, so it simply works, every day.

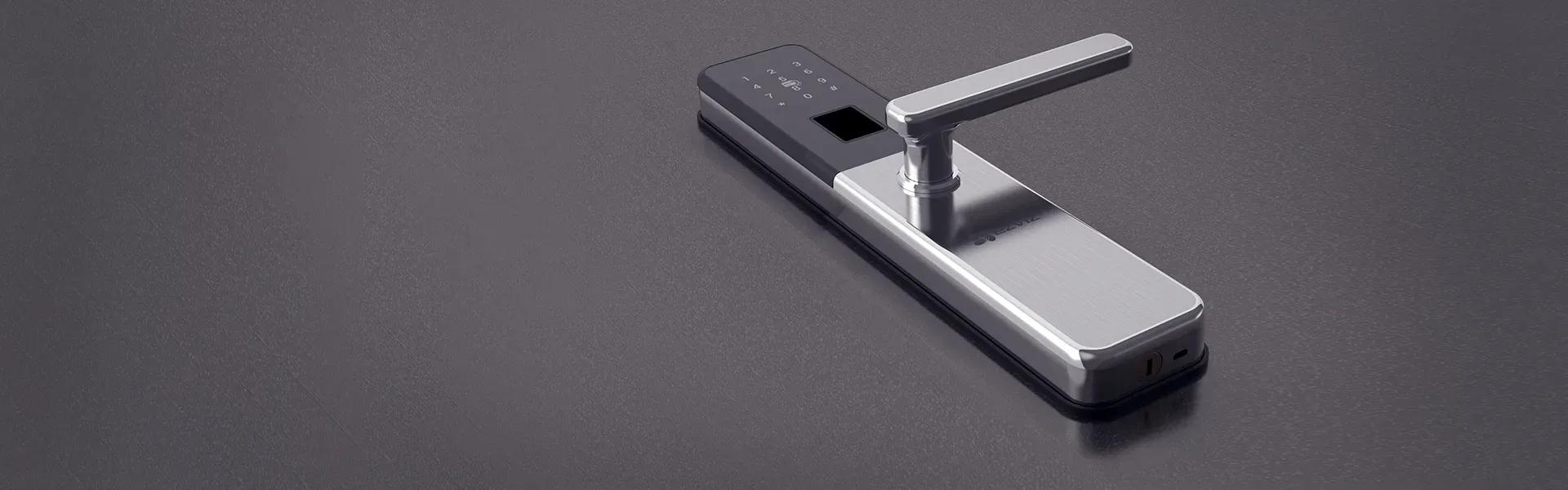

Built to keep intruders out
The DL10 pairs a high-security latch with a C-class cylinder, making it far harder to pick or force than an ordinary lock.¹ Try to tamper with it and the built-in alarm sounds to scare intruders off.

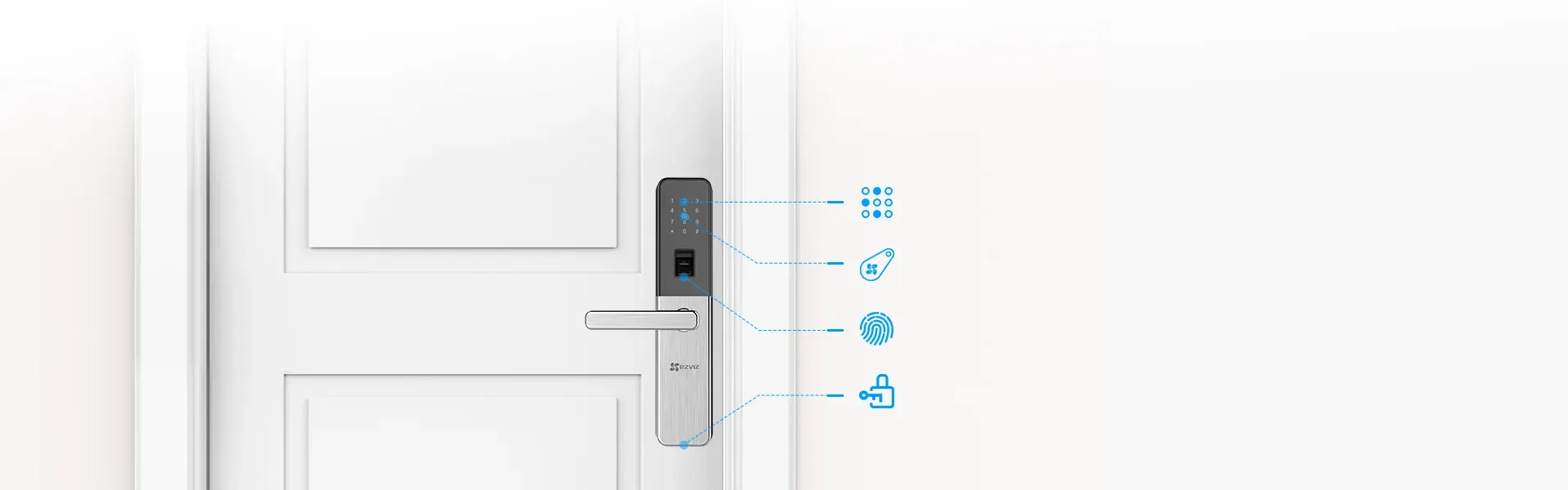

No keys needed
Open your door with a PIN, an RFID card or your fingerprint, and keep the mechanical key as a backup. No more spare keys to cut for the family.
- PIN code
- RFID card
- Fingerprint
- Mechanical key

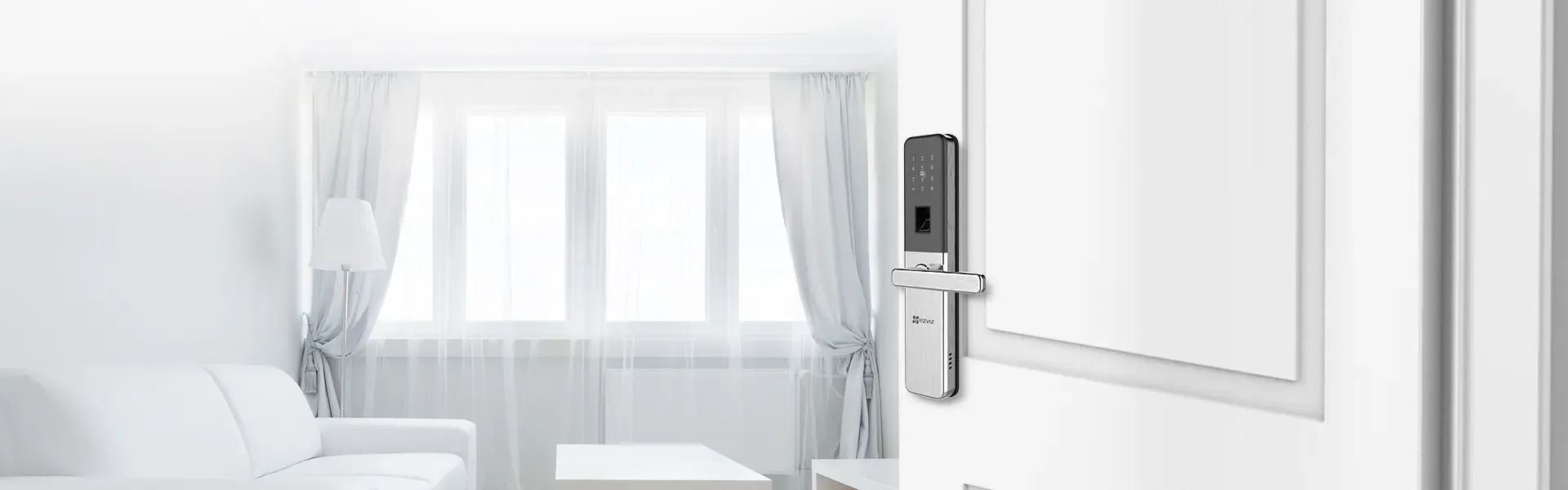

Opens in under a second
The semiconductor sensor reads fingerprints more accurately than optical ones, so it recognises the faint prints of children and elderly family members. Store up to 100 fingerprints, 100 PINs and 100 cards.

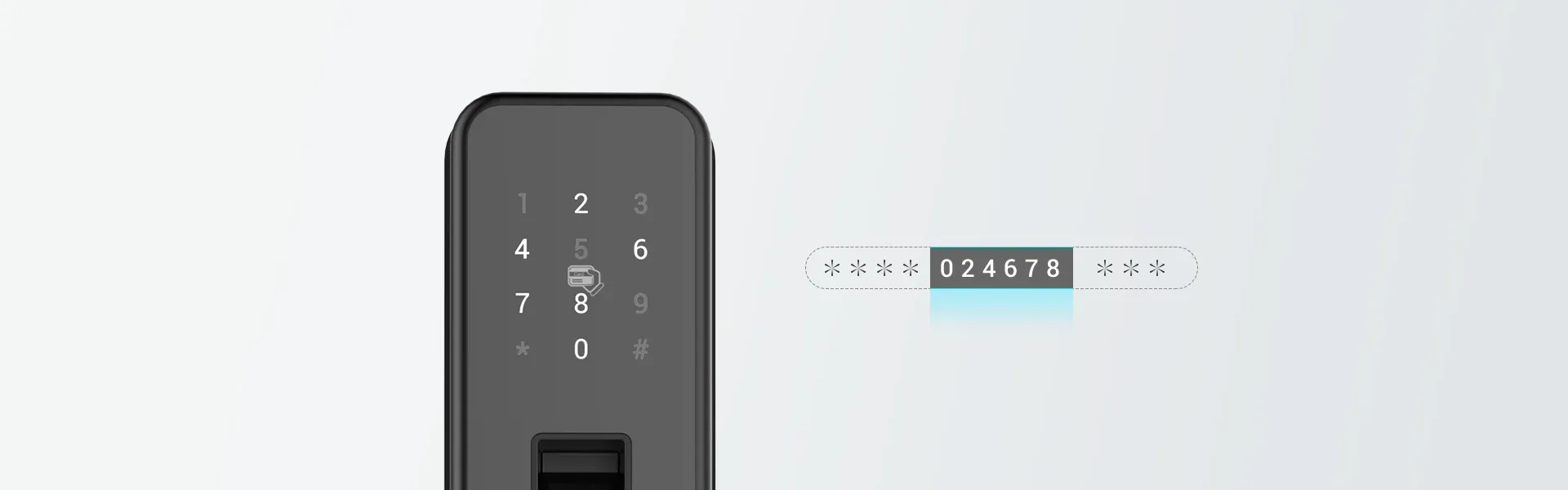

No peeking
Type random digits before and after your real PIN. Anyone watching sees a jumble, never your code.
- Random digits
- Your PIN
- Random digits

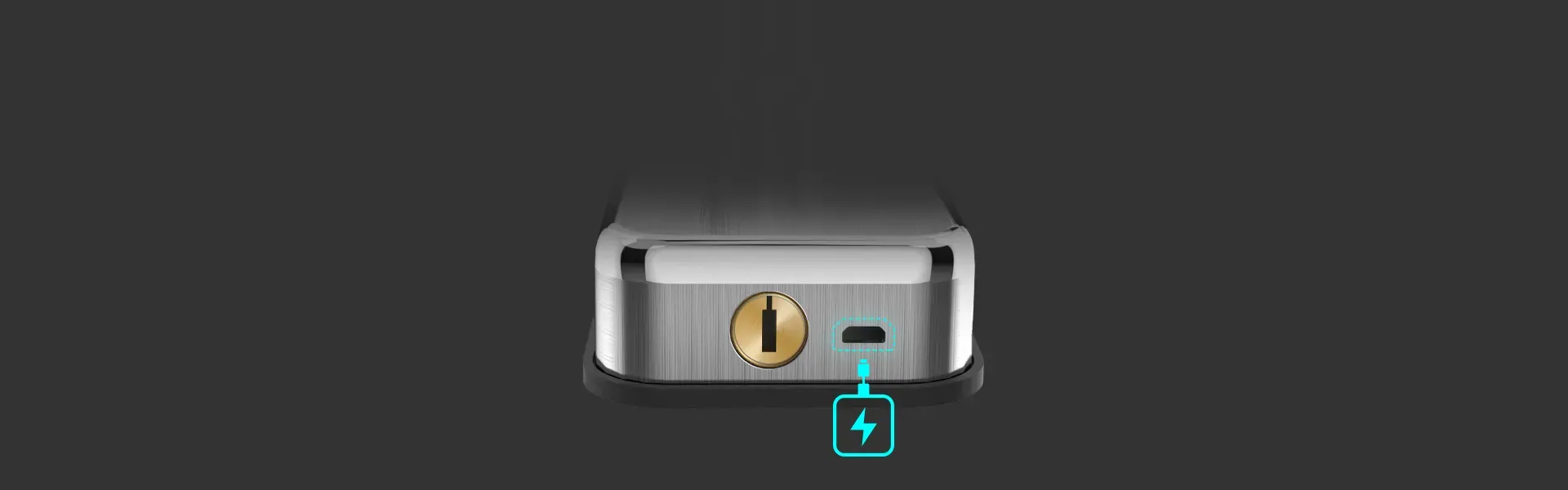

Flat batteries? You still get in
A voice alert warns you when the AA batteries run low. If they run out, power the lock from a power bank through the Micro USB port and unlock once.
Specifications
- EZVIZ cites test data from China's Ministry of Public Security: an average of 270 minutes to defeat a DL10 lock, around 270 times longer than an ordinary lock.
DL10
Keyless security, made simple
Smart fingerprint door lock
A standalone smart lock that opens four ways, sounds an alarm if anyone tampers with it and locks with a high-security C-class cylinder. No Wi-Fi or app needed, so it simply works, every day.
Built to keep intruders out
The DL10 pairs a high-security latch with a C-class cylinder, making it far harder to pick or force than an ordinary lock.¹ Try to tamper with it and the built-in alarm sounds to scare intruders off.
No keys needed
Open your door with a PIN, an RFID card or your fingerprint, and keep the mechanical key as a backup. No more spare keys to cut for the family.
- PIN code
- RFID card
- Fingerprint
- Mechanical key
Opens in under a second
The semiconductor sensor reads fingerprints more accurately than optical ones, so it recognises the faint prints of children and elderly family members. Store up to 100 fingerprints, 100 PINs and 100 cards.
No peeking
Type random digits before and after your real PIN. Anyone watching sees a jumble, never your code.
- Random digits
- Your PIN
- Random digits
Flat batteries? You still get in
A voice alert warns you when the AA batteries run low. If they run out, power the lock from a power bank through the Micro USB port and unlock once.
Specifications
- EZVIZ cites test data from China's Ministry of Public Security: an average of 270 minutes to defeat a DL10 lock, around 270 times longer than an ordinary lock.
Key specs
- Fingerprint, PIN, RFID card, mechanical key
- 100 fingerprints, 100 PINs, 100 cards
- Semiconductor sensor, under 1 second
- C-class cylinder, high-security latch
- Virtual PIN, tamper and low-battery alarms
- 4 AA batteries (room for 8), Micro USB backup
- Iron or wooden doors, 65 to 80 mm (40 to 110 mm with kit)
- Stainless steel, left or right opening
|
Material and Specification |
|
|
Panel Material |
Aluminium alloy |
|
Panel Size |
360 × 67 × 27 mm (14.17 × 2.64 × 1.06 inch) |
|
Color |
Metallic grey |
|
Lock Body Type |
Lift-up lock body |
|
Lock Cylinder |
5085 / 6068 |
|
Weatherproof |
IP65 (Front Panel) |
|
Emergency Charging |
Type-C |
|
Working Power |
1.5V AA alkaline batteries x8 |
|
Technical Specification |
|
|
Unlocking Method |
Fingerprint, passcode, proximity card, mechanical key, Bluetooth key via EZVIZ App, temporary codes, remote unlock |
|
User Capacity |
50 pcs |
|
Fingerprint Capacity |
50 pcs |
|
Passcode Capacity |
50 pcs |
|
Card Capacity |
50 pcs |
|
Communication Methods |
2.4GHz Wi-Fi, Bluetooth |
|
Temporary Access Codes |
Supports |
|
Anti-Peeping Codes |
Supports (Up to 20 digits) |
|
Low Battery Warning |
Supports |
|
Privacy Mode |
Supports |
|
User Management |
Supports |
|
Real Time Notification |
Supports |
|
Anti-Test Locking |
Supports |
|
Anti-Tamper Alarm |
Supports, enter error 5 times within 5 min, locking 3 min. |
|
Remote Control |
Supports |
|
Child Safety Lock |
Supports |
|
Voice Control |
Soon Supports (Google Assistant / Amazon Alexa) |
|
Supported Door Thickness |
30-110 mm |
|
Working Temperature |
-25°C~70°C |
|
Operating Humidity |
10%~95% |
|
Certifications |
|
|
Certifications |
CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE / UKCA |
Know before you buy
Quick answers about the DL10, and how it compares.
How do I unlock the DL10?
Four ways: fingerprint, PIN code, RFID card or the mechanical key. It stores up to 100 fingerprints, 100 PINs and 100 cards, so the whole family, staff and guests can each have their own.
Does it need Wi-Fi or the EZVIZ app?
No. The DL10 is a standalone lock: you add fingerprints, PINs and cards on the lock itself, guided by English voice prompts. Nothing to connect, so it keeps working whatever happens to your internet.
Will it fit my door?
It suits iron and wooden doors 65 to 80 mm thick, or 40 to 110 mm with an extra kit, opening left or right. Lift the handle up to lock. It replaces your existing lock, so we recommend professional fitting.
What if the batteries run out?
It runs on 4 AA batteries (with room for 8) and a voice alert warns you when they are low. If they run flat, power it from a power bank through the Micro USB port to unlock once, or use the mechanical key.
How secure is it?
A C-class cylinder and high-security latch make it far harder to pick than an ordinary lock. A tamper alarm sounds if someone tries to force it, and the virtual PIN lets you hide your code among random digits.
DL10 or DL05?
Both open by fingerprint, PIN, card and key. The DL05 adds Bluetooth and unlocking from the EZVIZ app. Choose the DL10 for a simple standalone lock that needs no phone or internet.
DL10 or DL03?
The DL03 is a rim lock that fits on your existing door with no cutting, opened by passcode or the app. The DL10 replaces the lock and adds fingerprint, card and key unlocking.
How do the EZVIZ smart locks compare?
| Model | Unlock with | See who is outside | Fits | Power |
|---|---|---|---|---|
| DL03 | Passcode, visitor codes, app | No | Rim lock on your existing door | 4 × AA |
| DL10 | Fingerprint, PIN, card, key | No | Iron or wooden doors 65 to 80 mm, C-class cylinder | 4 × AA |
| DL05 | Fingerprint, passcode, card, Bluetooth, app, key | No | 6068 lock body, doors 40 to 120 mm | 8 × AA |
| DL50FVS | 3D face, fingerprint, passcode, Bluetooth, app, key | 4-inch screen, video call | Full lock with C-level cylinder | 5,000 mAh rechargeable |
| DL20FVS Plus | 3D face, palm vein, fingerprint, passcode, Bluetooth, app, key | 4-inch screen, video call | 6068 lock body, doors 40 to 120 mm | 5,000 mAh rechargeable |
Who sells EZVIZ in Pakistan, and what warranty and support do I get?
Electronic Security Company (ESCO) is the authorized national distributor of EZVIZ in Pakistan, so every unit is genuine and comes with a 1-year warranty. Warranty is carry-in: bring the unit to an ESCO office or the dealer you bought from, and after inspection it is repaired or replaced.
Order here and delivery is free anywhere in Pakistan. We keep stock in Karachi, Lahore, Islamabad and Rawalpindi, and our dealer network covers almost every other city. EZVIZ products are made to set up yourself in the EZVIZ app; if you get stuck, our helpdesk helps on WhatsApp, phone and email, 10am to 6pm. Use Add to Cart, or Request a Quote for several units.
