DS-2CD1343G0-IUF 4mm

DS-2CD1343G0-IUF 4mm

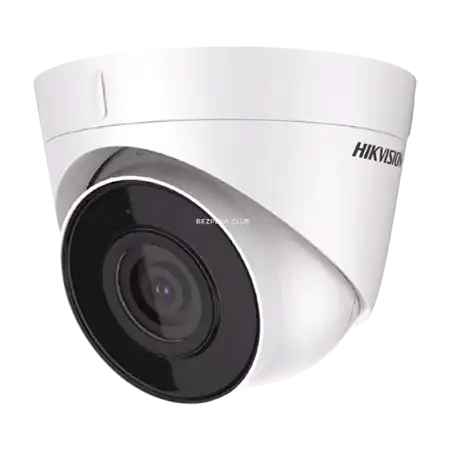

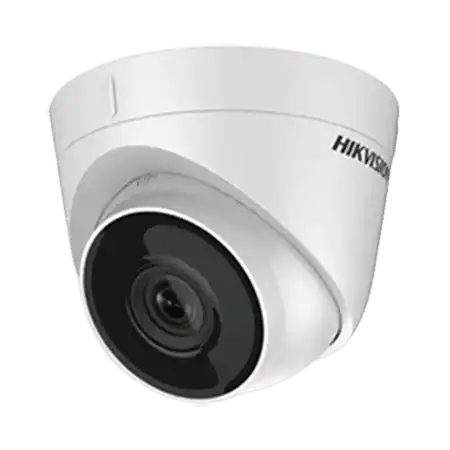

Hikvision DS-2CD1343G0-IUF 4MP IR Turret Network Camera, 2560 × 1440, Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON), 4mm Focal Length, 30m IR Range, Built-in Microphone, HLC, 3D-DNR, BLC, ROI, Built-in micro SD/SDHC/SDXC slot (Support Up to 256 GB), PoE(802.3af) and 12 VDC, Water and dust resistant (IP67).

Resolution

4MP (2560 × 1440)

IR Range

Up to 30m IR Range

Frame Rate

20fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Video Compression

Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG

Smart Features

120dB WDR, 3D DNR, BLC, ROI

Alarms Trigger

Motion detection, video tampering alarm, illegal login

General Function

Motion Detection, Privacy Mask

Protection Level

IP67 Weatherproof

Camera

Image Sensor

1/3" progressive scan CMOS

Min. Illumination

Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)

Shutter Speed

1/3 s to 1/100, 000 s, support slow shutter

Slow Shutter

Yes

Auto-Iris

No

Day &Night

IR cut filter

Digital Noise Reduction

3D DNR

WDR

120dB WDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

Lens

Focal length

4 mm

Aperture

F2.0

Focus

No

FOV

horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°

Lens Mount

M12

IR

IR Range

Up to 30 m

Wavelength

850 nm

Compression Standard

Video Compression

Main stream: H.265 / H.264

Sub stream: H.265 / H.264 / MJPEG

H.264 Type

Baseline Profile / Main Profile / High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

Smart Feature-set

Region of Interest

1 fixed region for main stream and sub-stream


Max. Resolution

2560 × 1440

Main Stream
Max. Frame Rate

50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-stream

Max. Frame Rate

50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)

60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)

Image Enhancement

BLC, 3D DNR

Image Setting

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Auto, scheduled

Network

Network Storage

NAS (NFS, SMB/CIFS)

Alarm Trigger

Motion detection, video tampering alarm, illegal login

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect, iVMS-5200

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

General

Operating Conditions

-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Power Consumption and Current

12 VDC, 0.4 A, Max: 5 W

PoE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W

Ingress Protection

IP67

TVS 2000V lightning protection, surge protection and voltage transient protection

Material

Metal & Plastic

Dimensions

Camera: Ø 110 mm × 93.2 mm ( 4.3" × 3.7")
