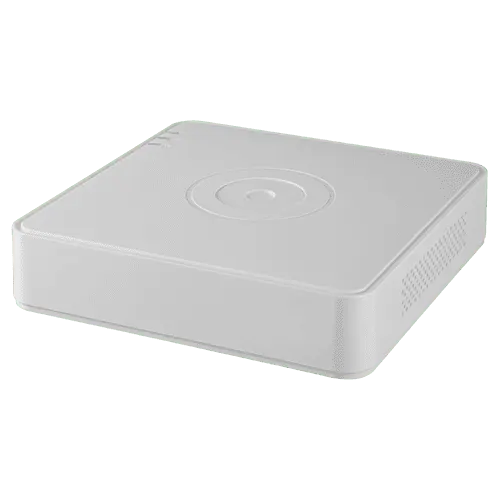

DS-7104HGHI-F1
DS-7104HGHI-F1
Hikvision 4 channels mini size Turbo HD DVR, 1 HDD SATA Interface, H.264+ / H.264 video compression, Encoding ability up to 1080p lite @ 25/30 fps, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), 12 VDC.
Analog Video Input
4 Channel Turbo HD DVR
Encoding Resolution
Encoding ability up to 1080p lite @ 25/30 fps
Video Compression
H.264+ / H.264 video compression
Video Input
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
IP Cameras
Up to 4 network cameras can be connected on Enhanced IP Mode
Transmission Distance
Max. 800m for 1080p and 1200m for 720p HDTVI signal
Recording |
|
Video compression |
H.264+/H.264 |
Encoding resolution |
When 1080p Lite mode not enabled: 720p / WD1 / 4CIF / VGA / CIF When 1080p Lite mode enabled: 1080p lite / 720p / WD1 / 4CIF / VGA / CIF |
Frame rate |
Main stream: |
Video bit rate |
32 Kbps to 4 Mbps |
Dual stream |
Support |
Stream type |
Video, Video & Audio |
Audio compression |
G.711u |
Audio bit rate |
64 Kbps |
Video and Audio |
|
IP video input |
Up to 4-ch |
Up to 960p resolution |
|
Support H.264+/H.264 IP cameras |
|
Analog video input |
4-ch |
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
Turbo HD input |
1080p25, 1080p30, 720p25, 720p30 |
AHD input |
1080p25, 1080p30, 720p25, 720p30 |
HDCVI input |
1080p25, 1080p30, 720p25, 720p30 |
CVBS input |
Support |
HDMI/VGA output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Audio input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
Audio output |
1-ch, RCA (Linear, 1 KΩ) |
Two-way audio |
Reuse the first audio input |
Synchronous playback |
4-ch |
Network |
|
Remote connections |
32 |
Network protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
Auxiliary interface |
|
SATA |
1 SATA interface |
Capacity |
Up to 6 TB capacity for each disk |
Alarm in/out |
N/A |
USB interface |
Rear panel: 2 × USB 2.0 |
General |
|
Power supply |
12 VDC |
Consumption (without HDD) |
≤ 8 W |
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
Working humidity |
10% to 90% |
Dimensions (W × D × H) |
200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) |
Weight (without HDD) |
≤ 0.8 kg (1.8 lb) |
