DS-7104HGHI-K1
DS-7104HGHI-K1

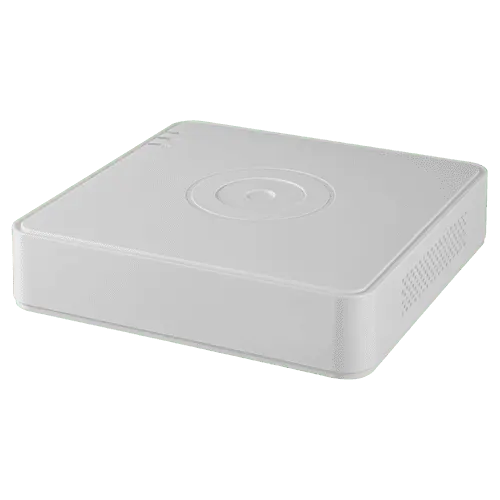

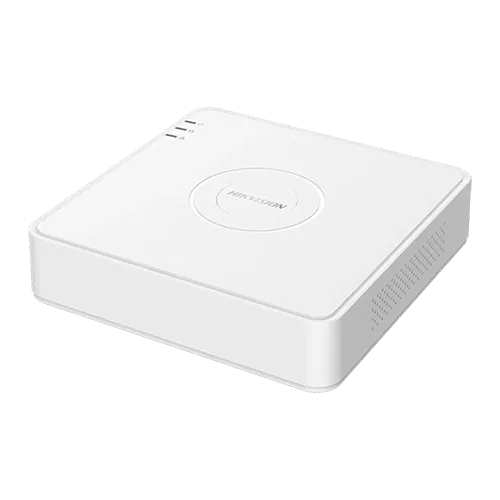

Hikvision DS-7104HGHI-K1 4 Ch 1080p Mini 1U H.265 DVR, H.265 pro+ compression, Encoding ability up to 1080p Lite @ 15 fps, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), 1-ch (up to 5-ch) IP Camera can be connected on Enhanced IP Mode, Audio Input/Output, Total Bandwidth: 64Mbps, 1 SATA interface (Up to 4 TB capacity for each disk), 12 VDC, 1.5 A.
Analog Video Input
4 Channel BNC interface DVR
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
Encoding ability up to 1080p Lite @ 15 fps
Video Input
HDTVI/AHD/CVI/CVBS/IP video input
Video Output
VGA/HDMI Output
Audio
Support Audio via Coaxial Cable
Motion Detection 2.0 |
|
Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
Recording |
|
Video Compression |
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
Encoding Resolution |
For
1080p stream access: 1080p Lite / 720p Lite |
Frame Rate |
Main stream: For 1080p stream access: 1080p Lite / 720p Lite @25 fps(P)/30 fps (N)
|
Video Bitrate |
32 Kbps to 4 Mbps |
Stream Type |
Video, Video & Audio |
Audio Compression |
G.711u |
Audio Bitrate |
64 Kbps |
Video and Audio |
|
IP Video Input |
1-ch (up to 5-ch) Up to 1080p resolution Support H.265+ / H.265 / H.264+ / H.264 IP cameras |
Analog Video Input |
4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
HDTVI Input |
1080p25, 1080p30, 720p25, 720p30 |
AHD Input |
1080p25, 1080p30, 720p25, 720p30 |
HDCVI Input |
1080p25, 1080p30, 720p25, 720p30 |
CVBS Input |
Support |
HDMI Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
VGA Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
Video Output Mode |
HDMI/VGA simultaneous output |
Audio Input |
1-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable |
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
Two-Way Audio |
Reuse the first audio input |
Synchronous playback |
4-ch |
Network |
|
Total Bandwidth |
64 Mbps |
Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
Remote Connection |
32 |
Network Interface |
1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
Auxiliary Interface |
|
SATA |
1 SATA interface |
Capacity |
Up to 4 TB capacity for each disk |
USB Interface |
Rear panel: 2 × USB 2.0 |
Alarm In/Out |
N/A |
General |
|
Power Supply |
12 VDC, 1.5 A |
Consumption |
≤ 16 W (without HDD) |
Working Temperature |
-10 °C to 55 °C (14 °F to +31 °F) |
Working Humidity |
10% to 90% |
Dimension (W × D × H) |
200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) |
Weight |
≤ 0.8 kg (without HDD, 1.8 lb.) |
