DS-KD9403-E6

DS-KD9403-E6

Hikvision DS-KD9403-E6 Facial Recognition Door station, 8-inch colorful Capacitive touch screen with 1280 × 880 resolution, 2 MP HD camera, ROM: 4 GB, RAM: 2 GB, IR light, up to 3 m, Built-in omnidirectional microphone, Built-in loudspeaker, User capacity: 20000, Face capacity: 10000, Card capacity: 100000, Alarm input, 2 RJ-45 10/100/1000 Mbps self-adaptive, TAMPER, Exit button, RS-485, 2 relays, multiple authentication modes, such as face, QR code, card and buttons, IP65.

Facial Recognition Door Station

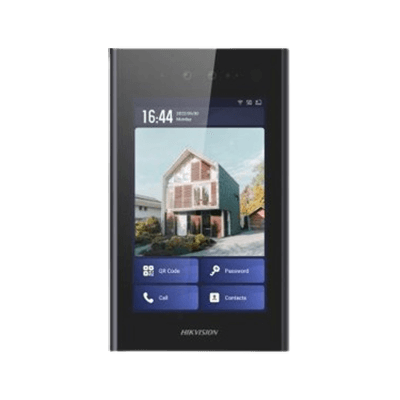

Hikvision DS-KD9403-E6 Facial Recognition Door station

Display

Intuitive operation for a better user experience 8-inch colorful LCD screen with 1280 × 880 resolution

Application

Suitable for the scenarios of enterprise, apartments, offices, construction site, etc.

Camera

2 MP HD camera

Interface

Built-in microphone & Loudspeaker, RS-485, Tamper, USB
User Capacity: 20000, Face Capacity: 10000, Card Capacity: 100000

Multiple authentication modes

Multiple intelligent authentications: Card, PIN code, QR code & face recognition

System Parameters

ROM

4 GB

RAM

2 GB

Processor

Embedded high performance processor

Display Parameters

Screen size

8-inch

Operation method

Capacitive touch screen

Type

Colorful IPS

Resolution

1280 × 800

Brightness

410 cd/m²

Video Parameters

Lens

2 MP HD camera

Resolution

Main stream:1920 × 1080p and 1280 × 720p Sub stream: 1280 × 720p and 640 × 480p

FOV

Horizontal: 88°, Vertical: 44°

Wide dynamic range (WDR)

Digital WDR/120 dB

Supplement light

IR light, up to 3 m

Video compression standard

H.264

Audio Parameters

Audio input

Built-in omnidirectional microphones

Audio compression standard

G.711 U, G.711 A

Audio output

Built-in loudspeakers

Audio compression bitrate

64 Kbps

Audio quality

Noise suppression and echo cancellation

Volume adjustment

Adjustable

Capacity

User capacity

20000

Face capacity

10000

Card capacity

100000

Linked indoor station capacity

500

Sub door station capacity

16

Network parameters

Network protocol

TCP/IP, RTSP

Authentication

Card reading frequency

13.56 MHz

Device interfaces

Alarm input

4 (2 exit buttons and 2 door contacts by default)

Network interface

2 RJ-45 10/100/1000 Mbps self-adaptive (1 reserved)

TAMPER

1

Exit button

2 (1 for lock control and 1 for secure door control unit)

RS-485

2 RS-485 (Half duplex, HIKVISION)

USB

2 for internal use only

TF card

1 (reserved)

Alarm output

2 (reserved)

Lock control

2 relays, Max. 30 VDC, 2 A, lock 2 needs secure module

Door contact input

1

General

Installation

Surface mounting and flush mounting

Weight

Net weight: 0.965 kg Gross weight: 2.772 kg

Protective level

IP65

Working temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working humidity

10% to 90% (no-condensing)

Dimension (W × H × D)

244 mm × 145 mm × 26 mm (9.6'' × 5.7'' × 1'')

Power supply

12 VDC, 2 A

Application environment

Outdoor

Power consumption

18 W
