DS-KD9633-WBE6

DS-KD9633-WBE6

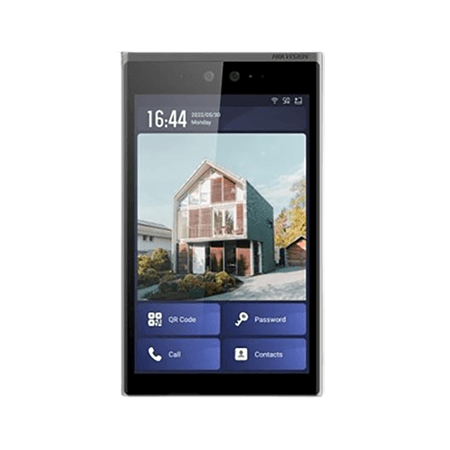

Hikvision DS-KD9633-WBE6 Facial Recognition Door station, 10.1-inch colorful Capacitive touch screen with 1280 × 880 resolution, Built-in Android system, 2 x 2 MP HD camera with low illumination, IR light: up to 3m, 2 built-in omnidirectional microphone, Built-in loudspeaker, User Capacity: 20000, Face Capacity: 10000, Card Capacity: 100000, 2 RS-485, Tamper, Exit button, Wi-Fi, Bluetooth, Multiple intelligent authentications: Card, PIN code, Bluetooth, QR code, & face recognition, IP65 and IK07.

Door Station

Hikvision DS-KD9633-WBE6 Facial Recognition Door station

Display

Intuitive operation for a better user experience 10.1-inch colorful touch LCD screen with 1280 × 880 resolution

Application

Suitable for the scenarios of enterprise, apartments, offices, construction site, etc.

Camera

2 x 2MP HD camera with low illumination

Interface

Built-in microphone & Loudspeaker, RS-485, Tamper, Wi-Fi, Bluetooth
User Capacity: 20000, Face Capacity: 10000, Card Capacity: 100000

Multiple authentication modes

Card, PIN code, Bluetooth, QR code & face recognition

System parameters

ROM

4 GB

RAM

2 GB

Processor

Embedded high performance processor

Display parameters

Screen size

10.1-inch

Operation method

Capacitive touch screen

Type

Colorful IPS

Resolution

1280 × 800

Brightness

410  cd/m²

Video parameters

Lens

2 x 2 MP HD camera with low illumination

Resolution

Main stream:1920 × 1080p and 1280 × 720p Sub stream: 1280 × 720p and 640 × 480p

FOV

Horizontal: 88°, Vertical: 44°

Wide dynamic range (WDR)

Digital WDR/120 dB

Supplement light

IR light, up to 3 m

Video compression standard

H.264

Audio parameters

Audio input

2 built-in omnidirectional microphones

Audio compression standard

G.711 U, G.711 A

Audio output

1 built-in loudspeaker

Audio compression bitrate

64 Kbps

Audio quality

Noise suppression and echo cancellation

Volume adjustment

Adjustable

Capacity

User capacity

20000

Face capacity

10000

Card capacity

100000

Linked indoor station capacity

500

Sub door station capacity

16

Network parameters

Network protocol

TCP/IP, RTSP

Wi-Fi

Reserved

Bluetooth

Reserved

Authentication

Card reading frequency

13.56 MHz

Device interfaces

Alarm input

4 (2 exit butttons and 2 door contacts by default)

Network interface

2 RJ-45 10/100/1000 Mbps self-adaptive (1 reserved)



TAMPER

1





Exit button

2 (1 for lock control and 1 for secure door control unit)





RS-485

2 RS-485 (Half duplex, HIKVISION)





USB

2 for internal use only





TF card

1 (reserved)





Alarm output

2 (reserved)





Lock control

2 relays, Max. 30 VDC, 2 A, lock 2 needs secure module





Door contact input

1





General





Installation

Surface mounting and flush mounting





Weight

Net weight: 1.225 kg Gross weight: 3.333 kg





Protective level

IP65 and IK07





Working temperature

-30 °C to 60 °C (-22 °F to 140 °F)





Working humidity

10% to 90% (no-condensing)





Power supply

12 VDC, 2 A





Application environment

Outdoor





Power consumption

18 W
