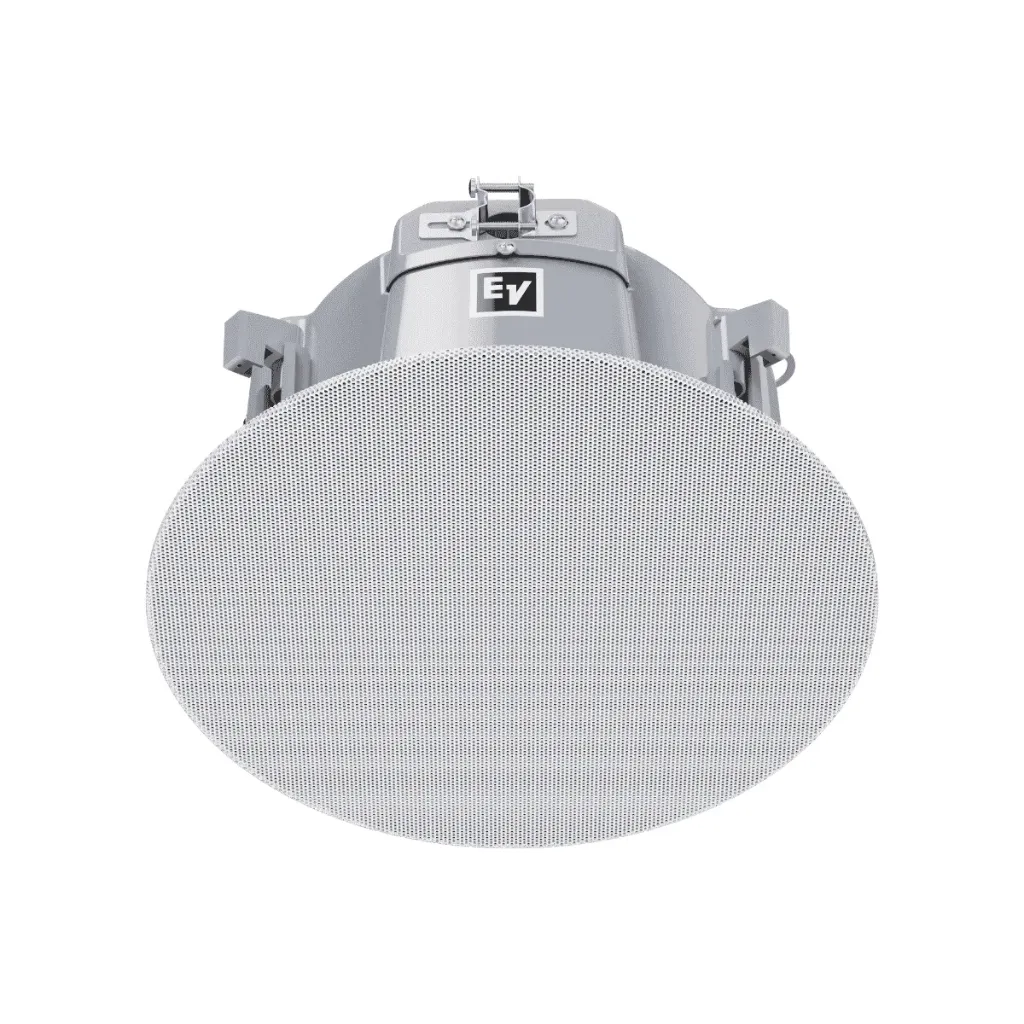

Electro-Voice EVID-EC6.2 Ceiling Speaker
The Electro-Voice EVID-EC6.2 is a complete 6.5-inch coaxial two-way loudspeaker engineered for excellent sound quality, outstanding reliability, and first-class aesthetics. Perfect for commercial audio installations, it delivers full-range sound while blending seamlessly into any ceiling.
Available in white finish (RAL 9003 Signal White), with customized colors available on request.
Electro-Voice EVID-EC6.2
Everything you need to know about this 6.5" ceiling subwoofer before specifying it for your project.
It delivers full-range sound with a two-way coaxial design, covering 80Hz to 20,000Hz at up to 116dB peak with 110° conical coverage — suited for background music and paging where broader coverage than a 3" or 4" model is needed. Supplied and sold in pairs.

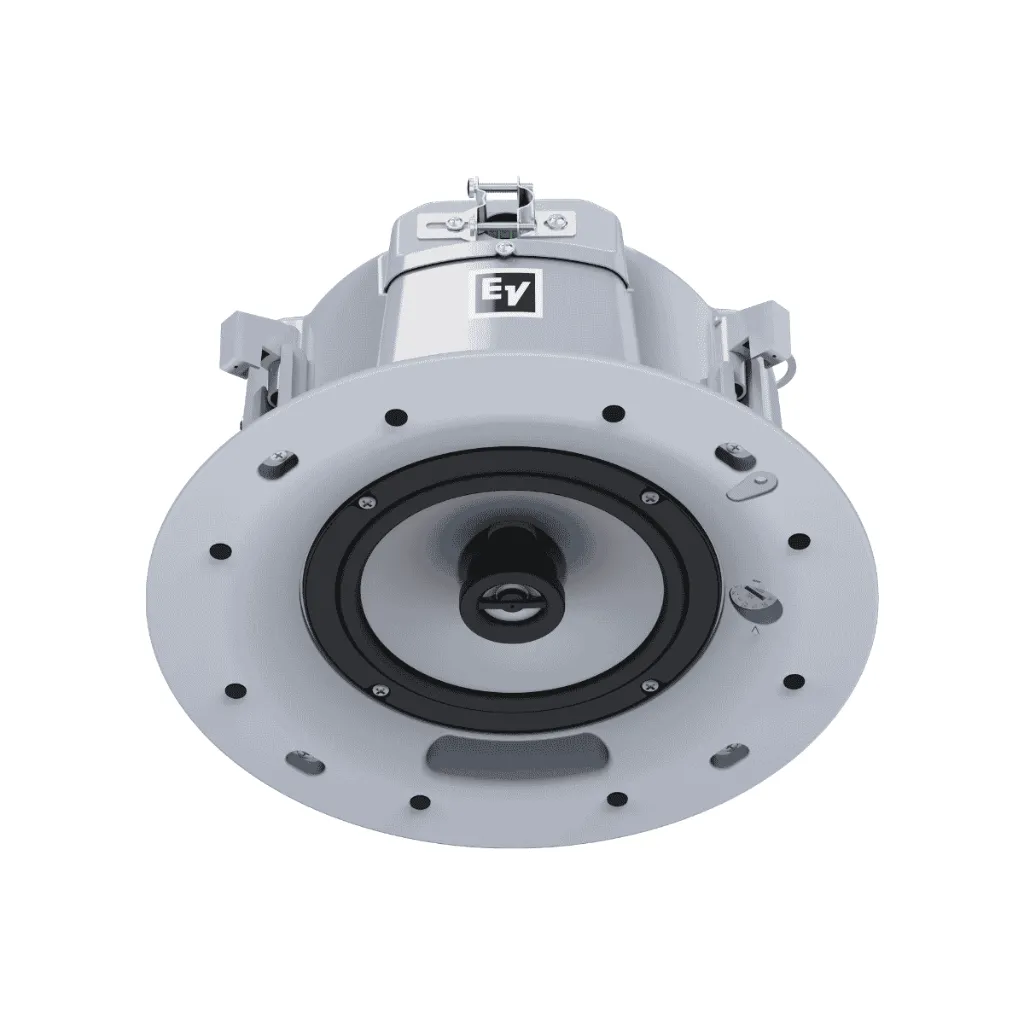

An internal transformer offers selectable taps of 1.88W (70V only), 3.75W, 7.5W, 15W and 30W, with an 8-ohm bypass for low-impedance systems. The tap is set by a switch on the front baffle, so power can be adjusted after installation without removing the unit.
The included tile rail, C-ring, and mounting ring make fitting quick and secure in drop ceilings 0.5" to 1.5" thick. The bezel-less design with magnetic grille sits flush for a clean finish, and UL 2043 certification allows installation in air-handling plenum spaces.
Each pair ships with 2 ceiling loudspeakers, 2 magnetic grilles, 4 ceiling tile rails, 2 C-rings, 4 screws, a cutout template, 2 paint covers, and a quick installation guide.
Electronic Security Company is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. We supply, design and install distributed ceiling audio for offices, hotels, retail and auditoriums, with genuine warranty support and after-sales service nationwide.
Premium 6.5-Inch Coaxial Ceiling Speaker
Complete two-way coaxial ceiling speaker delivering excellent sound quality, reliability, and first-class aesthetics. Sold as a pair — built for commercial audio systems.
SPL & Frequency Response
Range: 80 Hz – 20,000 Hz
Max SPL (Continuous): 110 dB
Max SPL (Peak): 116 dB
Sensitivity (1 W/1 m): 92 dB
Coverage Angle: 110° conical
Bezel-Less Mounting System
The bezel-less design with easy-attach magnetic grille allows fast, secure installation while keeping a clean, near-invisible ceiling finish.
Two-Way Coaxial Design for Balanced Coverage
Its two-way coaxial design improves off-axis response and delivers consistent 110° coverage across the room.
Flexible Power Options
Selectable transformer taps: 1.88, 3.75, 7.5, 15, 30 W. Works with 70-V, 100-V lines, or 8-ohm bypass via a front baffle switch.
Durable Construction & Elegant Finish
Grille: Semi-gloss white powder-coated steel (custom colors available).
Baffle: UL 94V-0 rated ABS, fire-rated.
Rear Enclosure: Heavy-gauge coated steel.
Easy Connectivity

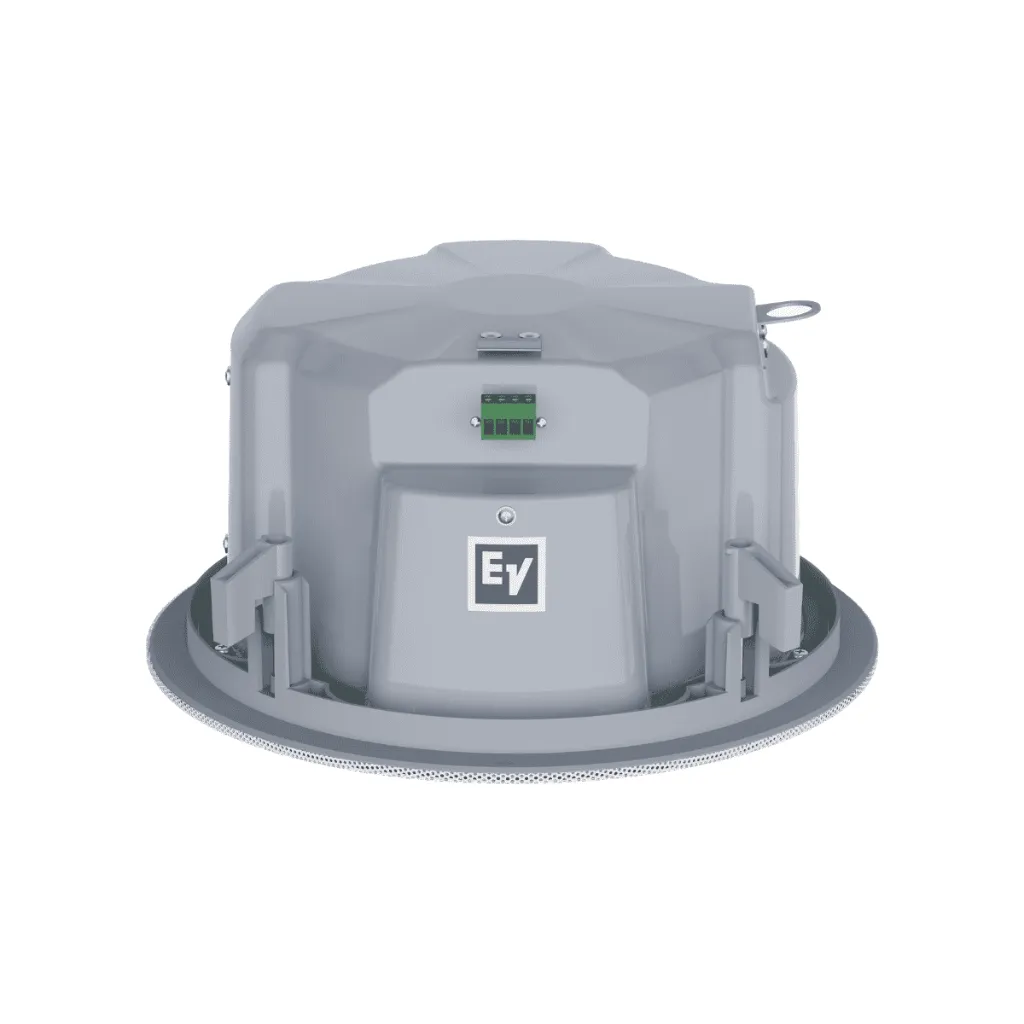

Side terminal-cover with 4-pin Euroblock connector supports 12-gauge wiring and pass-through to additional speakers.
Safe Ceiling Installation
Includes mounting ring, tile bridge, tile rail, and C-ring for secure suspension in drop ceilings 0.5"–1.5" thick.
Complete System Integration
Part of the EVID series, integrates with other EVID surface-mount and in-wall speakers for a complete audio solution.
Technical Specifications
| Specification | Value |
|---|---|
| Product | EVID-EC6.2 Ceiling Speaker 6.5" 70/100V White |
| LF Transducer Size | 6.5 in |
| HF Transducer Size | 1 in |
| Frequency Range (-10 dB) | 80 Hz – 20,000 Hz |
| Coverage Angle (Conical) | 110° |
| Recommended High Pass | 70 Hz |
Electrical Specifications
| Specification | Value |
|---|---|
| Maximum SPL (Continuous) | 110 dB |
| Maximum SPL (Peak) | 116 dB |
| Sensitivity (1 W, 1 m) | 92 dB SPL (1 W, 1 m) |
| Power Handling (Continuous) | 60 W |
| Power Handling (Peak) | 240 W |
| Long Term Power Handling (Continuous) | 40 W |
| Long Term Power Handling (Peak) | 160 W |
| Nominal Impedance (Low Z) | 8 Ω |
| Transformer Taps – 70 V Line | 30 W; 15 W; 7.5 W; 3.75 W; 1.88 W |
| Transformer Taps – 100 V Line | 30 W; 15 W; 7.5 W; 3.75 W |
| Connector Type | 4-pin Euroblock – Input + Pass Through |
| Wire Size | 12 AWG (maximum) |
| Wire Diameter | 3.3 mm² (maximum) |
Mechanical Specifications
| Specification | Value |
|---|---|
| Material | Steel |
| Grille Material | Powder Coated Steel |
| Color | White; Customized Colors |
| Color (RAL) | RAL 9003 Signal White |
| Mounting Cutout | 10.70 in / 272 mm |
| Dimensions (Ø × D) | 11.9 in × 6.1 in / 302 mm × 153.8 mm |
| Mounting Depth | 5.9 in / 149 mm |
| Ceiling Thickness | 0.5 in – 1.5 in / 12.5 mm – 38 mm |
| Weight | 7.90 lb / 3.60 kg |
| Shipping Weight | 21.40 lb / 9.70 kg |
Environmental Specifications
| Specification | Value |
|---|---|
| IP Rating | IP34 |
| Weatherization | Indoor |
| Operating Temperature | 32 °F – 122 °F / 0 °C – 50 °C |
Safety & Compliance
| Specification | Value |
|---|---|
| Safety Agency Ratings | UL 1480A |
| Air-Handling Spaces | Safe for use per UL 2043 |
| CSA Certification | CSA C22.2 No. 205 |
| IEC Standard | IEC 62368-1 |
