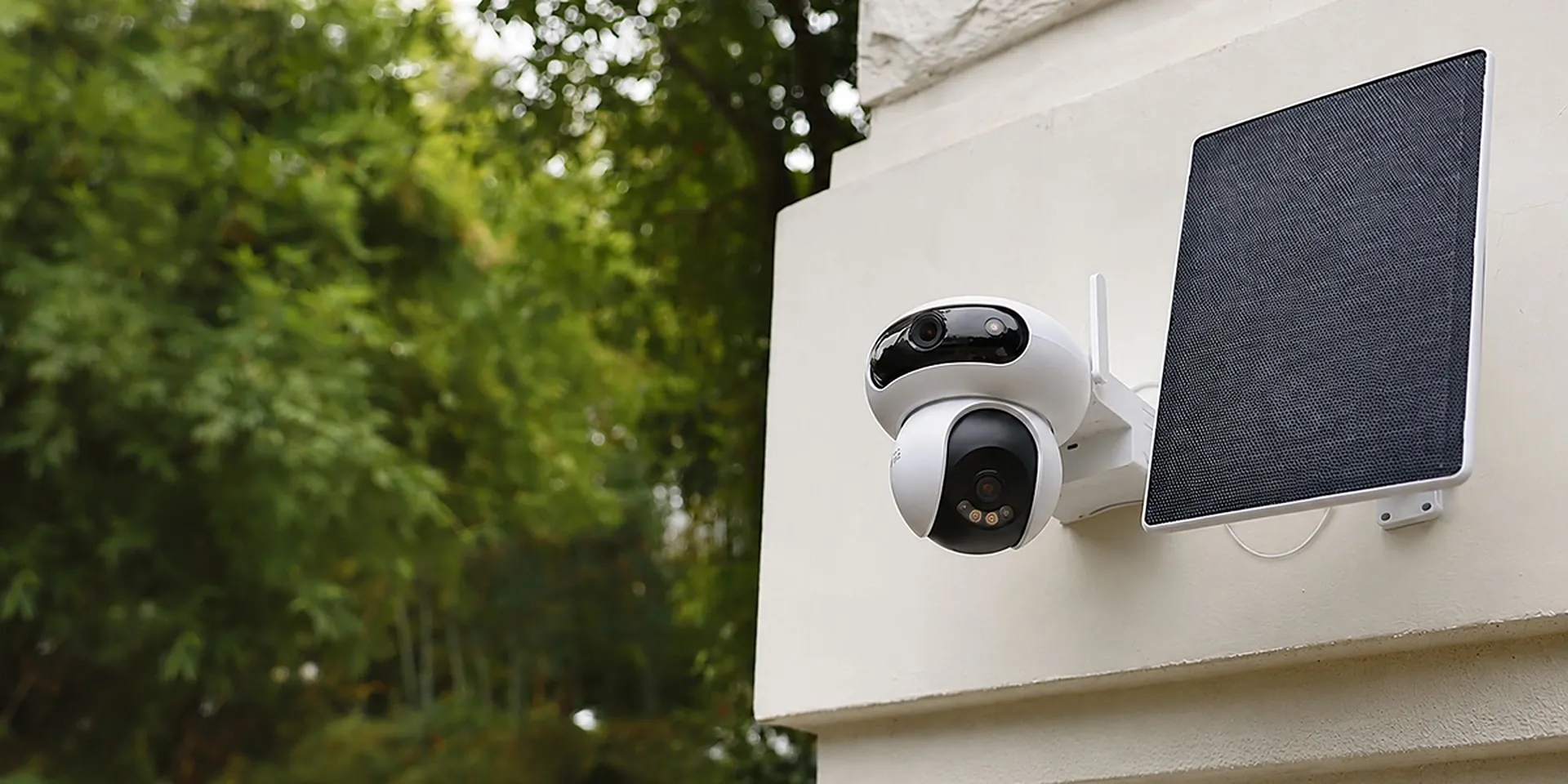

HB90 Dual Kit
2K+ & 2K+Dual‑Lens All‑Day Recording Wi‑Fi Camera
+ Solar Panel 8W
HB90 Dual Kit
2K+ & 2K+Dual‑Lens All‑Day Recording Wi‑Fi Camera
+ Solar Panel 8W
HB90 Dual Kit
Active Defense / Motion Detection
AI-Powered Human / Vehicle Shape Detection, Dual Rotations for Ultra-Flexible Vision, Active Defense with Siren and Strobe Light.Active Defense with Siren & Strobe Light
Color Night Vision
Night is now bright and colorful.The improved lens with the large F1.2 aperture captures more light and thus enables long-range color night vision of up to 35 meters. What’s better, you can choose between the color mode or the infrared mode as you’d like.
Protection
Weatherproof Design.With a robust weatherproof design, the HB90 Dual Kit ensures continuous operation, making it your reliable partner in all weather scenarios.
Now, EZVIZ takes outdoor monitoring further with the HB90 Dual Kit — a dual-lens 2K+ security camera built for users who demand clearer details, broader coverage, and dependable protection around the clock. Combining intelligent AI detection, advanced tracking, and solar-powered convenience, it delivers a smarter and more flexible approach to home and property security.
FAQs About the Ezviz HB90 Dual Kit
Everything you need to know about the Ezviz HB90 Dual Kit before specifying it.
The HB90 Dual Kit combines two 2K+ lenses in one camera, allowing you to monitor two areas at the same time. Its dual-lens design, smart tracking, solar charging and AOV 2.0 technology provide broader and more intelligent protection from a single device.
Yes. The HB90 Dual uses two independent 2K+ lenses, allowing one lens to provide a wide-angle view while the other focuses on a different area or provides a closer view.
Yes. Both the upper and lower cameras use 4MP image sensors and support 2K+ resolution, allowing you to capture detailed footage from both viewing perspectives.
Electronic Security Company (ESCO) supplies the EZVIZ HB90 Dual Kit in Pakistan, offering genuine EZVIZ security solutions for homes, businesses, commercial properties and outdoor surveillance applications. We provide product guidance, professional installation, warranty support and after-sales service nationwide.
| Camera | |
|---|---|
| Image Sensor | 1/3” 4-Megapixel Progressive Scan CMOS Sensor |
| Shutter Speed | Self-adaptive shutter |
| Lens | Top Lens: 2.8mm @ F1.2, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.2, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28° |
| PT Angle | Top Lens: Pan: 220°, Tilt: 10° Bottom Lens: Pan: 324°, Tilt: 90° |
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON ), 0 Lux with IR (* data is obtained from EZVIZ laboratories) |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| Night Vision Distance | 35 m |
| Video & Audio | |
| Max Resolution | 2K+ (2560 × 1440) |
| Frame Rate | Max. 15fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; HD; Standard; Adaptive bit rate |
| Audio Bit Rate | Self-adaptive |
| Max. Bitrate | 2 Mbps (Total) |
| Network | |
| Bluetooth | Supports |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n , 802.11ax |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK / WPA2-PSK, WPA3-Personal |
| Transmission Rate | 11b: 11Mbps,11g: 54Mbps,11n: 72Mbps, 11ax: 114Mbps |
| Wi-Fi Pairing | AP pairing |
| Minimum Network Requirement | 4 Mbps |
| Function | |
| Smart Alarm | AI-Powered Human Shape Detection AI-Powered Vehicle Shape Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -20°C to 50°C ( -4°F to 122 °F ) Humidity 95% or less (non-condensing) |
| Battery Capacity | 10,400 mAh |
| IP Grade | IP65 |
| Power Supply | DC 5 V / 2 A (Adapter needs to be purchased separately) |
| Power Consumption | Max. 10 W |
| Specifications | |
| Model | CS-PSP8-R100-3M |
| Performance Parameter | |
| Power Voltage | 5.4 V ± 5% |
| Power Current | 1.48 A ± 5% |
| Open Circuit Voltage | 6.8 V ± 5% |
| Short Circuit Current | 1.64 A ± 5% |
| Max. Power | 8 W ± 5% |
| Interface | Type-C |
| Solar Cell Efficiency | 0.235 |
| Operating Conditions | -20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing) |
| IP Grade | IP65 |
| Solar Cell Type | Monocrystalline solar cells |
| Power Cable Length | 3 meter |
| General | |
| Product Dimensions | HB90 Dual: 135 × 136.5 × 229.5 mm (5.31 × 5.374× 9.04 inch） Solar Panel 8W: 267.3 × 186.5 × 17.5 mm (10.45 × 7.49 × 0.61 inch） |
| Packaging Dimensions | 300 × 204 × 175 mm (11.81 × 8.03 × 6.89 inch） |
| Net Weight | HB90 Dual: 890 g (31.39 oz） Solar Panel 8W: 428 g (15.09 oz) |
| Weight with Package | 1930 g (68.08 oz) |
| Certifications | |
| Certifications | CE / REACH / WEEE / RoHS |
