H90 Dual 2K+
Dual-Lens Pan & Tilt Wi-Fi Camera
Pan & Tilt Dual Lens Wi-Fi Camera
H.265 Video Compression
Save money on storage and bandwidth.Enjoy efficient video storage with lower bandwidth consumption and longer recording time.
Night Vision
Two Way Talk
Stay connected and respond instantly through the EZVIZ app.
Protection
Reliable protection against rain, dust, and everyday outdoor exposure.
Motion Detection
FAQs About the Ezviz H90 Dual 2K⁺
Everything you need to know about the Ezviz H90 Dual 2K⁺ before specifying it.

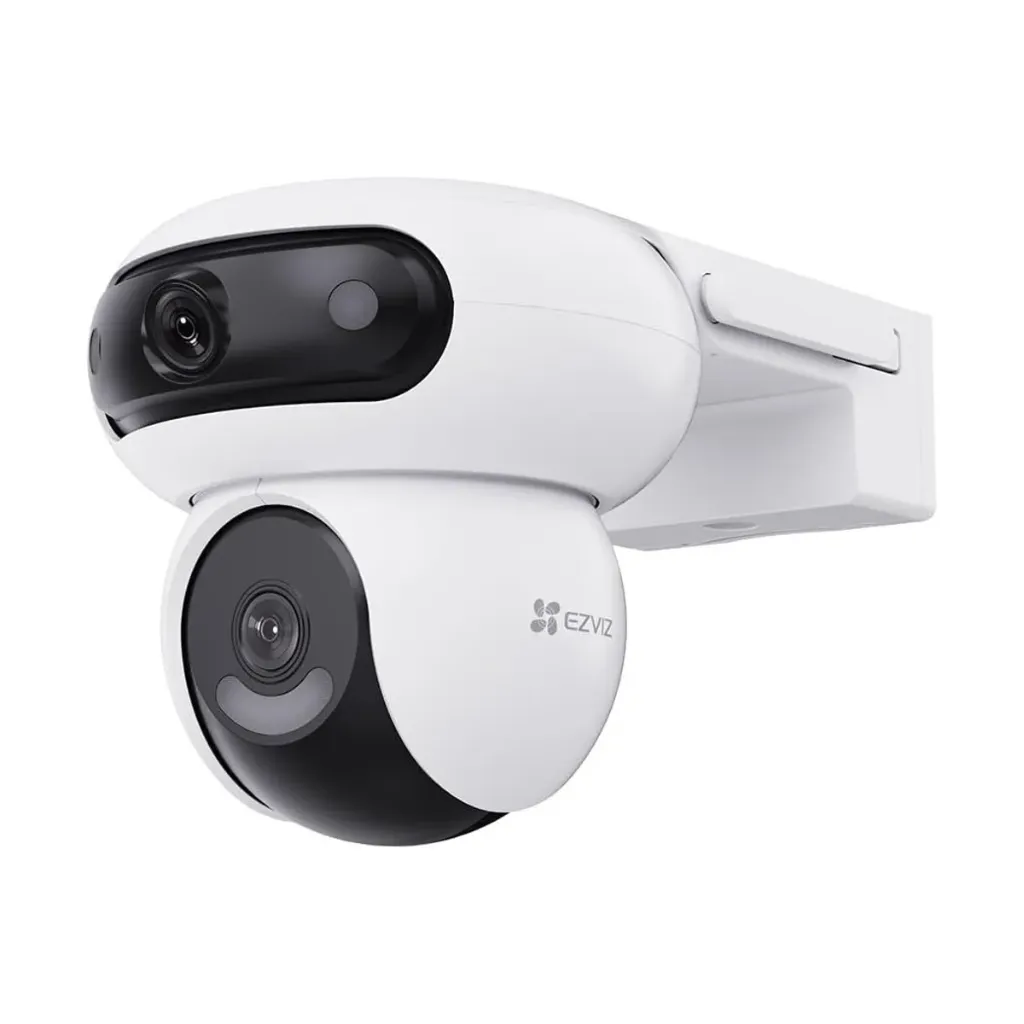

It has two rotating 2K⁺ (4MP) lenses in one housing. The top lens pans 220° with an ultra-wide 110° view, while the bottom lens pans 324° and tilts 90°, so one camera covers an area that would normally need two.
Yes. When the top lens detects a person, the bottom lens turns to follow them. Both lenses recognize human and vehicle shapes, with no subscription fee.
Up to 40 m in full color when both lenses face the same way, using an F1.6 lens and four spotlights. You can also switch to black-and-white infrared, or smart mode, which turns the lights on only when motion is detected.
Yes. It sounds a loud siren and flashes its spotlights when someone is detected. You can also talk through two-way audio or set a 10-second custom voice alert.
Both share the same housing, dual rotating lenses, smart tracking, color night vision and active defense. The only difference is resolution: the 2K⁺ model has two 4MP (2560 × 1440) lenses, while the 5MP+5MP model has two 5MP lenses for sharper detail when you zoom in.
Marketed As | Megapixels | Resolution |
|---|---|---|
1080p / Full HD | 2 MP | 1920×1080 |
2K | 3 MP | 2304×1296 |
2K+ / QHD | 4 MP | 2560×1440 |
3K / 2K+ | 5 MP | 2880×1620 |
4K / UHD | 8 MP | 3840×2160 |
Electronic Security Company (ESCO) supplies genuine EZVIZ security solutions in Pakistan, including the EZVIZ H90 Dual 2K⁺ outdoor Wi-Fi camera. We provide product guidance, professional installation, warranty support, and nationwide after-sales service.
| Camera | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | Top Lens: 2.8mm @ F1.6, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.6, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28° |
| PT Angle | Top Lens: Pan: 220°, Tilt: 10° (manual adjustment for vertical angle ) Bottom Lens: Pan: 324°, Tilt: 90° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| IR Night Vision | 30 m (98 ft) |
| Color Night Vision | Up to 40 m (131 ft) when two lenses point in the same direction |
| Video & Audio | |
| Max Resolution | 2K+ (2560 × 1440) |
| Frame Rate | Self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Quad HD; Full HD; Standard adaptive bit rate |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Functions | |
| Smart Alarm | AI-powered human shape detection AI-powered vehicle shape detection Motion detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| General | |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | IP65 + 2h rainstorm |
| Power Consumption | MAX. 18W |
| Dimensions | 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch) |
| Packaging Dimensions | 255 × 176 × 194 mm (10.04 × 6.93 × 7.64 inch) |
| Weight | Net weight: 723 g (25.51 oz) With Package: 1203 g (42.43 oz) |
| Certifications | |
| Certifications | CE / UL / WEEE / RoHS / REACH |
