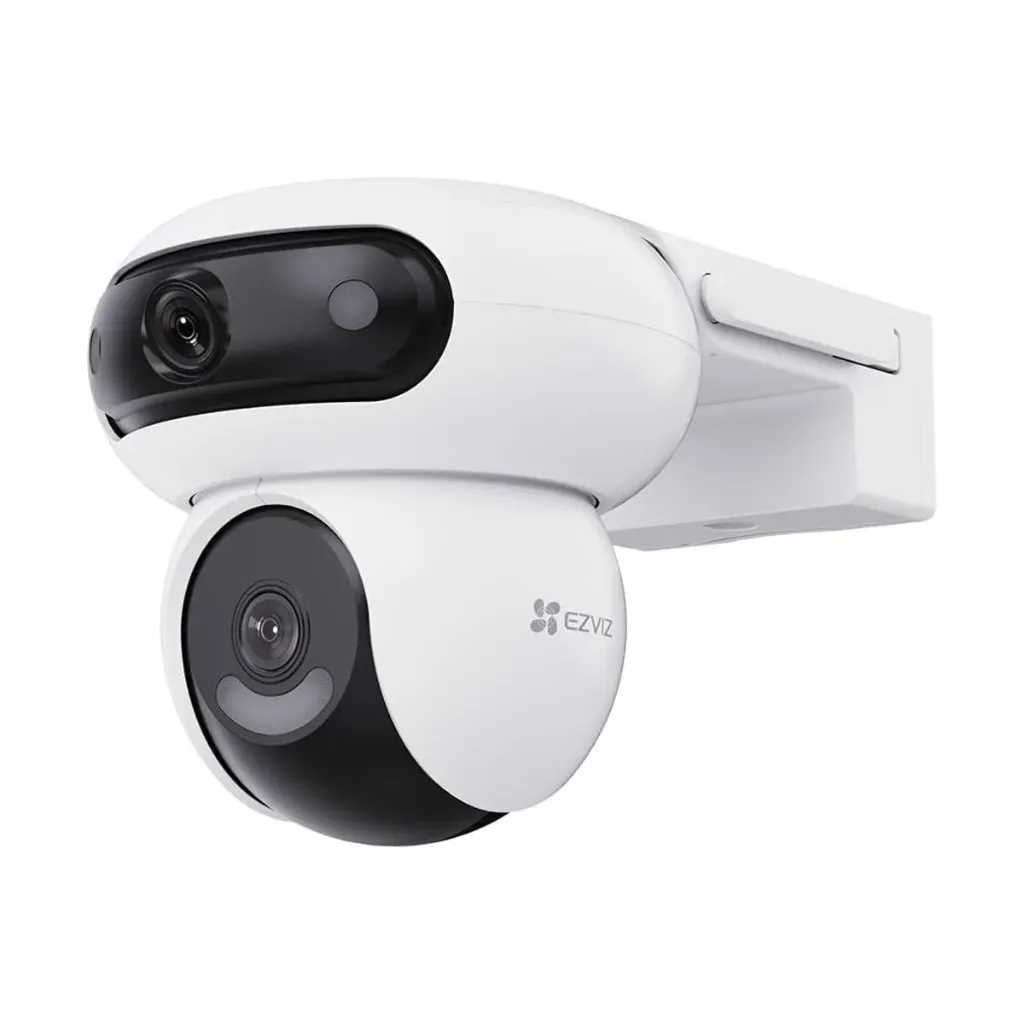

H90 Dual
5MP & 5MPDual-Lens Pan & Tilt Wi-Fi Camera
H90 Dual
5MP & 5MPDual-Lens Pan & Tilt Wi-Fi Camera
Key specs
- Two 5MP lenses (3K, 2880 × 1620): 2.8 mm wide top, 6 mm pan & tilt bottom
- Co-detection: one lens spots, the other follows
- Bottom lens 324° pan, 90° tilt for 360° coverage
- AI human and vehicle detection, two patrol modes
- Colour night vision; IR up to 30 m
- Active defense: siren and strobe light
- Two-way talk
- 2.4 GHz Wi-Fi with dual antennas, plus Ethernet port
- microSD up to 512 GB; 12 V 1.5 A
|
Camera |
|
|
Image sensor |
1/3” Progressive Scan CMOS |
|
Shutter Speed |
Self-adaptive shutter |
|
Lens |
Top Lens: 2.8mm @ F1.6, Field of view: Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.6, Field of view: Diagonal 60°, Horizontal 52°, Vertical 28° |
|
PT Angle |
Pan: 324°, Tilt: 90° |
|
Minimum Illumination |
0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (* data is obtained from EZVIZ laboratories) |
|
Lens Mount |
M12 |
|
Day & Night |
IR-cut filter with auto switch |
|
DNR |
3D DNR |
|
WDR |
Digital WDR |
|
Black & White Night Vision |
30 m (98 ft) |
|
Video & Audio |
|
|
Max. Resolution |
2880 × 1620 |
|
Frame Rate |
Max:15fps; Self-Adaptive during network transmission |
|
Video Compression |
H.265 / H.264 |
|
H.265 Type |
Main Profile |
|
Video Bit Rate |
Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
|
Audio Bit Rate |
Self-Adaptive |
|
Network |
|
|
Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
|
Frequency Range |
2.4 GHz ~ 2.4835 GHz |
|
Channel Bandwidth |
Support 20 MHz |
|
Security |
WPA-PSK / WPA2-PSK |
|
Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
|
Wi-Fi Pairing |
AP pairing |
|
Protocol |
EZVIZ Cloud Proprietary Protocol |
|
Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
|
Wired Network |
RJ45 × 1(10 M / 100 M adaptive Ethernet port) |
|
Function |
|
|
Smart Alarm |
AI-Powered Human / Vehicle Shape Detection /Motion Detection |
|
Auto Tracking |
Supports |
|
Customized Alert Area |
Supports |
|
Two-way Talk |
Supports |
|
Preset Locations |
Supports |
|
General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
|
Storage |
|
|
Local Storage |
Supports microSD card (max. 512 GB) |
|
Cloud Storage |
EZVIZ Cloud Storage |
|
General |
|
|
Operating Conditions |
-30°C to 50°C ( -22°F to 122 °F) Humidity 95% or less (non-condensing) |
|
IP Grade |
Weatherproof Design |
|
Power Supply |
DC 12V / 1.5A |
|
Power Consumption |
MAX. 12 W |
|
Dimensions |
224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch) |
|
Packaging Dimensions |
255 × 176 × 194 mm (10.04 × 6.93 × 7.64 inch) |
|
Weight |
Net weight: 723 g (25.51 oz) With Package: 1203 g (42.43 oz) |
Know before you buy
Quick answers about the H90 Dual (5MP+5MP), and how it compares.
What makes the H90 Dual different from a single-lens camera?
Two 5MP lenses that turn separately: the top lens pans 220° with an ultra-wide view, the bottom lens pans 324° and tilts 90°. They can watch two directions at once, or the bottom lens can follow a person or vehicle the top lens spots. One camera covers what would normally need two.
How far can it see at night?
Up to 40 m in colour when both lenses face the same way, with four spotlights. You can also choose black-and-white IR, or smart mode, which lights up only when motion is detected.
H90 Dual 5MP+5MP or H90 Dual 2K⁺?
Same camera; the 2K⁺ model has 4MP lenses and costs less. Take the 5MP+5MP for more detail when you zoom into recordings.
H90 Dual 5MP+5MP or H9c Dual 3K?
Both have two 5MP lenses. On the H90 Dual each lens turns on its own, so it can watch two directions, with colour night vision up to 40 m. The H9c Dual 3K pairs a wide view with a close-up that follows people and vehicles, and adds 5 GHz Wi-Fi.
How do the EZVIZ dual-lens cameras compare?
| Model | Lenses | Night | Best for |
|---|---|---|---|
| C8PF | 2MP wide + 2MP telephoto, 8× zoom | IR 30 m | Details far away |
| H9c Dual 2K | 3MP wide + 3MP close-up | Colour up to 40 m | Wide view and close-up, 2.4 / 5 GHz Wi-Fi |
| H9c Dual 3K | 5MP wide + 5MP close-up | Colour, IR 30 m | Sharp detail, 2.4 / 5 GHz Wi-Fi |
| H9c Dual 3K 4G | 5MP wide + 5MP close-up, 4G SIM | Colour up to 40 m | No internet at the spot |
| H90 Dual 2K⁺ | 4MP + 4MP, each lens turns | Colour up to 40 m | Two directions from one camera |
| H90 Dual 5MP+5MP | 5MP + 5MP, each lens turns | Colour up to 40 m | The same, sharper |
| H80x Dual | 8MP + low-light lens | ColorFULL | Colour at night without lights |
| HB90 Dual kit | 4MP + 4MP, battery and solar | Colour up to 35 m | No power at the spot |
What do 2K, 3K and 4K mean in megapixels?
Brands use 2K, 3K and 4K loosely, so compare cameras by megapixels:
| Megapixels | Sold as | Pixels |
|---|---|---|
| 2MP | 1080p, Full HD | 1920 × 1080 |
| 3MP | 2K | 2304 × 1296 |
| 4MP | 2K⁺, QHD | 2560 × 1440 |
| 5MP | 3K | 2880 × 1620 |
| 8MP | 4K, UHD | 3840 × 2160 |
More megapixels keep faces and number plates readable when you zoom into a recording. For a room 2MP to 3MP is enough; for a gate, driveway or shop front, 4MP and above is worth it.
How does it record, and do I need a subscription?
Video is saved on a microSD card in the camera (not included). When the card is full, the oldest video is overwritten automatically. ESCO stocks genuine EZVIZ cards in 64 GB and 128 GB.
No subscription is needed: live view, playback, alerts and AI detection all work in the free EZVIZ app. EZVIZ CloudPlay is an optional paid plan that also keeps alert clips online, so they are safe even if the camera or card is stolen.
What does it need to connect, and does it keep recording if the internet goes down?
It connects to your home Wi-Fi (2.4 GHz on most models), and many models also have an Ethernet port for a network cable where Wi-Fi is weak. Check the Wi-Fi signal on your phone at the mounting spot first; a Wi-Fi extender or a cable fixes a weak spot.
If the internet goes down, the camera keeps recording to its microSD card. You only lose live view and alerts on your phone until the connection is back.
Who sells EZVIZ in Pakistan, and what warranty and support do I get?
Electronic Security Company (ESCO) is the authorized national distributor of EZVIZ in Pakistan, so every unit is genuine and comes with a 1-year warranty. Warranty is carry-in: bring the unit to an ESCO office or the dealer you bought from, and after inspection it is repaired or replaced.
Order here and delivery is free anywhere in Pakistan. We keep stock in Karachi, Lahore, Islamabad and Rawalpindi, and our dealer network covers almost every other city. EZVIZ products are made to set up yourself in the EZVIZ app; if you get stuck, our helpdesk helps on WhatsApp, phone and email, 10am to 6pm. Use Add to Cart, or Request a Quote for several units.
