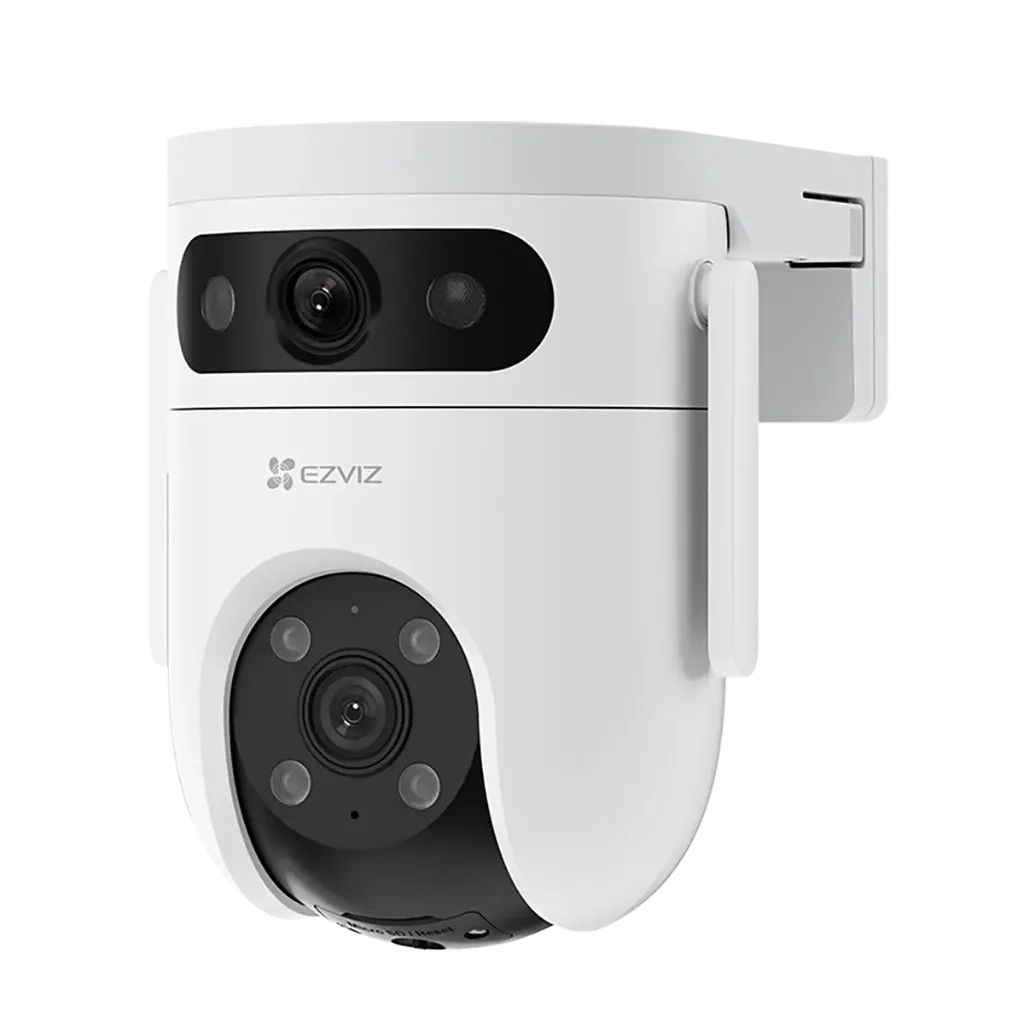

H9c Dual
2K & 2KDual-Lens Pan & Tilt Wi-Fi Camera
H9c Dual
2K & 2KDual-Lens Pan & Tilt Wi-Fi Camera
H9c Dual
Dual-Lens Pan & Tilt Wi-Fi Camera
2K & 2K Dual Lenses
Clear and detailed 2K video from both lenses, giving you a wider view and sharper close-up details. The dual-lens design combines a wide-angle lens for full-scene coverage with a pan-and-tilt lens for focused views, helping you see more with a single camera.
Active Defense
Stay protected with built-in siren and strobe light alerts that can help deter unwanted visitors. When suspicious activity is detected, the camera can trigger visual and audible warnings for added security.
Two-Way Talk
Stay connected with two-way talk, allowing you to listen and speak through the camera in real time. Communicate easily with family, visitors, or anyone near the camera from wherever you are.
The H9c Dual 2K features Co-Detection technology for automatic smart tracking, AI-powered human and vehicle detection, and intelligent patrol modes to help reduce blind spots. Color night vision, two-way talk, and active defense with a siren and strobe light provide added protection around the clock.
Key specs
- Two 3MP (2K) lenses, 2304 × 1296, H.265
- Wide 2.8 mm lens, manual pan up to 240°
- Close-up 6 mm lens, pan 350°, tilt 80°
- AI person and vehicle detection
- Co-detection auto tracking, presets, patrol
- Colour night vision up to 40 m, IR 30 m
- Active Defense, two-way talk
- Dual-band Wi-Fi (2.4 and 5 GHz), Ethernet port
- microSD up to 512 GB (not included), CloudPlay
- Weatherproof, -30°C to 50°C
- DC 12 V 1.5 A, max 18 W
| Camera | |
|---|---|
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | Top lens: 2.8 mm @ F1.6, viewing angle: diagonal 110°, horizontal 96°, vertical 54°, Bottom lens: 6 mm @ F1.6, viewing angle: diagonal 60°, horizontal 52°, vertical 28° |
| PT Angle | Top Lens: 0~240° Pan (manual adjustment) & 15° Preset fixed tilt angle Bottom Lens: Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
| Color Night Vision | Up to 40 m |
| Number of Lights | Top Lens:2 spotlights and 2 IR lights Bottom Lens: 2 spotlights and 2 IR lights |
| Video & Audio | |
| Max Resolution | 2K (2304 × 1296) |
| Frame Rate | Self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11a, 802.11b, 802.11g, 802. 11n, 802.11ac, |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz, 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz |
| Channel Bandwidth | Supports 20 MHz @ 2.4G Supports 20 / 40 / 80 MHz @ 5G |
| Security | WPA-PSK/WPA2-PSK |
| Transmission Rate | 1b: 11 Mbps, 11a/g: 54 Mbps, 11n: 150 Mbps, 11ac: 433 Mbps, 11ax: 600 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Functions | |
| Smart Alarm | AI-powered human / vehicle shape detection; Motion detection |
| PT Function | Co-detection for auto tracking / One-tap control for linked view change / Preset points / Patrol mode |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Active Defense | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Storage Saving Mode | Supports |
| Local Storage | Supports microSD card (Max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay Storage (Subscription required) |
| General | |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V / 1.5A |
| Power Consumption | Max. 18 W |
| Dimensions | 147 × 116 × 142 mm (5.71 × 4.57 × 5.59 inch) |
| Packaging Dimensions | 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch) |
| Weight | Net Weight: 626 (22.08 oz)With Package: 960 g(33.86 oz) |
| Certifications | |
| Certifications | CE / UL / WEEE / RoHS / REACH |
Know before you buy
Quick answers about the H9c Dual 2K, and how it compares.
How do the two lenses work together?
The top 2.8 mm lens shows the wide view; you aim it by hand (up to 240° left to right) when mounting. The bottom 6 mm lens pans 350° and tilts 80° by itself. When a person or vehicle is spotted, the close-up lens follows them automatically (co-detection), and you can tap any spot in the wide view to swing the close-up there. Save preset views and let it patrol between them. Both lenses are 3MP (2K).
H9c Dual 2K or H9c Dual 3K?
Both pair a wide view with a close-up that follows people and vehicles. The H9c Dual 3K has sharper 5MP lenses. The H9c Dual 2K has 3MP lenses and sees in colour up to 40 m.
H9c Dual 2K or H90 Dual 2K⁺?
The H90 Dual 2K⁺ has two 4MP lenses that each turn, to watch two directions from one camera. The H9c Dual 2K keeps one lens on the wide view and uses the other to follow and close in on people and vehicles.
Does it scare off intruders?
Yes. With Active Defense it warns people it detects, and its spotlights switch on for colour night vision up to 40 m. Talk to visitors live through the EZVIZ app with two-way talk.
How do the EZVIZ dual-lens cameras compare?
| Model | Lenses | Night | Best for |
|---|---|---|---|
| C8PF | 2MP wide + 2MP telephoto, 8× zoom | IR 30 m | Details far away |
| H9c Dual 2K | 3MP wide + 3MP close-up | Colour up to 40 m | Wide view and close-up, 2.4 / 5 GHz Wi-Fi |
| H9c Dual 3K | 5MP wide + 5MP close-up | Colour, IR 30 m | Sharp detail, 2.4 / 5 GHz Wi-Fi |
| H9c Dual 3K 4G | 5MP wide + 5MP close-up, 4G SIM | Colour up to 40 m | No internet at the spot |
| H90 Dual 2K⁺ | 4MP + 4MP, each lens turns | Colour up to 40 m | Two directions from one camera |
| H90 Dual 5MP+5MP | 5MP + 5MP, each lens turns | Colour up to 40 m | The same, sharper |
| H80x Dual | 8MP + low-light lens | ColorFULL | Colour at night without lights |
| HB90 Dual kit | 4MP + 4MP, battery and solar | Colour up to 35 m | No power at the spot |
IR, colour night vision or ColorFULL: what is the difference?
IR night vision uses invisible infrared light. It works in total darkness and reaches the furthest, but the video is black and white.
Colour night vision switches on white spotlights, usually when it detects someone, so the video is in colour and clothes, cars and faces are easier to tell apart. The sudden light also warns intruders off.
ColorFULL (H8x 2K⁺ and H80x Dual) uses a large sensor and a very bright F1.0 lens to record colour from very little light, such as a street lamp, without switching any lights on. In complete darkness it falls back to IR.
What do 2K, 3K and 4K mean in megapixels?
Brands use 2K, 3K and 4K loosely, so compare cameras by megapixels:
| Megapixels | Sold as | Pixels |
|---|---|---|
| 2MP | 1080p, Full HD | 1920 × 1080 |
| 3MP | 2K | 2304 × 1296 |
| 4MP | 2K⁺, QHD | 2560 × 1440 |
| 5MP | 3K | 2880 × 1620 |
| 8MP | 4K, UHD | 3840 × 2160 |
More megapixels keep faces and number plates readable when you zoom into a recording. For a room 2MP to 3MP is enough; for a gate, driveway or shop front, 4MP and above is worth it.
How does it record, and do I need a subscription?
Video is saved on a microSD card in the camera (not included). When the card is full, the oldest video is overwritten automatically. ESCO stocks genuine EZVIZ cards in 64 GB and 128 GB.
No subscription is needed: live view, playback, alerts and AI detection all work in the free EZVIZ app. EZVIZ CloudPlay is an optional paid plan that also keeps alert clips online, so they are safe even if the camera or card is stolen.
What does it need to connect, and does it keep recording if the internet goes down?
It connects to your home Wi-Fi (2.4 GHz on most models), and many models also have an Ethernet port for a network cable where Wi-Fi is weak. Check the Wi-Fi signal on your phone at the mounting spot first; a Wi-Fi extender or a cable fixes a weak spot.
If the internet goes down, the camera keeps recording to its microSD card. You only lose live view and alerts on your phone until the connection is back.
