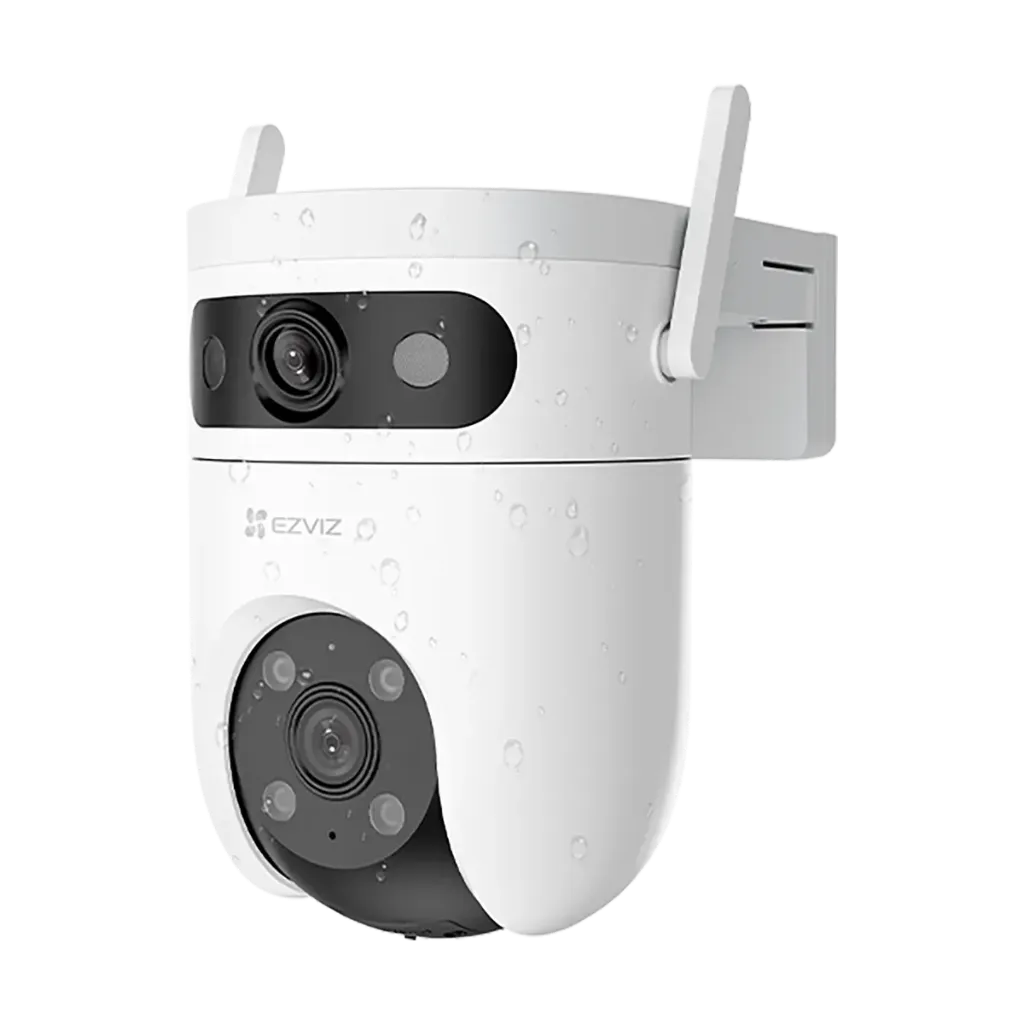

Dual Lens Pan & Tilt Wi-Fi Camera
Ezviz H9c Dual 3K & 3K Dual-Lens Pan & Tilt Wi-Fi Camera.With 360° panoramic coverage, smart tracking, and flexible viewing, the H9c Dual helps you monitor more areas with fewer blind spots.
H.265 Video Compression
Save money on storage and bandwidth.Enjoy high-quality video while using less storage space and bandwidth, helping you save storage costs and keep more recordings for longer.
Color Night Vision
Active Defense
Active Defense with Siren and Strobe Light.Stay one step ahead of unwanted visitors with a built-in siren and strobe light that can alert you to suspicious activity and help deter potential intruders.
Audio
High-quality Two way Audio to respond & warn.Communicate clearly with anyone near the camera using high-quality two-way audio. Talk to visitors, respond to family members, or warn unwanted guests in real time.
Next-level Detection
AI-Powered Human / Vehicle Shape Detection
Protection
The H9c Dual 3K & 3K has a compact design, and is weatherproof to deliver long-standing performance, even in harsh weather conditions.
Storage
Supports MicroSD Card Storage (up to 512 GB) & EZVIZ CloudPlay Storage
Two Patrol Modes
Automatic patrol modes that allow the camera to scan different areas on its own, helping provide wider coverage.
Smart integration for hands-free control
H.265 for enhanced video experience
The H.26 creates a smoother viewing experience while only using about 0% of the data storage space required by cameras with H.264.H.265 compression helps reduce file sizes compared to H.264, allowing you to store more recordings for longer without sacrificing video quality.

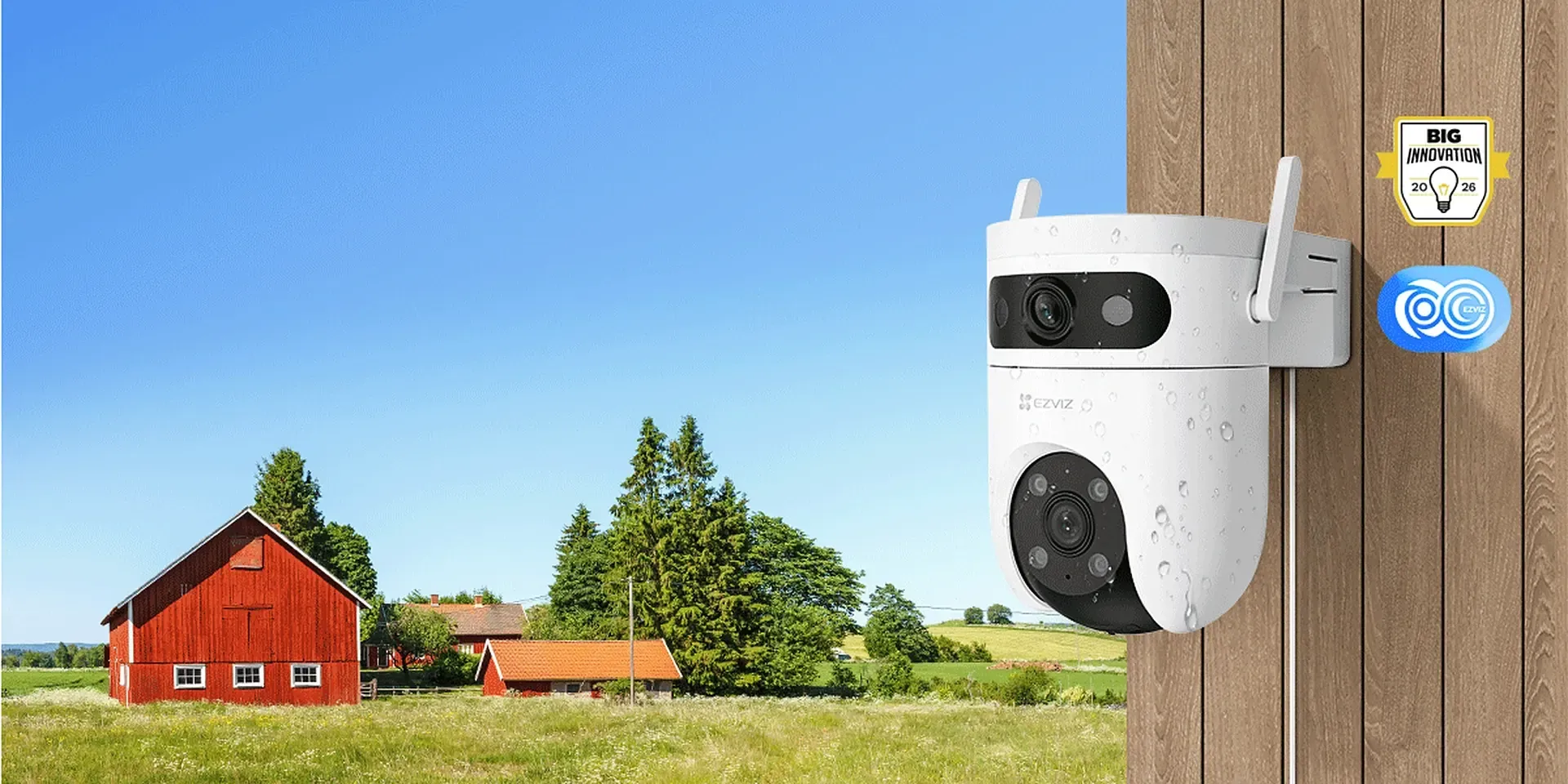

A neat design against all weathers
The H9c Dual 4G has a compact design, and is weatherproof to deliver long-standing performance, even in harsh weather conditions.The H9c Dual 4G features a compact, modern design that fits neatly into any outdoor space.It delivers reliable performance in rain, dust, heat, and other harsh outdoor environments, so you can count on continuous protection all year round.
Dual storage options for important moments
The camera automatically saves detection-triggered history videos. You can choose to secure them on a large local storage card, or simply by subscribing to the EZVIZ CloudPlay. The camera can automatically save motion-detection videos, giving you the choice to store footage locally on a microSD card or securely back it up to the EZVIZ CloudPlay for convenient access anytime.
Key specs
- Two 5MP (3K) lenses, 2880 × 1620, H.265
- 4G SIM, Wi-Fi 6 (2.4 and 5 GHz), Ethernet port
- Wide 2.8 mm lens, manual pan up to 240°
- Close-up 6 mm lens, pan 350°, tilt 80°
- AI person and vehicle detection
- Co-detection auto tracking, presets, patrol
- Colour night vision up to 40 m, IR 30 m
- Siren and warning light, two-way talk
- microSD up to 512 GB (not included), CloudPlay
- Weatherproof, -30°C to 50°C
- DC 12 V 1.5 A, max 18 W
| Camera | |
|---|---|
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | Top Lens: 2.8mm@ F1.6, viewing angle: Diagonal 110°, Horizontal 96°, Vertical 54°; Bottom Lens: [email protected], viewing angle: Diagonal 60°, Horizontal 52°, Vertical 28° |
| PT Angle | Top Lens:0~240°Pan (Manual adjustment) &15° Preset Fixed Tilt Angle Bottom Lens: Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Color Night Vision | Up to 40 m |
| Black & White Night Vision | 30 m/98 ft |
| Video & Audio | |
| Max. Resolution | 3K (2880 × 1620) |
| Frame Rate | Self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main profile |
| Video Bit Rate | Ultra-HD; Full HD; Standard; Adaptive bit rate |
| Audio Bit Rate | Self-adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz, 5150MHz-5250MHz, 5250MHz-5350MHz, 5470MHz-5725MHz |
| Channel Bandwidth | Support [email protected], Support 20/40/80MHz@5G |
| Security | WPA-PSK / WPA2-PSK |
| Transmission Rate | 1b: 11Mbps, 11a/g: 54Mbps, 11n:150Mbps, 11ac: 433Mbps, 11ax: 600Mbps |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1(10M / 100M Adaptive Ethernet Port) |
| 4G Frequency Bands | EU LTE-FDD:B1/B3/B5/B7/B8/B20/B28; LA LTE-FDD:B2/B3/B4/B5/B7/B8/B28/B66 |
| Function | |
| Smart Alarm | AI-powered human / vehicle shape detection, motion detection |
| PT Function | Co-detection for auto tracking / One-tap control for linked view change / preset points / patrol mode |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -30°C to 50°C ( -22°F to 122 °F ) humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof design |
| Power Supply | DC 12 V / 1.5 A |
| Power Consumption | Max. 18 W |
| Dimensions | 147 × 116 × 142 mm (5.71 × 4.57 × 5.59 inch) |
| Packaging Dimensions | 150 × 150 × 194 mm (5.90 × 5.90 × 7.64 inch) |
| Weight | Net weight: 627.3 g With package: 970.4 g |
| Certifications | |
| Certifications | CE / UL / WEEE / RoHS / REACH |
Know before you buy
Quick answers about the H9c Dual 3K 4G, and how it compares.
How does the 4G work, and does it need Wi-Fi?
No Wi-Fi needed. Put a 4G SIM with a data bundle in the camera and it connects over the mobile network, so it suits farms, building sites, warehouses and second homes with no internet. Where Wi-Fi or a network cable is available it can use those, and if Wi-Fi drops it switches to 4G automatically. It does need mains power; the 12 V adapter is in the box.
Which SIM works, and how much data does it use?
A nano SIM from any Pakistani 4G network, with a data bundle. Check the signal where the camera will go before mounting it. Alerts and short clips use little data; long live viewing uses the most. Recording to the microSD card uses no data at all.
How do the two lenses work together?
The top 2.8 mm lens shows the wide view; you aim it by hand (up to 240° left to right) when mounting. The bottom 6 mm lens pans 350° and tilts 80° by itself. When a person or vehicle is spotted, the close-up lens follows them automatically (co-detection), and you can tap any spot in the wide view to swing the close-up there. Save preset views and let it patrol between them. Both lenses are 5MP (3K).
H9c Dual 3K 4G or H9c Dual 3K?
Both pair a wide view with a 5MP close-up that follows people and vehicles. The H9c Dual 3K 4G also runs on a SIM card for places with no internet. Where you have Wi-Fi, the H9c Dual 3K does the job.
How do the EZVIZ dual-lens cameras compare?
| Model | Lenses | Night | Best for |
|---|---|---|---|
| C8PF | 2MP wide + 2MP telephoto, 8× zoom | IR 30 m | Details far away |

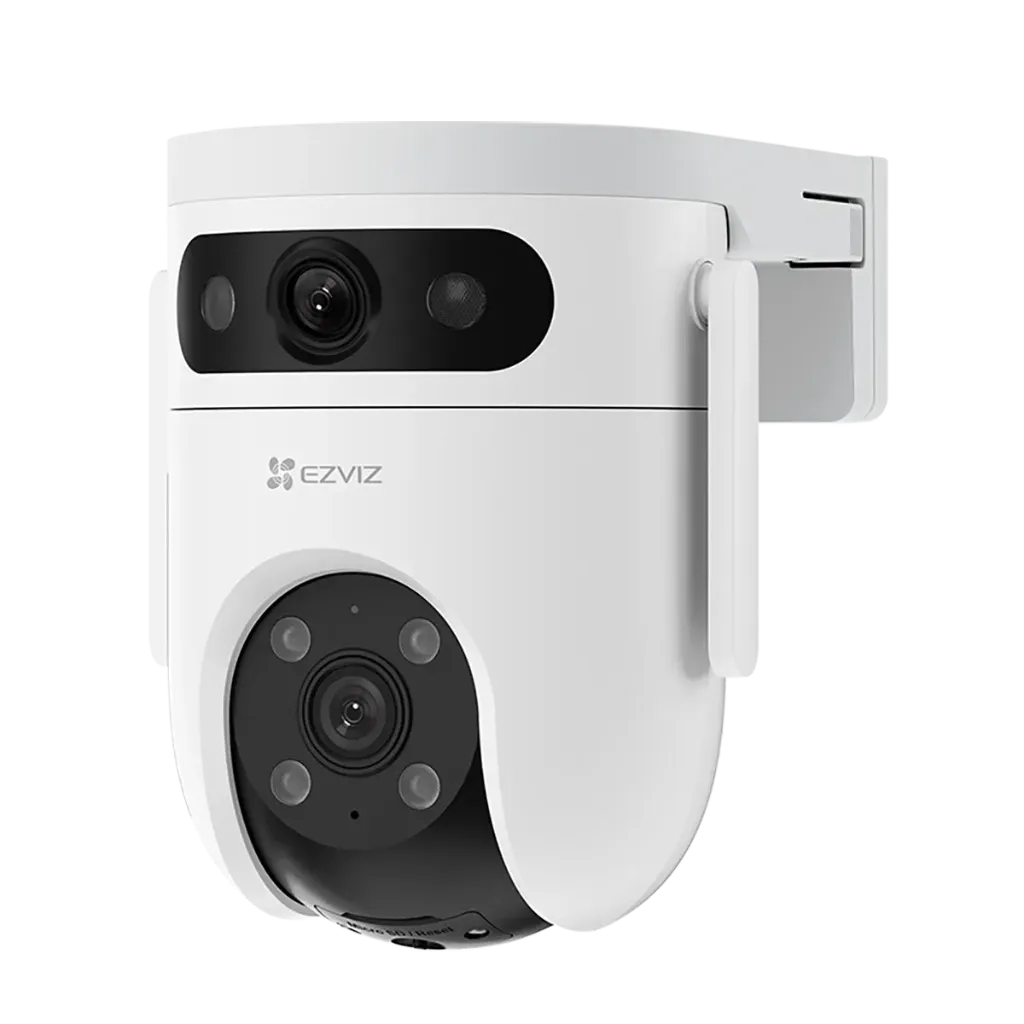

| H9c Dual 2K | 3MP wide + 3MP close-up | Colour up to 40 m | Wide view and close-up, 2.4 / 5 GHz Wi-Fi |
| H9c Dual 3K | 5MP wide + 5MP close-up | Colour, IR 30 m | Sharp detail, 2.4 / 5 GHz Wi-Fi |
| H9c Dual 3K 4G | 5MP wide + 5MP close-up, 4G SIM | Colour up to 40 m | No internet at the spot |
| H90 Dual 2K⁺ | 4MP + 4MP, each lens turns | Colour up to 40 m | Two directions from one camera |
| H90 Dual 5MP+5MP | 5MP + 5MP, each lens turns | Colour up to 40 m | The same, sharper |
| H80x Dual | 8MP + low-light lens | ColorFULL | Colour at night without lights |
| HB90 Dual kit | 4MP + 4MP, battery and solar | Colour up to 35 m | No power at the spot |
IR, colour night vision or ColorFULL: what is the difference?
IR night vision uses invisible infrared light. It works in total darkness and reaches the furthest, but the video is black and white.
Colour night vision switches on white spotlights, usually when it detects someone, so the video is in colour and clothes, cars and faces are easier to tell apart. The sudden light also warns intruders off.
ColorFULL (H8x 2K⁺ and H80x Dual) uses a large sensor and a very bright F1.0 lens to record colour from very little light, such as a street lamp, without switching any lights on. In complete darkness it falls back to IR.
Does it scare off intruders?
Yes. When it detects a person it can sound a siren and flash a warning light, and its spotlights give colour night vision up to 40 m. Talk to visitors live through the EZVIZ app with two-way talk.
What do 2K, 3K and 4K mean in megapixels?
Brands use 2K, 3K and 4K loosely, so compare cameras by megapixels:
| Megapixels | Sold as | Pixels |
|---|---|---|
| 2MP | 1080p, Full HD | 1920 × 1080 |
| 3MP | 2K | 2304 × 1296 |
| 4MP | 2K⁺, QHD | 2560 × 1440 |
| 5MP | 3K | 2880 × 1620 |
| 8MP | 4K, UHD | 3840 × 2160 |
More megapixels keep faces and number plates readable when you zoom into a recording. For a room 2MP to 3MP is enough; for a gate, driveway or shop front, 4MP and above is worth it.
How does it record, and do I need a subscription?
Video is saved on a microSD card in the camera (not included). When the card is full, the oldest video is overwritten automatically. ESCO stocks genuine EZVIZ cards in 64 GB and 128 GB.
No subscription is needed: live view, playback, alerts and AI detection all work in the free EZVIZ app. EZVIZ CloudPlay is an optional paid plan that also keeps alert clips online, so they are safe even if the camera or card is stolen.
Who sells EZVIZ in Pakistan, and what warranty and support do I get?
Electronic Security Company (ESCO) is the authorized national distributor of EZVIZ in Pakistan, so every unit is genuine and comes with a 1-year warranty. Warranty is carry-in: bring the unit to an ESCO office or the dealer you bought from, and after inspection it is repaired or replaced.
Order here and delivery is free anywhere in Pakistan. We keep stock in Karachi, Lahore, Islamabad and Rawalpindi, and our dealer network covers almost every other city. EZVIZ products are made to set up yourself in the EZVIZ app; if you get stuck, our helpdesk helps on WhatsApp, phone and email, 10am to 6pm. Use Add to Cart, or Request a Quote for several units.
