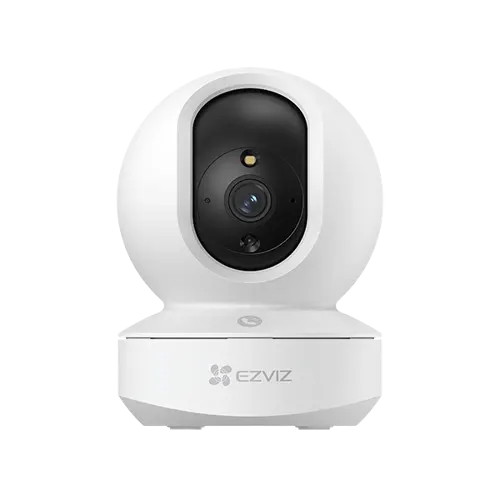

TY1 Pro
2K Type-CPan & Tilt Smart Home Camera
TY1 Pro
2K Type-CPan & Tilt Smart Home Camera
2K Resolution
The EZVIZ TY1 Pro 2K provides 2304 × 1296 resolution for clear and detailed video.It captures sharper images of people, objects, and activities for reliable indoor monitoring.
Pan & Tilt and Panoramic Coverage
The camera supports 340° horizontal and 55° vertical rotation for wide-area coverage.Its helps minimize blind spots and monitor a larger area.
Smart Color Night Vision
Smart Human Shape Detection
Patrol Mode
Two-Way Calling with Touch Button
Key specs
- 3MP (2K, 2304 × 1296), 4 mm F1.6 lens
- 340° pan, 55° tilt
- AI human detection with auto-tracking
- Patrol mode with up to 4 preset points
- Smart colour night vision, IR up to 10 m
- Two-way calling with a touch button
- Loud noise detection, privacy sleep mode
- 2.4 GHz Wi-Fi plus Ethernet port
- microSD up to 512 GB, EZVIZ CloudPlay
| Camera | |
|---|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.6; Viewing angle: 82° (Horizontal), 48° (Vertical), 98° (Diagonal) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.264/H.265 |
| Video Bit Rate | Adaptive bit rate. |
| Image | |
| Max. Resolution | 2304 × 1296 |
| Frame Rate | Self-Adaptive during network transmission |
| Network | |
| Smart Alarm | Motion Detection, Human Shape Detection, Human Shape Tracking, Loud Noise Detection, Patrol Mode |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Interface | |
| Storage | Micro SD card slot (Max. 512G) |
| Power | Type-C |
| Wired Network | RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
| Wi-Fi | |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Output Power(EIRP) | 19 dBm |
| Antenna Gain | 1.9 dBi |
| General | |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/1A |
| Power Consumption | MAX. 5W |
| IR Range | MAX. 10 meters (33ft) |
| Dimensions | 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”) |
| Packaging Dimensions | 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”) |
| Bare Weight | 218g (0.48lb) |
| Certifications | |
| Certifications | CE / UL / WEEE / REACH / RoHS |
Know before you buy
Quick answers about the TY1 Pro 2K, and how it compares.
TY1 Pro 2K or TY1 Pro 3K?
The TY1 Pro 3K is sharper (5MP vs 3MP), zooms in up to 4× while tracking and also works on 5 GHz Wi-Fi. The 2K follows people without zooming and costs less.
TY1 Pro 2K or TY1 G1 2K?
Both are 3MP. The TY1 G1 2K tilts floor to ceiling, zooms while tracking and has a physical privacy shutter. The TY1 Pro 2K has a touch call button and costs less.
Can I use it outdoors?
No, it is an indoor camera. For outdoors, see the H8c 2K⁺ and the other outdoor models.
How do the EZVIZ indoor cameras compare?
| Model | Megapixels | View | Follows people | Extras |
|---|---|---|---|---|
| H1c | 2MP | Fixed, 108° | No, motion alerts | Magnetic base |
| H6c | 2MP | Pan & tilt | Follows motion | Lowest-cost pan & tilt |
| TY1 Pro | 2MP | Pan & tilt | Yes | Colour night vision, call button |
| H6c Pro 2K | 3MP | Pan & tilt | Yes | Colour night vision, call button |
| TY1 Pro 2K | 3MP | Pan & tilt | Yes | Colour night vision, call button |
| TY1 G1 2K | 3MP | Pan & tilt, floor to ceiling | Yes, with zoom | Privacy shutter |
| H6c Pro 3K | 5MP | Pan & tilt | Yes, zooms 4× | 5 GHz Wi-Fi |
| TY1 Pro 3K | 5MP | Pan & tilt | Yes, zooms 4× | 5 GHz Wi-Fi |
| E4p 3K⁺ | 5MP | Fisheye, whole room at once | No need, sees all | No moving parts |
| H7c Dual 2K⁺ | 2 × 4MP | Wide lens + pan & tilt lens | Yes | Wi-Fi 6 |
For a baby, elderly parent or shop counter, a model that recognises people sends fewer false alerts than plain motion detection.
Can I switch it off when I am at home?
Yes. Privacy (sleep) mode in the EZVIZ app stops video and sound, and you can schedule it, for example on whenever you are home. On pan & tilt models the lens also turns away so everyone can see it is off. The TY1 G1 2K adds a physical shutter over the lens.
Recordings stay on the microSD card in your camera, and only go online if you choose EZVIZ CloudPlay.
What do 2K, 3K and 4K mean in megapixels?
Brands use 2K, 3K and 4K loosely, so compare cameras by megapixels:
| Megapixels | Sold as | Pixels |
|---|---|---|
| 2MP | 1080p, Full HD | 1920 × 1080 |
| 3MP | 2K | 2304 × 1296 |
| 4MP | 2K⁺, QHD | 2560 × 1440 |
| 5MP | 3K | 2880 × 1620 |
| 8MP | 4K, UHD | 3840 × 2160 |
More megapixels keep faces and number plates readable when you zoom into a recording. For a room 2MP to 3MP is enough; for a gate, driveway or shop front, 4MP and above is worth it.
How does it record, and do I need a subscription?
Video is saved on a microSD card in the camera (not included). When the card is full, the oldest video is overwritten automatically. ESCO stocks genuine EZVIZ cards in 64 GB and 128 GB.
No subscription is needed: live view, playback, alerts and AI detection all work in the free EZVIZ app. EZVIZ CloudPlay is an optional paid plan that also keeps alert clips online, so they are safe even if the camera or card is stolen.
Who sells EZVIZ in Pakistan, and what warranty and support do I get?
Electronic Security Company (ESCO) is the authorized national distributor of EZVIZ in Pakistan, so every unit is genuine and comes with a 1-year warranty. Warranty is carry-in: bring the unit to an ESCO office or the dealer you bought from, and after inspection it is repaired or replaced.
Order here and delivery is free anywhere in Pakistan. We keep stock in Karachi, Lahore, Islamabad and Rawalpindi, and our dealer network covers almost every other city. EZVIZ products are made to set up yourself in the EZVIZ app; if you get stuck, our helpdesk helps on WhatsApp, phone and email, 10am to 6pm. Use Add to Cart, or Request a Quote for several units.
