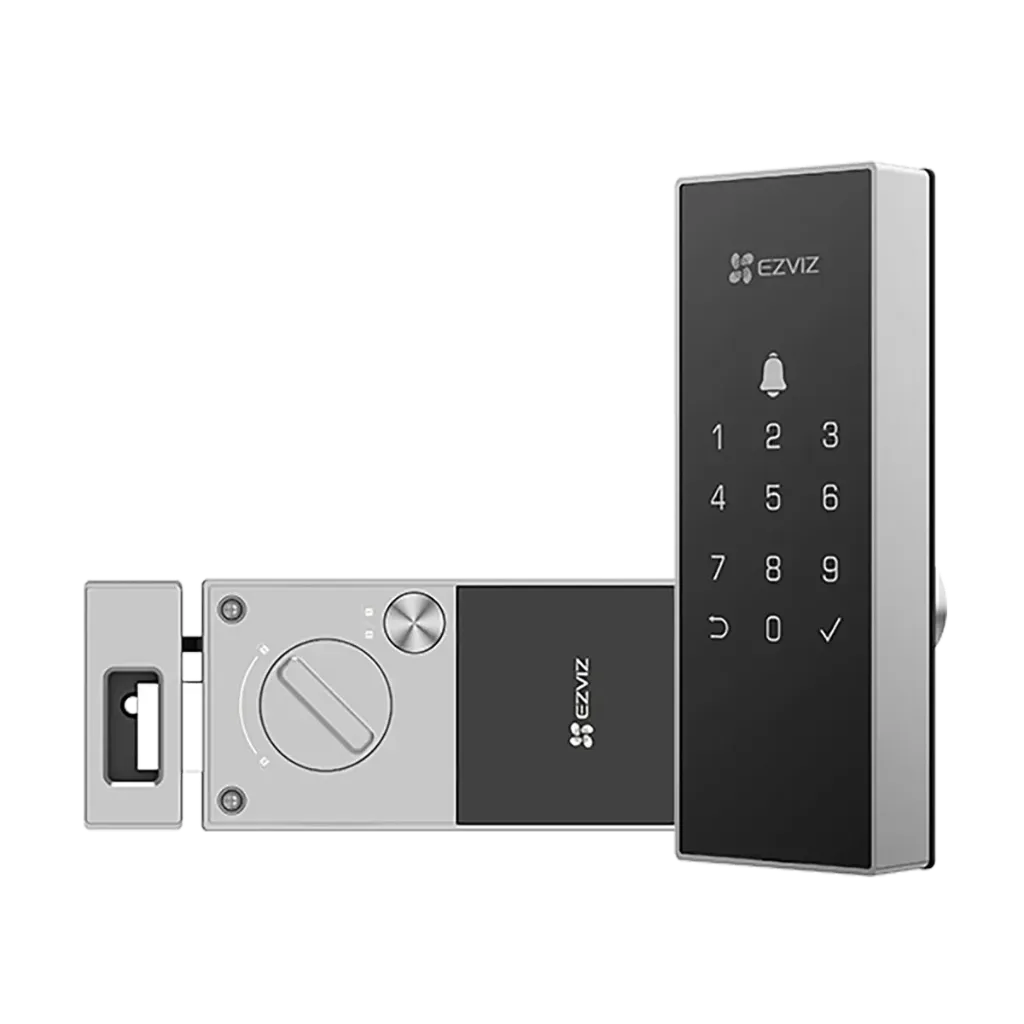

Key specs
- Smart rim lock, connects to 2.4 GHz Wi-Fi, no hub needed
- Passcode unlock (up to 50, 6 to 10 digits), temporary codes, remote unlock in the app
- Anti-peeping passcode
- Auto-locking, door-left-open and low-battery alerts
- Anti-tamper alarm; 5 wrong tries lock the keypad for 3 minutes
- Electric doorbell button
- 4 × AA batteries, Type-C emergency power
- Front 154 × 61 × 18 mm, rear 155 × 76 × 33.5 mm
- Works from −25 to 55 °C
| Technical Specification | |
|---|---|
| Product material | Aluminum + Plastic |
| Dimensions | Front Panel:154mm × 61mm × 18mm Rear Panel:155mm × 76mm × 33.5mm |
| Communication | EZVIZ Connect 2.4G Wi-Fi |
| Keyless unlocking | Support |
| Working power | 4 AA Alkaline Batteries |
| Working condition | -25℃~55℃ Humidity 10%~95% (Non-condensing) |
| APP Function | |
| Automatic locking | Support |
| Lock status check | Support |
| User management | Support |
| Message notification | Support |
| Door-left-open alert | Support |
| Privacy mode | Support (Enable via EZVIZ APP) |
| Temporary passcode | Support |
| Remote unlock | Support |
| Real-time notification | Support |
| EZVIZ Connect | Support |
| Low battery alert | Support |
| Front Panel Function | |
| Password unlock | Support (Up to 50 groups, 6-10 digits) |
| Virtual passcode | Support |
| Electric doorbell | Support |
| Low battery alert | Support |
| Anti-tamper alert | Support |
| Anti-test alert | Support (enter 5 errors in 5 minutes, locked for 3 minutes) |
Know before you buy
Quick answers about the DL03, and how it compares.
How do I unlock the DL03, and do I need a hub?
Enter a passcode on the keypad, send a visitor a temporary code (valid up to a year), or unlock from anywhere in the EZVIZ app. It stores up to 50 passcodes. No hub is needed: it connects straight to your 2.4 GHz Wi-Fi.
Can I fit it myself?
Yes. The DL03 is a rim lock that mounts on the surface of your existing door, with shims to line the latch up with the strike plate. No cutting into the door is needed.
How does it keep my home secure?
It locks itself when the door closes and alerts you if the door is left open. A siren sounds if someone tries to force it off, and five wrong passcodes lock the keypad for three minutes. Anti-peeping codes hide your real code among extra digits.
What if the batteries run out?
It runs on 4 AA batteries and the app warns you when they are low. If they run flat, power it for a moment from a power bank through the Type-C port to get in.
DL03 or DL05?
The DL05 adds fingerprint, card, Bluetooth key and a mechanical key, with an IP65 weatherproof front, but replaces your lock (6068 lock body). The DL03 fits on your existing door with no cutting and costs about half.
How do the EZVIZ smart locks compare?
| Model | Unlock with | See who is outside | Fits | Power |
|---|---|---|---|---|
| DL03 | Passcode, visitor codes, app | No | Rim lock on your existing door | 4 × AA |
| DL05 | Fingerprint, passcode, card, Bluetooth, app, key | No | 6068 lock body, doors 40 to 120 mm | 8 × AA |
| DL50FVS | 3D face, fingerprint, passcode, Bluetooth, app, key | 4-inch screen, video call | Full lock with C-level cylinder | 5,000 mAh rechargeable |
| DL20FVS Plus | 3D face, palm vein, fingerprint, passcode, Bluetooth, app, key | 4-inch screen, video call | 6068 lock body, doors 40 to 120 mm | 5,000 mAh rechargeable |
Who sells EZVIZ in Pakistan, and what warranty and support do I get?
Electronic Security Company (ESCO) is the authorized national distributor of EZVIZ in Pakistan, so every unit is genuine and comes with a 1-year warranty. Warranty is carry-in: bring the unit to an ESCO office or the dealer you bought from, and after inspection it is repaired or replaced.
Order here and delivery is free anywhere in Pakistan. We keep stock in Karachi, Lahore, Islamabad and Rawalpindi, and our dealer network covers almost every other city. EZVIZ products are made to set up yourself in the EZVIZ app; if you get stuck, our helpdesk helps on WhatsApp, phone and email, 10am to 6pm. Use Add to Cart, or Request a Quote for several units.
