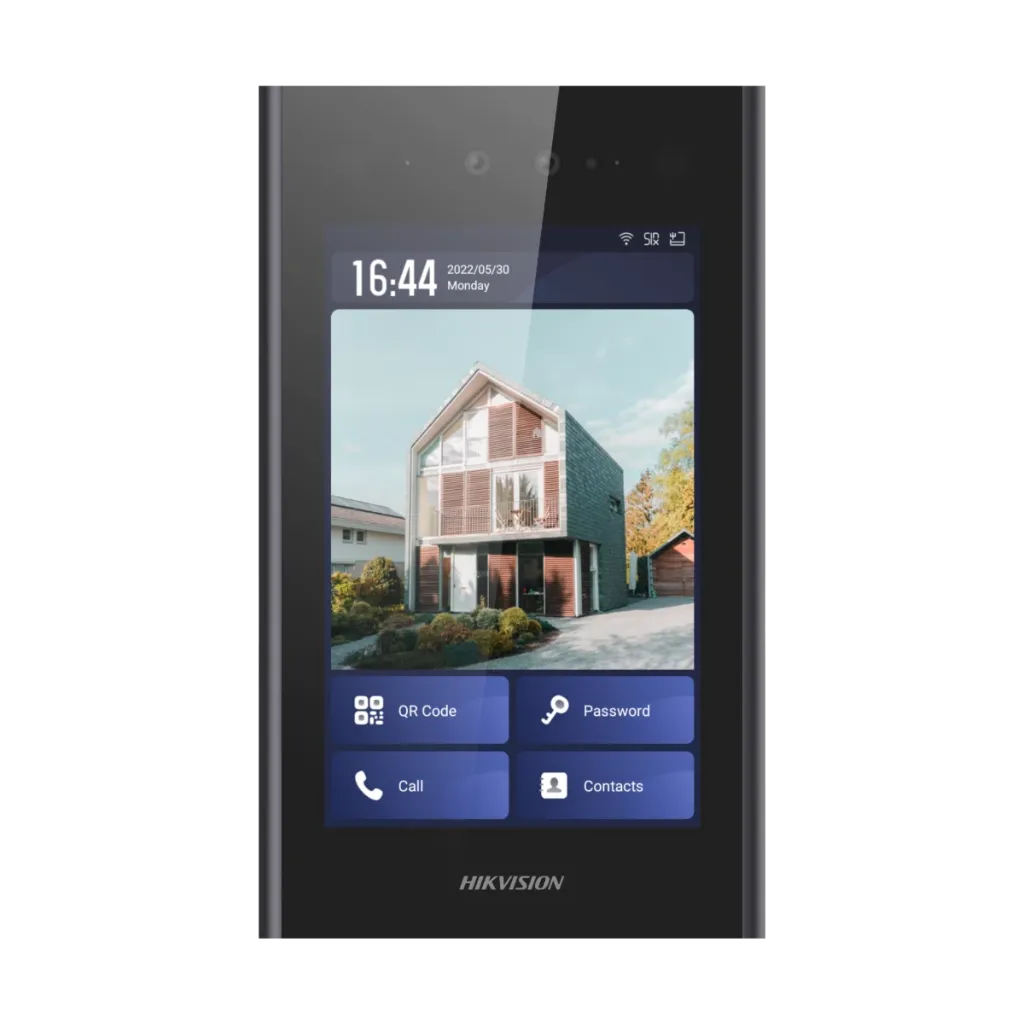

DS-KD9403-E6
Ultra Android lobby door station, 8-inch touch screen
- Opens by face, card, PIN or QR code
- 10,000 faces, 100,000 cards
- Calls up to 500 indoor stations
- Fingerprint with the DS-KDM9403-FKP module
DS-KD9403-E6
Ultra Android lobby door station, 8-inch touch screen
- Opens by face, card, PIN or QR code
- 10,000 faces, 100,000 cards
- Calls up to 500 indoor stations
- Fingerprint with the DS-KDM9403-FKP module
Key specs
- Android face recognition door station, 8-inch touch screen (1280 x 800), 2MP
- Unlock by face, Mifare card, PIN or QR code; fingerprint with DS-KDM9403-FKP
- 10,000 faces, 100,000 cards, 20,000 users
- Calls up to 500 indoor stations
- IR light up to 3 m
- 2 lock relays (30 VDC, 2 A); lock 2 needs a secure door unit
- Gigabit network
- IP65; -30 to 60 °C
- 12 VDC, 2 A
|
System Parameters |
|
|
ROM |
4 GB |
|
RAM |
2 GB |
|
Processor |
Embedded high performance processor |
|
Display Parameters |
|
|
Screen size |
8-inch |
|
Operation method |
Capacitive touch screen |
|
Type |
Colorful IPS |
|
Resolution |
1280 × 800 |
|
Brightness |
410 cd/m² |
|
Video Parameters |
|
|
Lens |
2 MP HD camera |
|
Resolution |
Main stream:1920 × 1080p and 1280 × 720p Sub stream: 1280 × 720p and 640 × 480p |
|
FOV |
Horizontal: 88°, Vertical: 44° |
|
Wide dynamic range (WDR) |
Digital WDR/120 dB |
|
Supplement light |
IR light, up to 3 m |
|
Video compression standard |
H.264 |
|
Audio Parameters |
|
|
Audio input |
Built-in omnidirectional microphones |
|
Audio compression standard |
G.711 U, G.711 A |
|
Audio output |
Built-in loudspeakers |
|
Audio compression bitrate |
64 Kbps |
|
Audio quality |
Noise suppression and echo cancellation |
|
Volume adjustment |
Adjustable |
|
Capacity |
|
|
User capacity |
20000 |
|
Face capacity |
10000 |
|
Card capacity |
100000 |
|
Linked indoor station capacity |
500 |
|
Sub door station capacity |
16 |
|
Network parameters |
|
|
Network protocol |
TCP/IP, RTSP |
|
Authentication |
|
|
Card reading frequency |
13.56 MHz |
|
Device interfaces |
|
|
Alarm input |
4 (2 exit buttons and 2 door contacts by default) |
|
Network interface |
2 RJ-45 10/100/1000 Mbps self-adaptive (1 reserved) |
|
TAMPER |
1 |
|
Exit button |
2 (1 for lock control and 1 for secure door control unit) |
|
RS-485 |
2 RS-485 (Half duplex, HIKVISION) |
|
USB |
2 for internal use only |
|
TF card |
1 (reserved) |
|
Alarm output |
2 (reserved) |
|
Lock control |
2 relays, Max. 30 VDC, 2 A, lock 2 needs secure module |
|
Door contact input |
1 |
|
General |
|
|
Installation |
Surface mounting and flush mounting |
|
Weight |
Net weight: 0.965 kg Gross weight: 2.772 kg |
|
Protective level |
IP65 |
|
Working temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |
|
Working humidity |
10% to 90% (no-condensing) |
|
Dimension (W × H × D) |
244 mm × 145 mm × 26 mm (9.6'' × 5.7'' × 1'') |
|
Power supply |
12 VDC, 2 A |
|
Application environment |
Outdoor |
|
Power consumption |
≤ 18 W |
Know before you buy
Quick answers about the DS-KD9403-E6, and how it compares.
What cable does it need?
A network cable (Cat5e or Cat6) to a switch. It is powered by 12 VDC.
How many flats can it call?
Up to 500 indoor stations, one per flat. Visitors pick the flat on the screen or keypad module; residents open by face, card or code.
Can it open the door or gate?
Yes. It has 2 lock relays (30 VDC, 2 A); the second lock needs a secure door control unit, an exit button input and a door contact input.
Can I buy it online?
Video intercom is an installed product, so we start with a free pre-sales consultation: our engineers confirm the right kit or stations for your villa or building and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
