U240:1M-EU Mixer Amplifier, 240W, 1-Channel
Everything you need to know about this 240W, 1-channel mixer amplifier before specifying it for your project
The U240:1M-EU is a 240W mixer amplifier used for background music and voice announcements in larger commercial spaces such as big restaurants, shopping stores, schools, mosques and churches, banquet and marriage halls, and conference centers. Its built-in mixer lets microphones, music players and a call station connect directly, with no separate mixer needed.
It has two mic/line inputs (XLR) with switchable 48V phantom power, two AUX inputs (RCA, stereo summed to mono) for music sources, and an emergency (EMG) input that accepts line-level or 100V signals. MIC1 also has a 5-pin Euroblock input for a paging call station with contact override.
Yes. The output can be set to 4Ω, 8Ω, 70V, or 100V using the rear DIP switches, delivering the full 240W in every mode. That's enough to run dozens of ceiling or wall speakers on a single 70V/100V line.

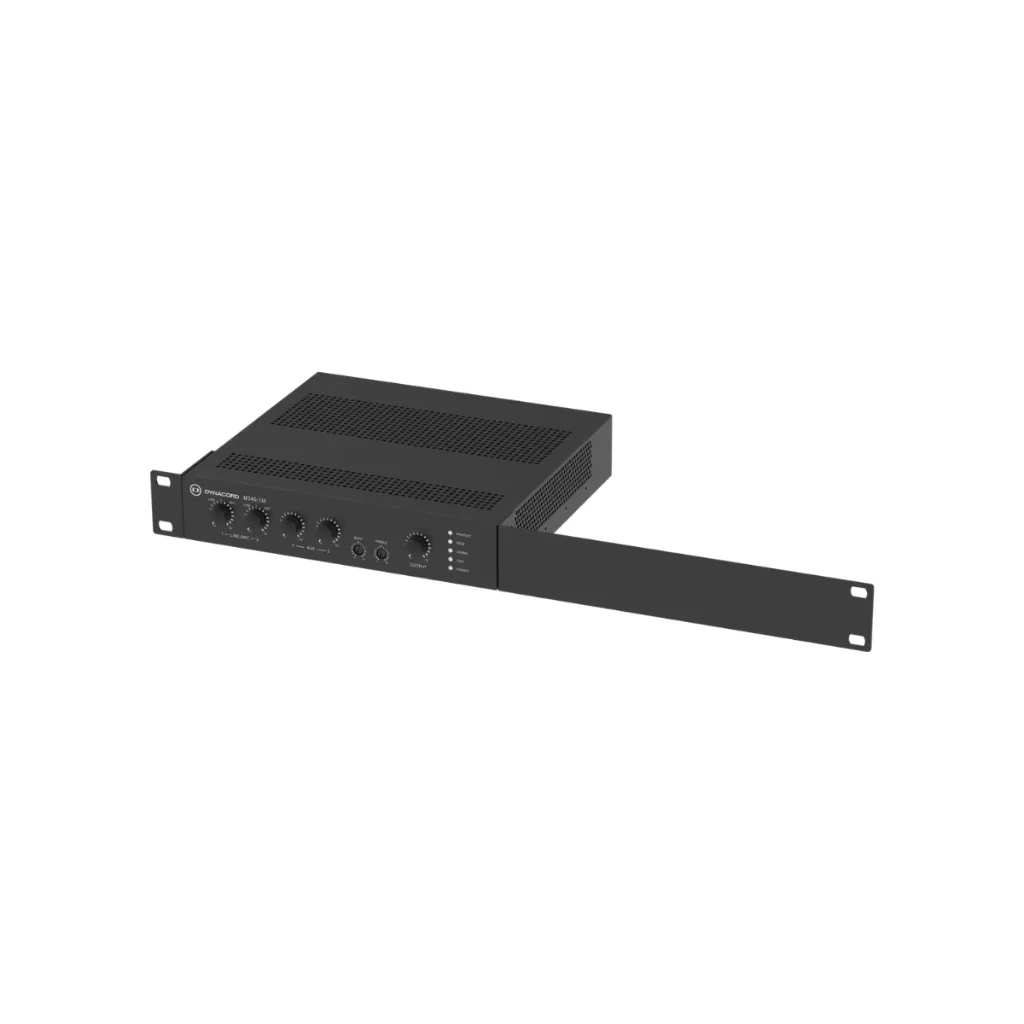

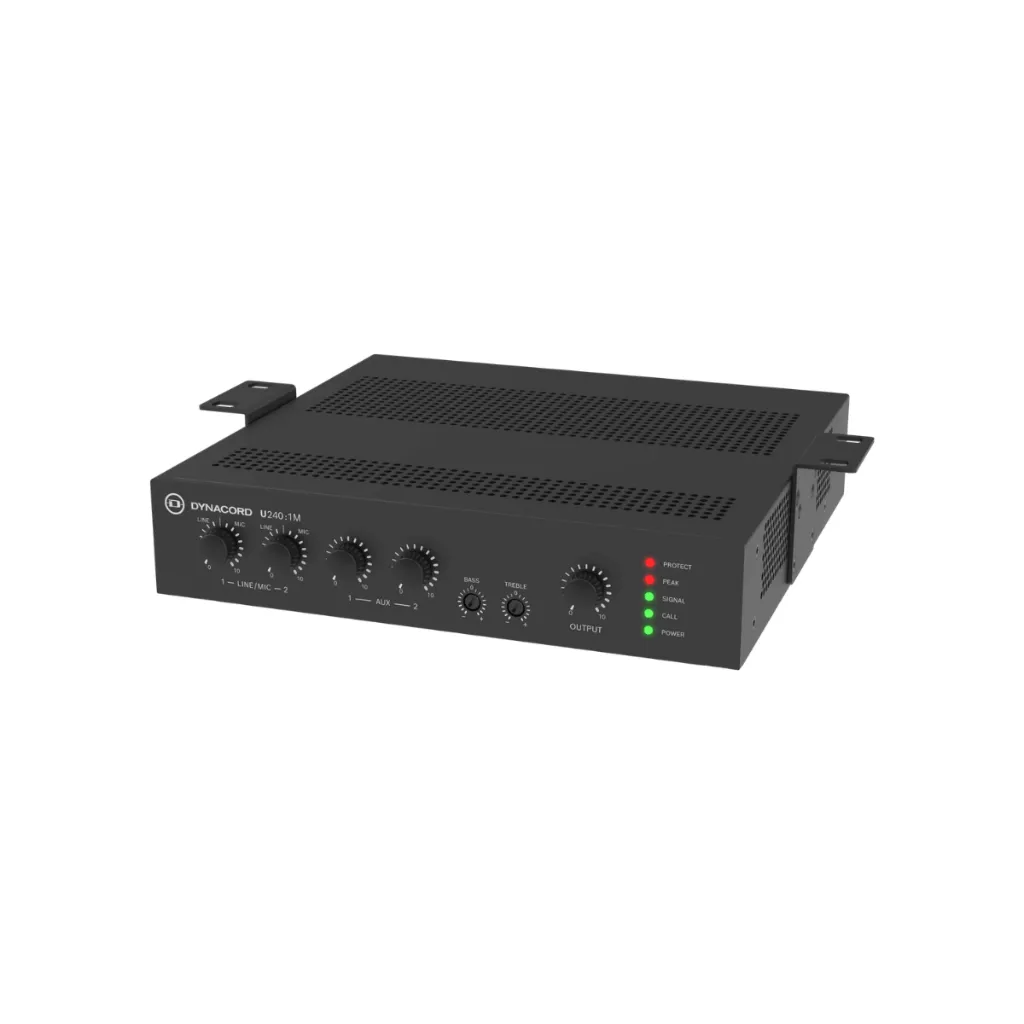

The U240:1M-EU is 1RU high and half a 19" rack wide. The supplied brackets allow stand-alone rack mounting, side-by-side mounting with a second amplifier in one rack space, tabletop use, or under-table mounting.
The U240:1M delivers twice the output power (240W vs 120W) in the same compact half-rack chassis. Inputs, controls, cooling and frequency response are identical, so choose based on how many speakers and how large an area you need to cover.
Electronic Security Company is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. We supply, design and install commercial audio systems for offices, hotels, retail and auditoriums, with genuine warranty support and after-sales service nationwide.
Dynacord U240:1M-EU Mixer Amplifier

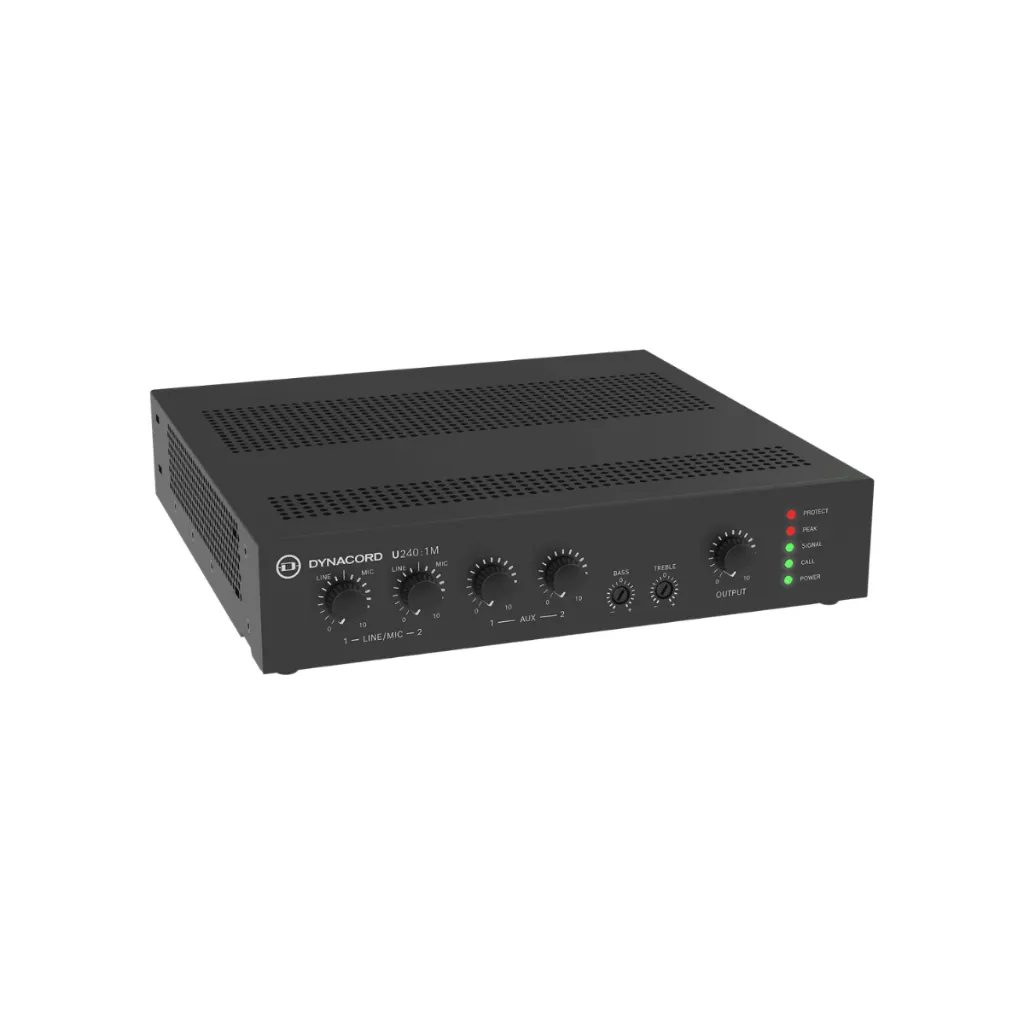

The Dynacord U240:1M-EU is a 240W, single-channel mixer amplifier that combines a 4-input mixer and a Class D power amplifier in one compact, half-rack 1RU unit. It's the most powerful mixer amplifier in the U Series, ideally suited to background music and clear voice announcements in bars and restaurants, retail outlets, education, houses of worship, museums and galleries, transport hubs, and conference centers.
It delivers full power into 4Ω, 8Ω, 70V, or 100V loads with a wide 20 Hz to 20 kHz frequency response, enough to drive a large number of speakers across bigger spaces from a single unit. VOX ducking, a 2-tone chime and a priority emergency input make sure announcements are always heard over the music. It runs on silent convection cooling, with a four-stage temperature-controlled fan that switches on only under heavy load or high heat.
Premium 240W Single-Channel Mixer Amplifier
A compact half-rack Class D mixer amplifier combining a 4-input mixer and a 120W amplifier for background music and clear voice announcements.
Output Power & Performance
Rated Output: 240 W. Output Modes: 4Ω / 8Ω / 70V / 100V at full power. Frequency Response: 20 Hz – 20 kHz. Distortion: < 0.5% at rated power. Signal-to-Noise: > 100 dB.
Four Inputs + Emergency Override
2 mic/line inputs with switchable 48V phantom power, 2 RCA AUX inputs for music, and a priority EMG input (line or 100V).
VOX Ducking
Automatically lowers background music when a voice is detected on MIC2, with adjustable ducking depth (0–45 dB) and threshold.Call Station Input & 2-Tone Chime
The MIC1 Euroblock input supports a paging call station with contact override, plus a selectable 2-tone chime before announcements.
Fanless, Energy-Efficient Operation
A single RJ45 (AES72-1E) input carries both channels. It also has a 6-pin Euroblock analog input, Euroblock speaker outputs and a Ready/Fault relay.
Complete System Integration

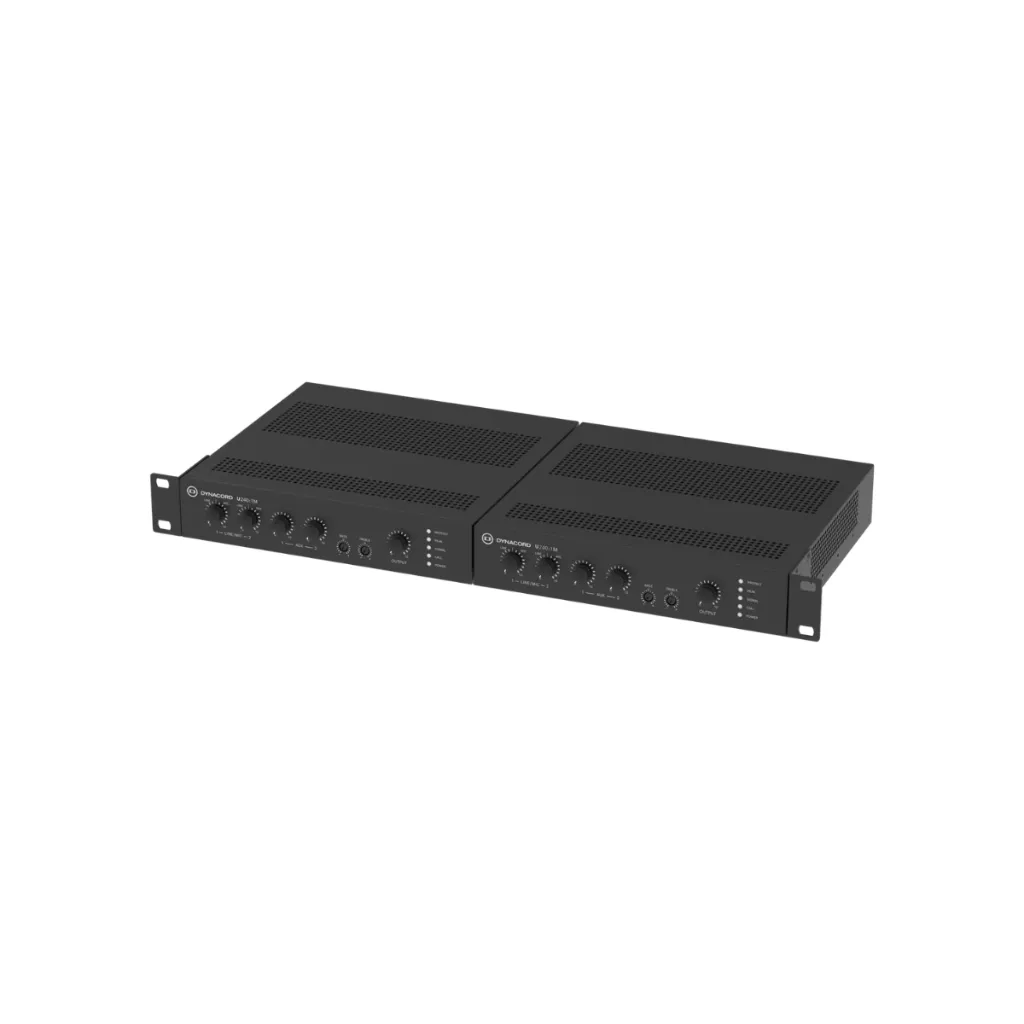

Mounts side by side with another U Series amplifier in a single rack space, pairs with the PLE-1CS all-call station for paging, and has an RCA line output that feeds a U Series power amplifier to expand coverage.
Compact Size, Complete Connectivity
The U240:1M-EU measures just 218 × 44.2 × 217.7 mm (W × H × D) and weighs 1.9 kg. It takes up half the width of a single 19" rack unit, and with rack ears fitted it spans the full 483 mm (19") rack width.

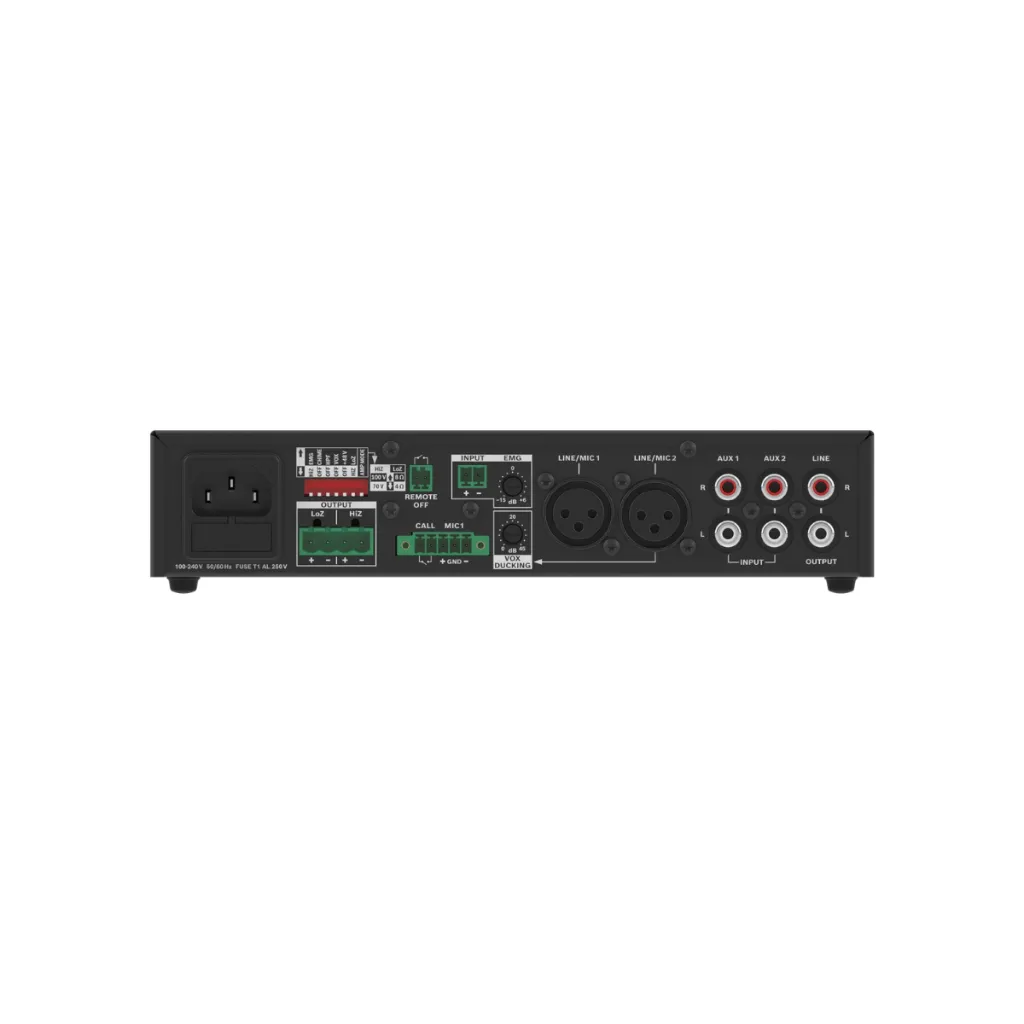

All connections sit on the rear panel: two XLR mic/line inputs, two RCA AUX inputs, a 5-pin Euroblock for a call station, a 2-pin EMG input, an RCA line output, and a 4-pin Euroblock speaker output with separate LoZ and HiZ terminals.
Mosques & Large Prayer Halls
A large prayer hall needs clear, even sound from the mihrab to the last row. With 240 W driving 100 V / 70 V speaker lines, the U240:1M covers wide prayer halls, galleries and courtyards, so every word of the khutbah, azaan and announcements is heard clearly and without distortion.
Islamic Centres, Madrasas & Imambargahs
Domes and hard surfaces make speech harder to understand. Paired with column or ceiling speakers, the U240:1M delivers dependable, intelligible sound for daily prayers, dars and gatherings, built to run reliably day after day.
Music Schools & Training Studios
: Music schools need instructors to be heard over the instruments. The U240:1M powers the room's PA for vocals, playback tracks and announcements, so teachers and students hear each other clearly during sessions.
Conference Rooms & Corporate Events
Presentations, seminars and training sessions all depend on the speaker being heard. The U240:1M delivers clear voice reinforcement from the podium to the back of the room, with enough power for large conference halls and event spaces.
General
| Specification | Value |
|---|---|
| Model | U240:1M-EU |
| Order number | F.01U.425.749 |
| Product type | Mixer amplifier, 1-channel |
| Series | Dynacord U Series |
| Output stage topology | Class D |
Output Power & Performance
| Specification | Value |
|---|---|
| Rated output power (IHF-A-202) | 240 W |
| Output modes | 4Ω / 8Ω (LoZ), 70V / 100V (HiZ) |
| Max output voltage (1 kHz, THD 0.5%, no load) | 31 V (4Ω) / 45 V (8Ω) / 71 V (70V) / 102 V (100V) RMS |
| Frequency response, any input to output (-3 dB) | < 20 Hz – 20 kHz |
| Frequency response, EMG input to output (-3 dB) | < 20 Hz – 15 kHz |
| Frequency response, any input to line output | < 10 Hz – 60 kHz |
| Distortion | < 0.5% at rated output power, 1 kHz |
| Signal-to-noise ratio (A-weighted) | > 100 dB |
Inputs
| Specification | Value |
|---|---|
| Number of inputs | 2 mic/line, 2 AUX, 1 EMG (priority) |
| LINE/MIC1 | 3-pin XLR balanced, plus 5-pin Euroblock balanced for call station with contact override and chime |
| LINE/MIC2 | 3-pin XLR balanced, with VOX ducking override |
| Phantom power (MIC1 & MIC2) | 48V DC, switchable |
| AUX1 / AUX2 | RCA, stereo summed to mono, unbalanced |
| EMG input | 2-pin Euroblock, balanced, line or 100V |
| Mic sensitivity (max gain) | -68 dBu (300 µV) |
| AUX sensitivity | -11.8 dBu (L or R only) / -17.8 dBu (L and R) |
| Max input level | LINE/MIC +7.5 dBu, AUX +22 dBu (L or R) / +16 dBu (L and R), EMG line +11.5 dBu, EMG 100V +44.5 dBu |
| Input impedance | MIC 10 kΩ, AUX 4.7 kΩ, EMG line > 15 kΩ, EMG HiZ > 470 kΩ |
| Mic dynamic range | 60 dB |
| Equivalent input noise | < -115 dBu |
Outputs
| Specification | Value |
|---|---|
| Loudspeaker output | 4-pin Euroblock (2 pins LoZ, 2 pins HiZ) |
| Line output | RCA, for linking to another amplifier (e.g., U Series power amplifier) |
Controls & Signal Processing
| Specification | Value |
|---|---|
| Front-panel controls | Master gain, per-input gain, bass, treble |
| Bass shelving | ±12 dB at 100 Hz |
| Treble shelving | ±12 dB at 10 kHz |
| Low-cut filter (permanent) | 20 Hz, 12 dB/oct |
| High-pass filter (switchable) | 120 Hz, 12 dB/oct |
| VOX ducking | 0 – 45 dB depth, threshold -60 to +8 dBu |
| Chime | 2-tone chime (on/off) |
| DIP switches | EMG (HiZ/Line), chime, HPF, VOX, phantom power, output (HiZ/LoZ), amp mode (70V/100V, 4Ω/8Ω) |
| Front status LEDs | Protect, Peak, Signal, Call, Power |
Power
| Specification | Value |
|---|---|
| Mains voltage | 100 – 240 VAC ±10%, 50/60 Hz |
| Standby (remote off) | 1.25 W |
| Idle consumption, LoZ mode | 10 W (4Ω) / 12 W (8Ω) |
| Idle consumption, HiZ mode | 10 W (70V) / 14 W (100V) |
| Consumption at 1/8 rated power | 55 W |
| Remote power on/off | 2-pin Euroblock, contact closure |
Protection
| Specification | Value |
|---|---|
| Amplifier | Audio limiter, high temperature, DC, HF, short circuit, overcurrent |
| Power supply | Mains over/under voltage, inrush current limiter, mains overcurrent, high temperature |
Environmental
| Specification | Value |
|---|---|
| Cooling | Convection, with four-stage temperature-controlled fan (Off / Slow / Medium / Fast) |
| Operating temperature | -5°C to +45°C |
| Storage temperature | -40°C to +70°C |
Mechanical
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 44.2 × 218 × 217.7 mm (1.74 × 8.6 × 8.57 in) |
| Form factor | 1RU, half-rack width |
| Net weight | 1.9 kg without accessories / 2.4 kg with accessories |
| Shipping weight | 2.8 kg |
| Color | RAL 9017 Traffic Black |
| IEC protection class | Class I (grounded) |
| Mounting | Stand-alone, 19" rack, rack side-by-side, half 19" rack, table-top, under-table |
