VCS-8
8-Zone Call Station
8 independent zones
Dynacord VCS-8 8-Zone Call Station
Everything you need to know about this V Series call station before specifying it for your project
The VCS-8 is a paging call station used to make live announcements to individual zones, groups of zones, or an entire building's audio system — commonly used in restaurants, hotels, retail outlets, houses of worship, and educational facilities running a Dynacord V Series zone audio system.

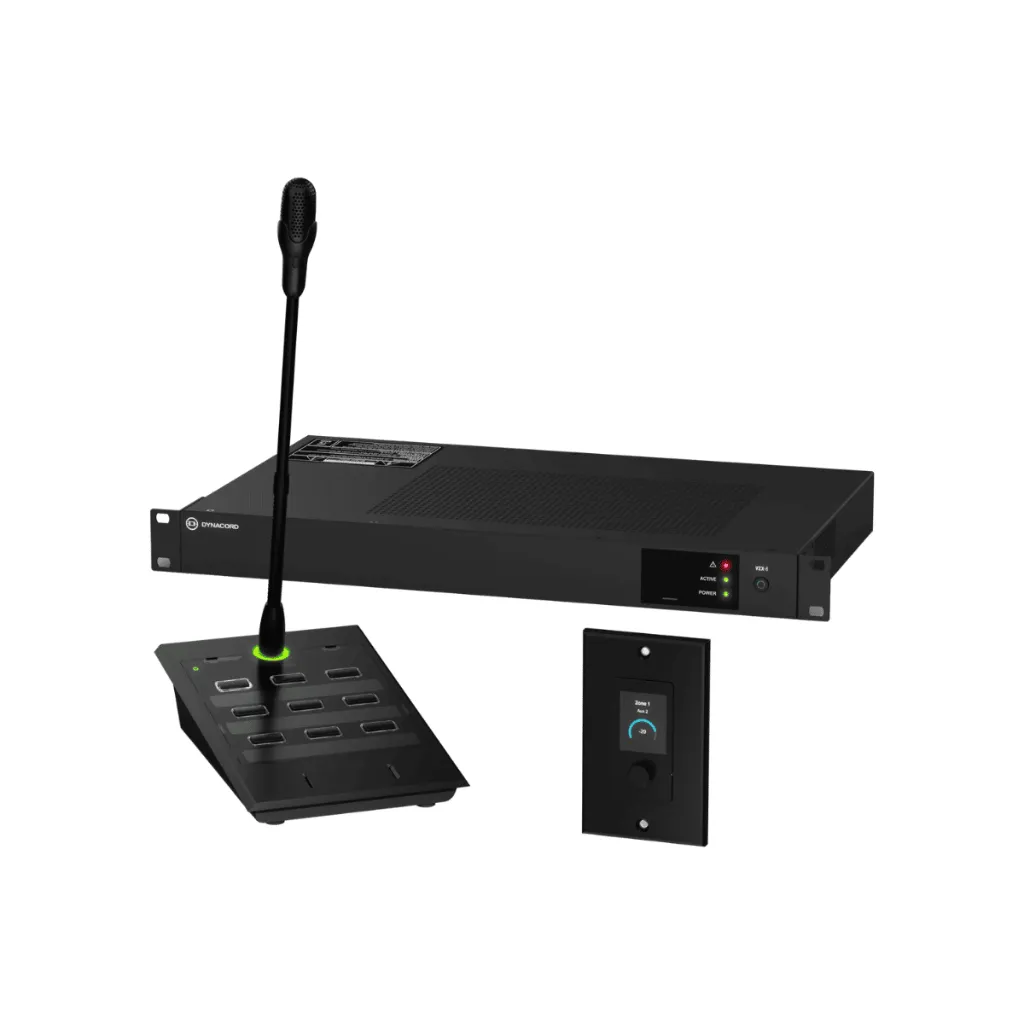

Up to 8 VCS-8 call stations can be daisy-chained to a single VZX-8 processor, connected via RJ45 accessory ports with a maximum cable length of 1,640 ft (500m) per port.
It's powered over the accessory bus from the VZX-8 (48VDC, bus powered) using 2x RJ45 connections (in/out for daisy-chaining). No separate power supply is needed.
Electronic Security Company is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. We supply, design and install complete zone audio systems for offices, hotels, retail, restaurants, and houses of worship, with genuine warranty support and after-sales service nationwide.

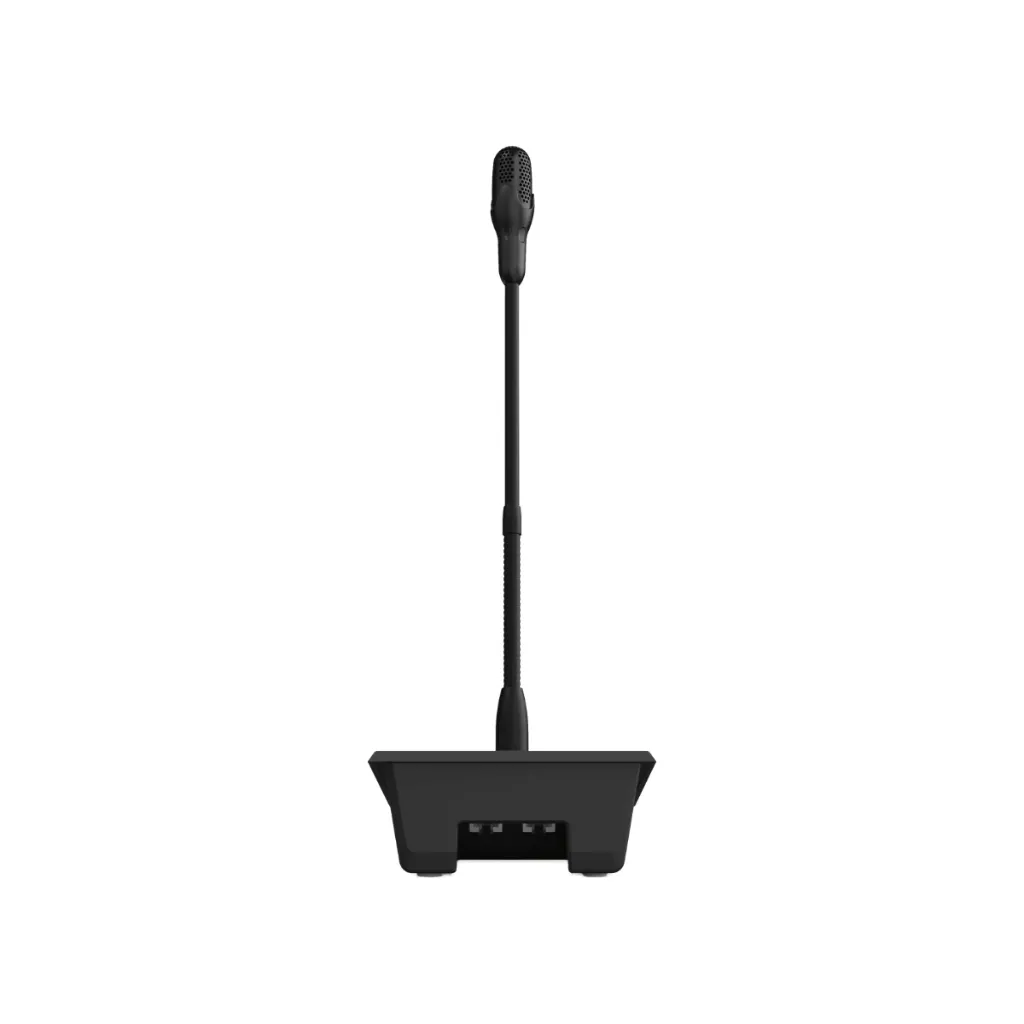

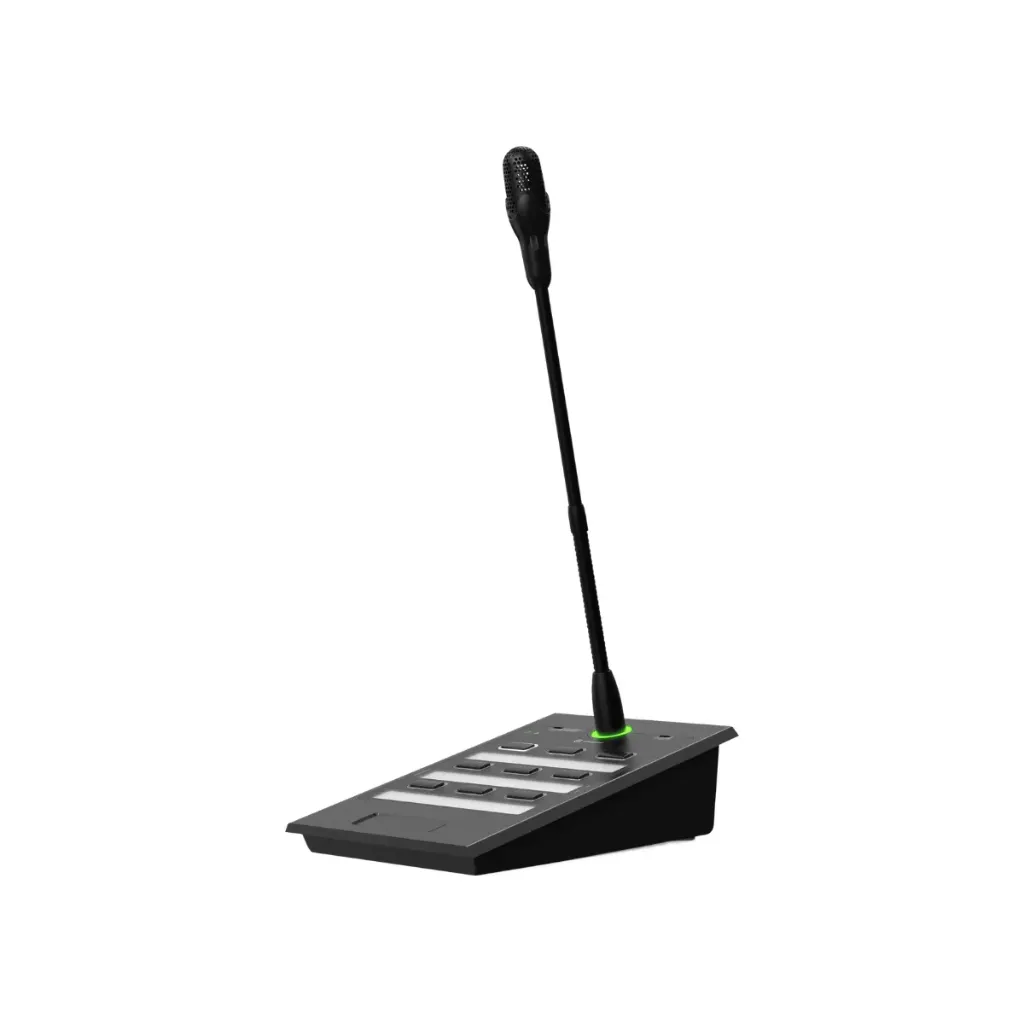

VCS-8 8-Zone Call Station (V Series)
The VCS-8 is a robust, versatile call station built for seamless integration with Dynacord's V Series Zone Audio Platform. Its high-quality gooseneck microphone ensures clear, intelligible voice transmission for announcements and paging in any environment, while 9 freely programmable buttons let users page individual zones, groups of zones, or the entire system with a single press.
Designed for scalability, up to 8 VCS-8 units can be daisy-chained to a single VZX-8 processor, simplifying installation and future expansion. Advanced communication features — customizable priority, mutual exclusion, and busy indication via its LED light ring — keep paging organized across multi-zone venues like restaurants, hotels, and houses of worship. Its heavy-duty cast aluminum base ensures exceptional stability and longevity for daily commercial use.
High-Quality Gooseneck Microphone
Electret condenser gooseneck microphone (non-detachable) with unidirectional pickup and 100Hz–14kHz frequency response, ensuring clear voice transmission for every announcement.
9 Freely Programmable Buttons
Page any single zone, group of zones, or the entire system with one press — buttons can also be configured to control other V Series system functions.
Daisy-Chainable up to 8 Units
Connect up to 8 VCS-8 call stations to a single VZX-8 processor via RJ45 accessory ports, with selectable chimes per station and cable runs up to 500m.
LED Light Ring Status Indicator
instantly see call station status — green for open line, orange for busy/pre-chime, blue for updating — without needing to check a separate display.
Advanced Communication Management
Customizable priority settings, mutual exclusion, and busy indication keep multi-zone paging organized and conflict-free across large venues.
Durable Cast Aluminum Base
Built for daily commercial use with a heavy-duty cast aluminum base, ensuring long-term stability even in high-traffic environments.
Compact Tabletop Footprint

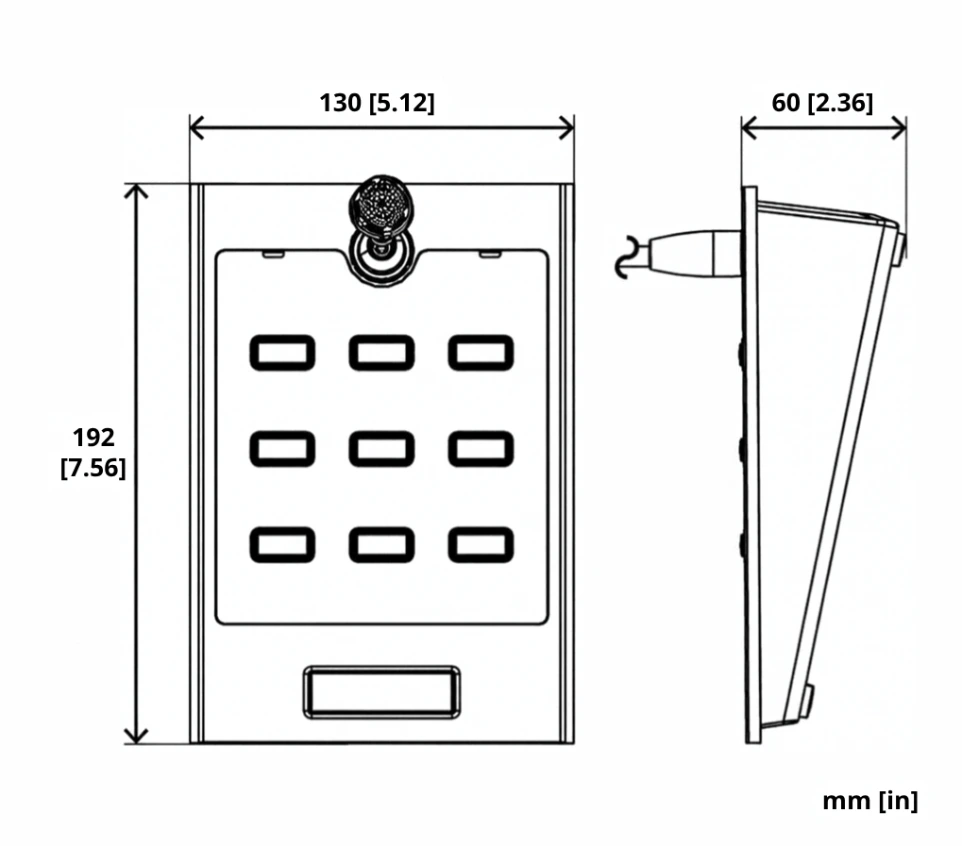

At just 130mm (5.12") wide, 192mm (7.56") deep, and 60mm (2.36") tall (excluding the gooseneck microphone), the VCS-8 fits neatly on a reception desk, host stand, or control counter without taking up valuable space.
Use Cases :-
School Corridors
School hallways need clear, reliable paging that reaches every student regardless of ambient noise from lockers, conversations, and foot traffic between classes. The VCS-8 lets front office staff page individual hallways, wings, or the entire campus with a single button press — no need to run to each classroom or rely on a single overworked PA microphone. Paired with EVID ceiling or surface-mount speakers distributed throughout corridors, announcements, bell schedules, and emergency messages come through clearly across the whole facility, all managed from one call station at the front desk.
Restaurants & Bars
Restaurants and bars run multiple distinct zones at once — main dining, bar area, host stand, kitchen, restrooms, and sometimes a live music corner — each needing independent volume control and the occasional live announcement without disrupting the rest of the venue. The VCS-8 lets staff page a single zone (last call at the bar, a reservation callout at the host stand) or reach the entire venue at once, with busy indication and mutual exclusion keeping multiple call stations from talking over each other during a rush.
Hotels
Hotels need audio coverage across genuinely diverse spaces — meeting rooms, reception, guest-facing corridors, fitness centers, pools, courtyards, and the restaurant/bar — each with different acoustic needs and different staff responsible for them. The VCS-8 gives front-desk and event staff instant paging control over any single zone or the entire property, without needing a dedicated sound engineer or juggling separate systems for background music versus emergency announcements.
Technical Specifications
| Specification | Value |
|---|---|
| Product | VCS-8 8-Zone Call Station, V Series |
| Type | Call station for V Series Zone Audio Platform |
| Mounting | Tabletop |
| Housing Type | Top: PC/ABS, Bottom: Zamak |
| Color (RAL) | RAL 9017 Traffic Black |
Electrical Specifications — General
| Specification | Value |
|---|---|
| Maximum Acoustic Input Level | 120 dB SPL |
| Minimum Signal-to-Noise Ratio | 68 dB (A-weighted) |
| Operating Voltage | 48 VDC (bus powered) |
Electrical Specifications — Microphone
| Specification | Value |
|---|---|
| Type | High-quality electret condenser, gooseneck, non-detachable |
| Frequency Response | 100 Hz – 14 kHz |
| Polar Pattern | Unidirectional |
Mechanical Specifications — Enclosure
| Specification | Value |
|---|---|
| Light Ring Indicator | Green: line open for talking; Orange: pre-chime running or zone busy (button blinks); Blue: updating |
| Buttons | 9 configurable buttons for zones/actions, plus Push-to-Talk button |
| LED Indicators | 9 total — illuminated when zone assigned/selected; blinks when zone is busy |
| Connections | 2× RJ45 (Out, In) for daisy chain |
| Audio Connection & Power Source | Accessory Bus of VZX-8 Zone Audio Processor |
| CAN Termination Plugs | 1 per accessory line (A, B) — placed in unused port on last accessory connected to VZX-8 |
| CAN Termination Type | RJ45 termination with 120 Ω resistor |
| Daisy Chain Capable | Yes — up to 8 VCS-8 units per VZX-8 |
Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H×W×D), without mic | 2.36 in × 5.12 in × 7.56 in / 60 mm × 130 mm × 192 mm |
| Shipping Dimensions (H×W×D) | 6.73 in × 15.39 in × 7.56 in / 171 mm × 391 mm × 192 mm |
| Net Weight | 2.03 lb / 0.92 kg |
| Shipping Weight | 3.13 lb / 1.42 kg |
Environmental Specifications
| Specification | Value |
|---|---|
| Operating Temperature | 40°F – 105°F / 5°C – 40°C |
Safety & Compliance
| Specification | Value |
|---|---|
| Safety | UL 62368-1, CSA C22.2 No. 62368-1 |
| EMC | EN55032:2015+A11:2020, EN55035:2017+A11:2020 |
| FCC/ICES | Part 15 Class B (US), ICES-003 (Canada) |
| Notice | California Prop 65 warning — product can expose users to lead |
Parts Included
| Qty | Component |
|---|---|
| 1 | VCS-8 |
| 1 | Quick installation guide |
| 1 | Safety and Security Information booklet |
