V Series Zone Audio Platform
The heart of the system.

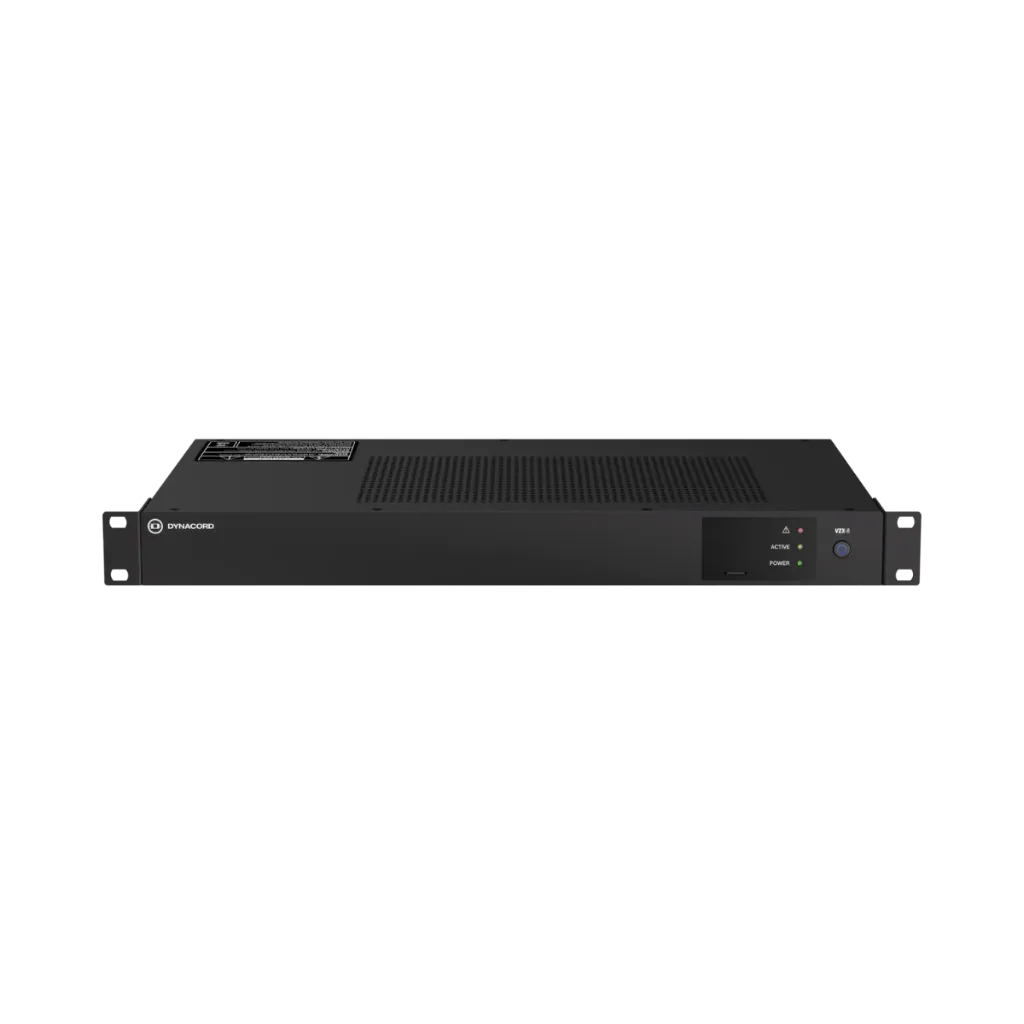

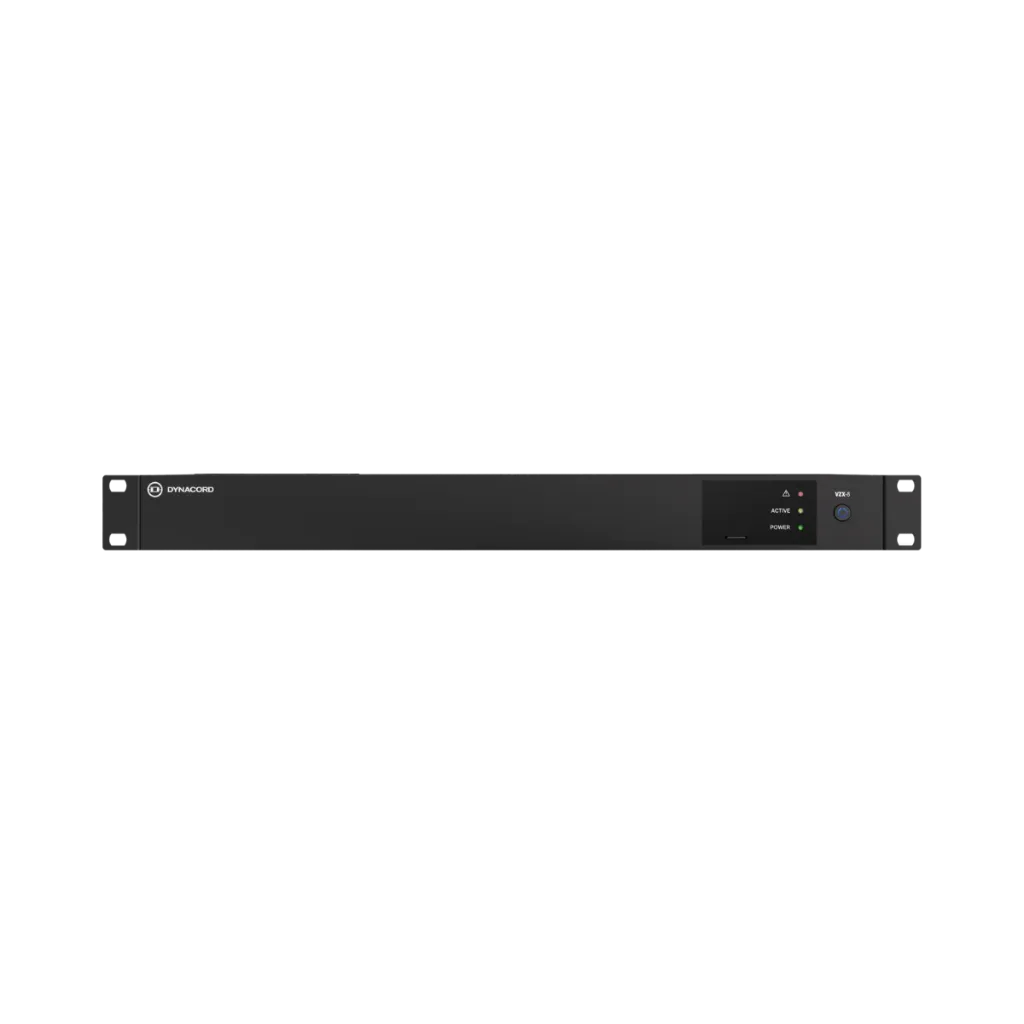

VZX-8 8-Zone Audio Processor
Every zone, source, message and page runs through one 1U processor.
V Series Zone Audio Platform
The heart of the system.
VZX-8 8-Zone Audio Processor
Every zone, source, message and page runs through one 1U processor.
Built into every VZX-8

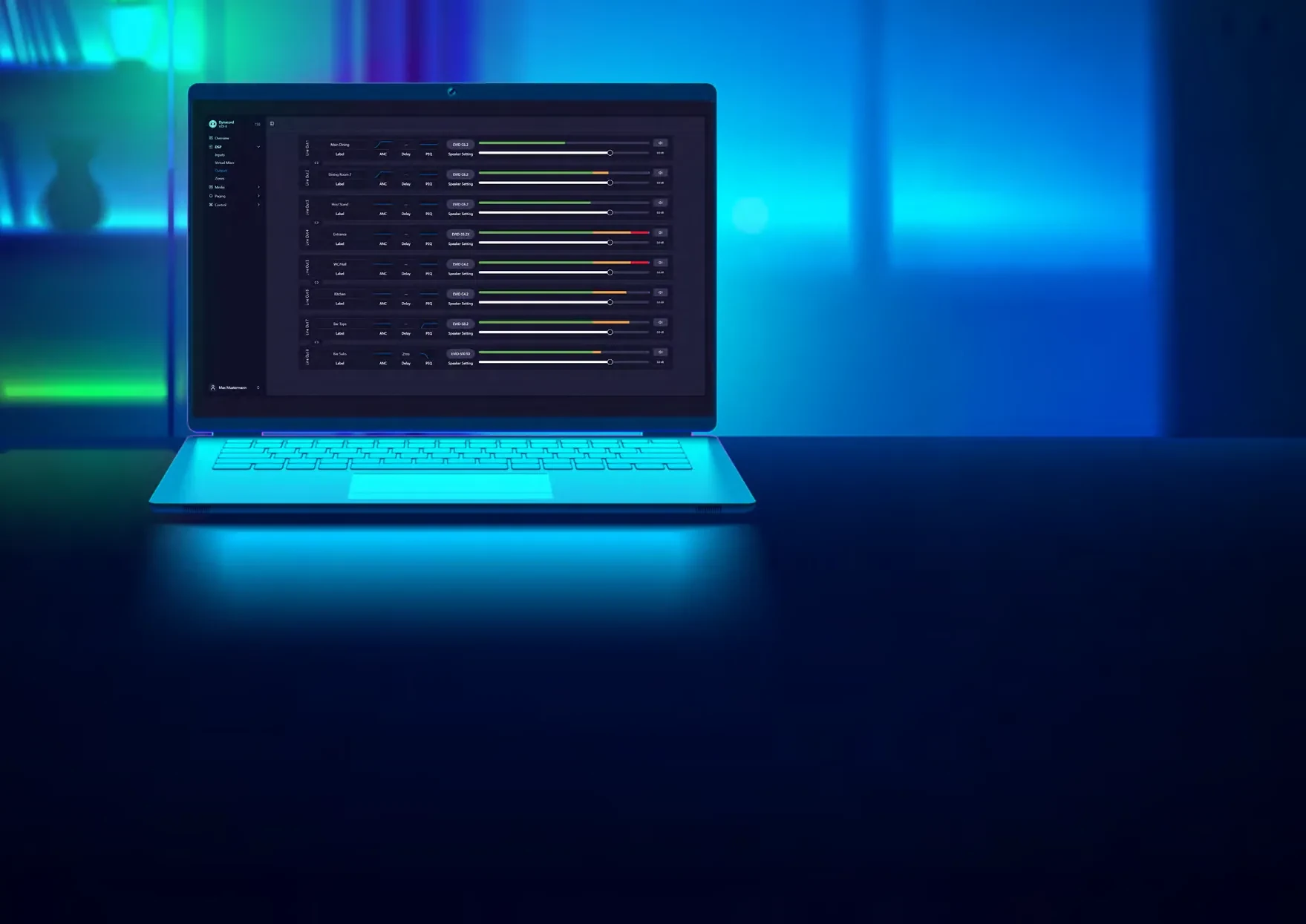

VZX Web App
Set up, configure and control from any browser
There is nothing to install: open the VZX-8's built-in web app in any browser on a laptop, tablet or phone. Set up zones, messages, paging and wall panels in minutes, and copy and paste processing blocks to finish larger jobs faster. Full-matrix DSP sends any input to any output, with Dynacord FX, AGC and ANC on hand, while the built-in Virtual Mixer with automixer (AMM) handles live mixing. Input routing, zones, output levels and speaker settings all sit on one clear screen, in your choice of language.
Built into every VZX-8
VZX Web App
Set up, configure and control from any browser
There is nothing to install: open the VZX-8's built-in web app in any browser on a laptop, tablet or phone. Set up zones, messages, paging and wall panels in minutes, and copy and paste processing blocks to finish larger jobs faster. Full-matrix DSP sends any input to any output, with Dynacord FX, AGC and ANC on hand, while the built-in Virtual Mixer with automixer (AMM) handles live mixing. Input routing, zones, output levels and speaker settings all sit on one clear screen, in your choice of language.
Dynacord VZX-8 FAQs
Answers to common questions about the VZX-8’s zones, audio sources, controls and system connections.
The VZX-8 is an 8-zone audio processor. It mixes and routes audio sources to eight independently processed zones for uses such as background music and paging.
Yes. It has two RJ45 line-output ports for V Series amplifiers and supports up to eight VCS-8 call stations for paging and control.
Dynacord VZX-8 can process 20 input sources, including eight Mic/Line inputs. Full Matrix DSP lets a system designer route inputs to the required zone outputs.
No. The VZX-8 has a browser-based web interface for configuration, so a separate app is not required.
Contact Electronic Security Company (ESCO) to ask about VZX-8 availability, pricing and a suitable zone audio system for your project.
See the VZX-8 Web App in Action
Explore how the Dynacord VZX-8 web interface is used to configure and manage a zone audio system.
One Processor. Flexible Control Across Eight Zones.
The Dynacord VZX-8 brings audio routing, processing, playback and system control together for commercial zone audio installations.

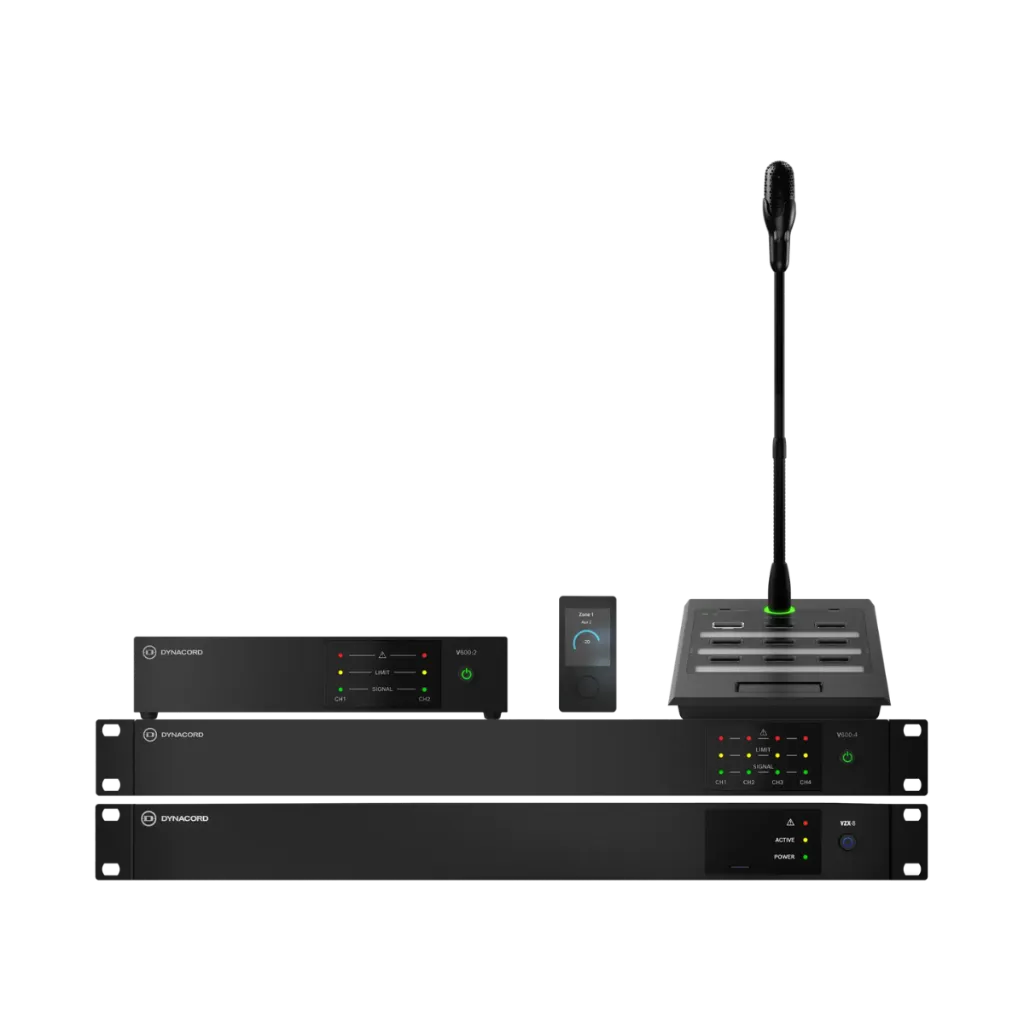

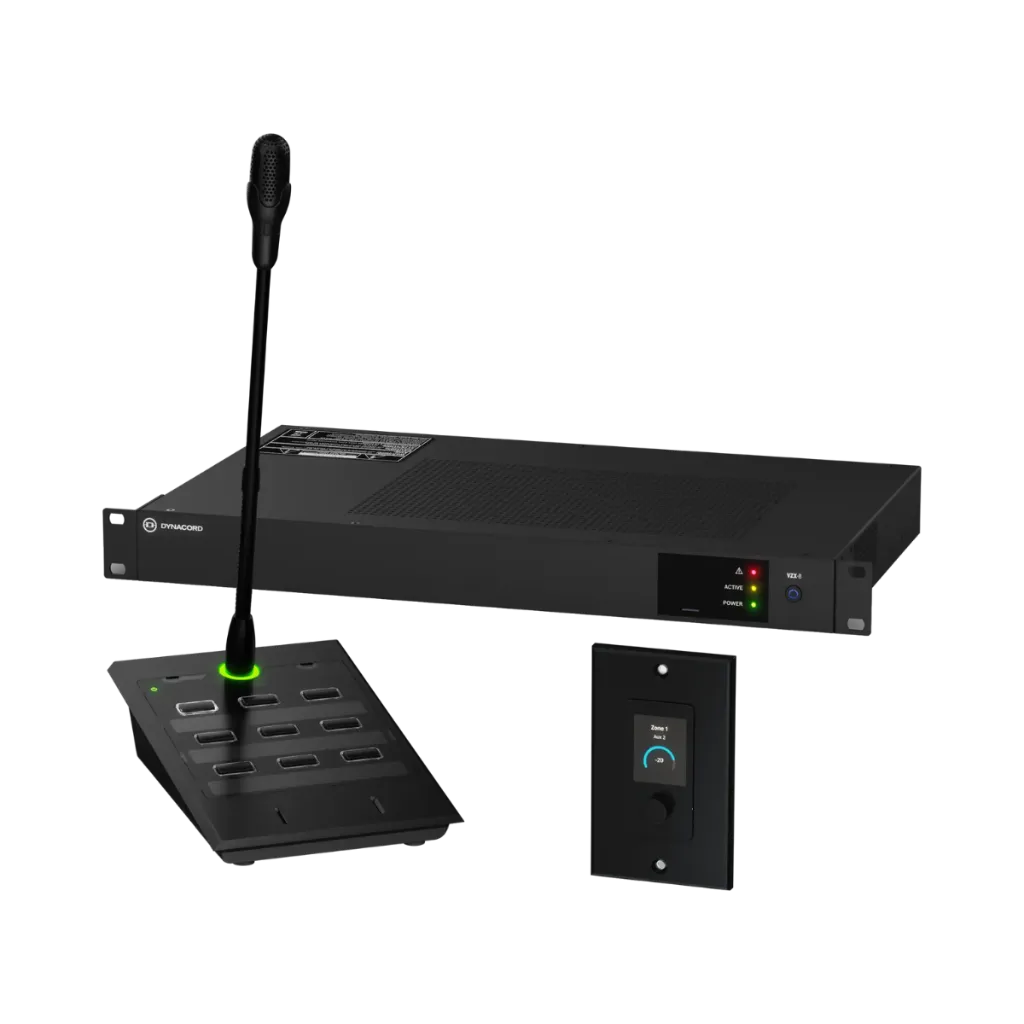

The Dynacord VZX-8 sits at the center of a V Series zone audio system. Audio sources connect to the processor, where signals can be mixed, processed and assigned to the required zones. Compatible VCS-8 call stations add paging control, while VWP wall panels give users local access to functions such as level, source and zone selection. The VZX-8’s dedicated RJ45 line outputs provide a connection to V Series amplifiers. Design the combination of components around the needs of each installation.
Eight Independent Zones
Manage music and paging across eight zones, with separate processing for each area.
Full Matrix Routing
Route available audio inputs to the zones that need them through the built-in DSP matrix.Flexible Mic Inputs
Connect up to eight Mic/Line sources for speech, paging and other audio needs.
Browser-Based Setup
Configure and manage the processor through its web interface, without installing an app.
Onboard Audio Playback
Play stored music and messages using the included 32 GB microSD card.
V Series Connectivity
Connect to compatible V Series amplifiers through dedicated RJ45 line outputs.

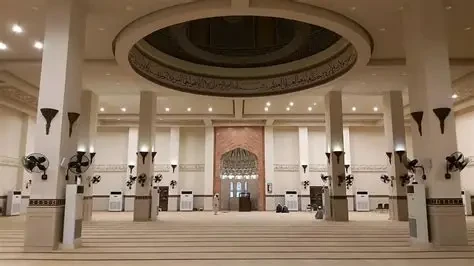

Application: Mosque Audio System
In a mosque, the VZX-8 brings every prayer space under one compact processor: the main hall, the ladies' section, the outdoor prayer area, walkways, ablution areas and the minaret. Its built-in automixer (AMM) brings up only the mic in use between the imam, khateeb and muezzin, while AGC keeps each voice at a steady level.
The azan can reach the minaret horns and every indoor zone at once, and wall panels let caretakers set each area's level without touching the rack. Full-matrix DSP replaces separate mixers and processors, keeping recitation and khutbah clear even in large, echo-prone halls.
1, 2 Main Prayer Hall
2x zones, 3x mics (imam, khateeb, muezzin), 1x VWP,
Electro-Voice EVID-S
3 Outdoor Prayer Area
1x zone (audio only),
Electro-Voice LRC or EVID-S
4, 5 Walkway / Ablution
2x zones (audio only),
Electro-Voice EVID-C-G2
6, 7 Ladies Prayer
2x zones, 1x VWP,
Electro-Voice EVID-S
- 8x Zones
- 3x Mic Inputs (Imam, Khateeb, Muezzin)
- 2x VWP Wall Panels
- 1x VZX Web App Configuration Tablet
- Electro-Voice EVID-S Surface Mount Speakers
- Electro-Voice LRC Column Speakers (outdoor option)
- Electro-Voice EVID-C-G2 Ceiling Speakers
- Bosch Horn Loudspeakers (minaret)
Clear speech with AGC:
Keeps imam, khateeb and muezzin voices at a steady level, close to the mic or a step back, in every zone.
8 Minaret
1x zone (audio only),
Bosch horn loudspeakers
Equipment Space
VZX-8, V600:2, V600:4
Application: Mosque Audio System
In a mosque, the VZX-8 brings every prayer space under one compact processor: the main hall, the ladies' section, the outdoor prayer area, walkways, ablution areas and the minaret. Its built-in automixer (AMM) brings up only the mic in use between the imam, khateeb and muezzin, while AGC keeps each voice at a steady level.
The azan can reach the minaret horns and every indoor zone at once, and wall panels let caretakers set each area's level without touching the rack. Full-matrix DSP replaces separate mixers and processors, keeping recitation and khutbah clear even in large, echo-prone halls.
1, 2 Main Prayer Hall
2x zones, 3x mics (imam, khateeb, muezzin), 1x VWP,
Electro-Voice EVID-S
3 Outdoor Prayer Area
1x zone (audio only),
Electro-Voice LRC or EVID-S
4, 5 Walkway / Ablution
2x zones (audio only),
Electro-Voice EVID-C-G2
6, 7 Ladies Prayer
2x zones, 1x VWP,
Electro-Voice EVID-S
- 8x Zones
- 3x Mic Inputs (Imam, Khateeb, Muezzin)
- 2x VWP Wall Panels
- 1x VZX Web App Configuration Tablet
- Electro-Voice EVID-S Surface Mount Speakers
- Electro-Voice LRC Column Speakers (outdoor option)
- Electro-Voice EVID-C-G2 Ceiling Speakers
- Bosch Horn Loudspeakers (minaret)
Clear speech with AGC:
Keeps imam, khateeb and muezzin voices at a steady level, close to the mic or a step back, in every zone.
8 Minaret
1x zone (audio only),
Bosch horn loudspeakers
Equipment Space
VZX-8, V600:2, V600:4
Zone Audio for Commercial Spaces
Bring music, paging and audio control together across restaurants, hospitality venues and educational facilities with the Dynacord VZX-8.

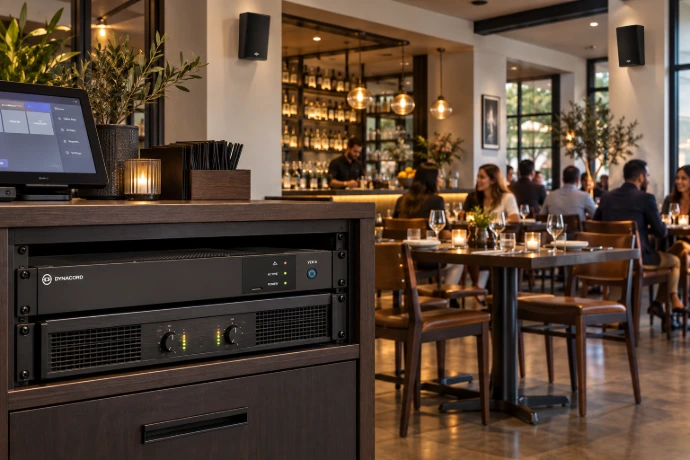

Restaurants & Bars
Easily manage background music and paging across dining areas, bars, and other zones, with flexible source selection and precise level control for each space.

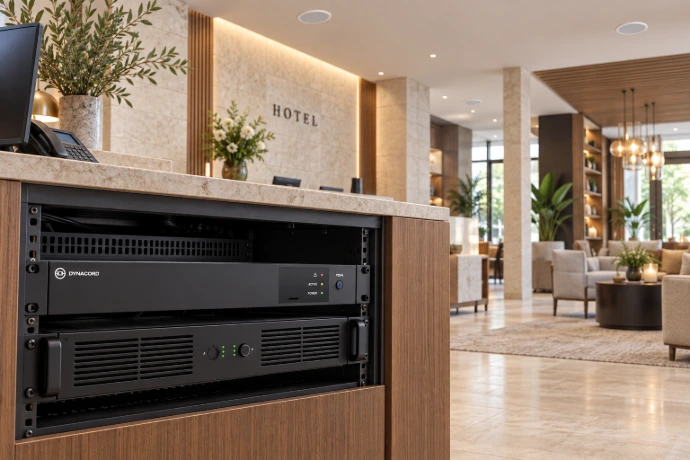

Hotels & Hospitality
Coordinate background music & announcements across reception areas, lounges and other zones, with local controls for staff through compatible VWP wall panels.

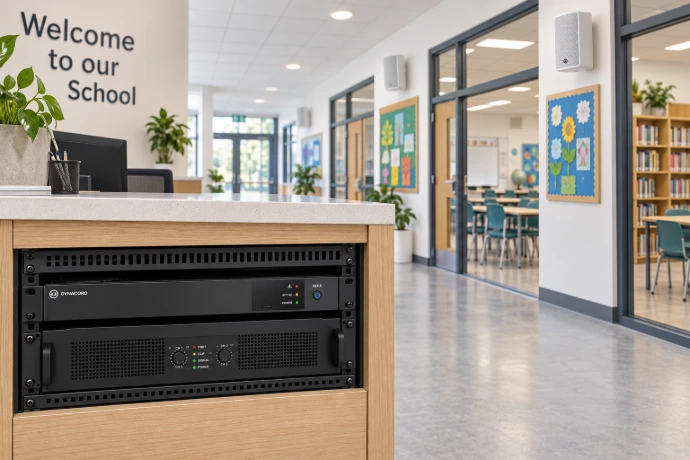

Schools & Education
Route speech, announcements and audio sources to selected zones across educational facilities, using compatible VCS-8 call stations for paging and system control.

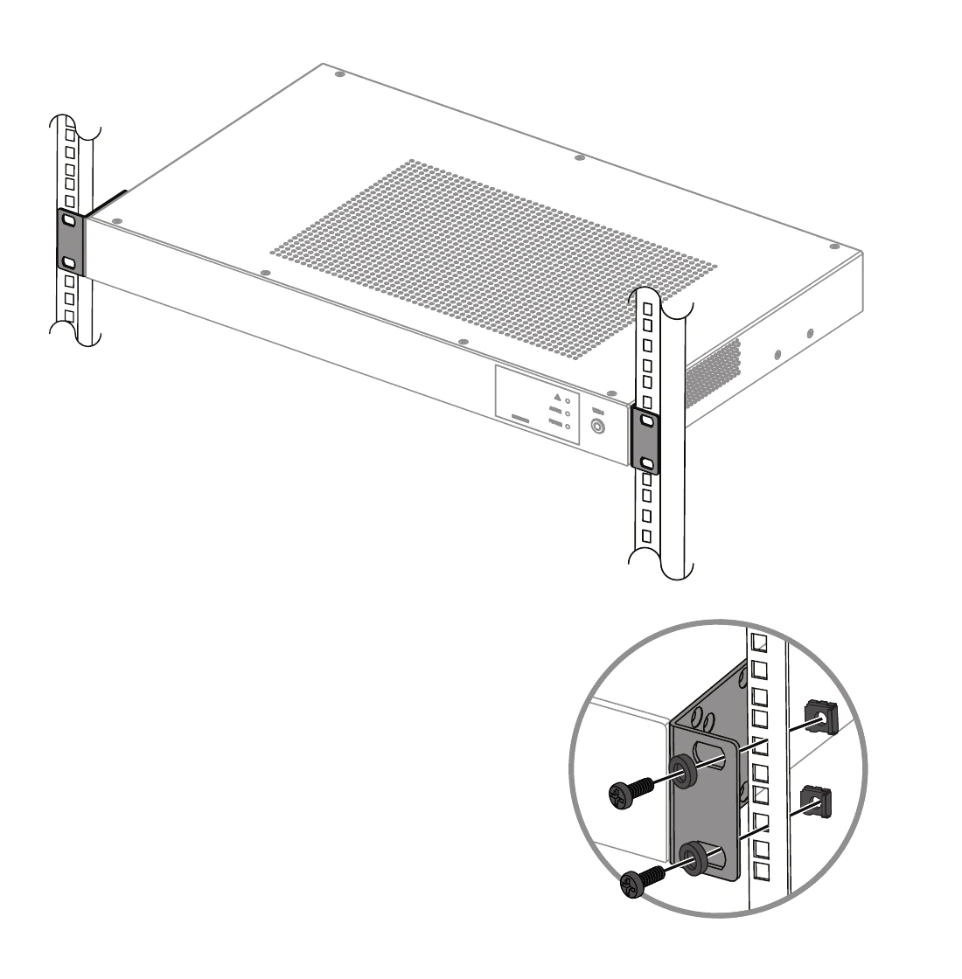

Rack Installation and Ventilation

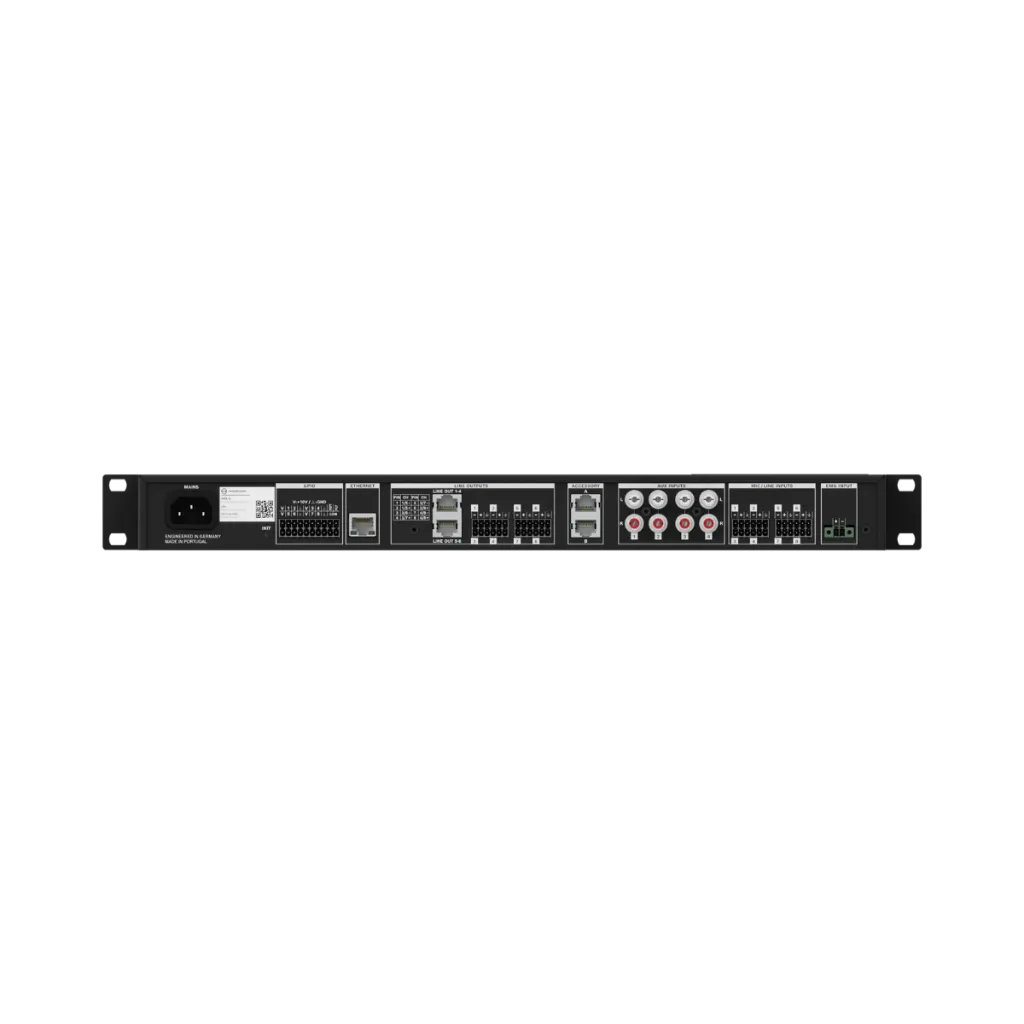

The Dynacord VZX-8 fits standard 19-inch racks or cases using the supplied rack ears. Allow access to rear connections and maintain clear ventilation around the processor for reliable operation.
Included Rack Ears
Supplied rack ears support installation in a standard 19-inch equipment rack. Rack-fixing screws and washers are not included.
Rear Airflow Clearance
Dynacord recommends an air duct of at least 50 mm between the rear panel and the cabinet or rack-case wall, extending to the top ventilation openings.
Operating Environment
Keep ventilation openings clear and install within the specified ambient temperature range of 5–40 °C.
Dynacord VZX-8 Technical Specifications
| Group | Specification | Official value |
|---|---|---|
| Overview | Product type | 8-zone audio processor |
| Overview | Total processed input sources | 20 |
| Audio inputs | Mic/Line inputs | 8 |
| Audio inputs | RCA inputs | 4, summed mono |
| Audio inputs | Digital sources: media player and message player | 8 mono or 4 stereo |
| Audio inputs | Emergency override input | 1, Euroblock |
| Audio outputs | Processed system zones | 8 |
| Audio outputs | Line outputs | 8 |
| Audio outputs | RJ45 line outputs | 2 × RJ45, in parallel with output connectors, for V Series amplifiers (AES72-1E) |
| DSP and mixing | Routing | Full Matrix DSP: any input to any zone output |
| DSP and mixing | Zone mixes | 8; multiple active inputs with configured levels |
| DSP and mixing | Virtual mixer | Automixer (AMM) for all Mic/Line inputs |
| DSP and mixing | Sample rate | 48 kHz |
| Audio performance | Frequency response | 20 Hz to 20 kHz (±0.5 dB) |
| Audio performance | THD+N | <0.003% at 0 dBu input/output, 0 dB gain, 1 kHz |
| Audio performance | Equivalent input noise | <−125 dB, 20 Hz to 20 kHz, A-weighted |
| Audio performance | Analog input to output latency | <0.31 ms |
| Storage | Internal storage | 300 MB |
| Storage | Included memory card | 32 GB microSD |
| Control | GPIO | 8, freely assignable as inputs or outputs |
| Control | Network control port | 1 × RJ45 (100/1000 Mbit) |
| Accessories | Accessory ports | 2 × RJ45 |
| Accessories | Maximum accessories | 8 per port; 16 per VZX-8 |
| Accessories | Maximum VCS-8 call stations | 8 per VZX-8 |
| Accessories | Maximum cable length | Up to 500 m (1,640 ft) per accessory port |
| Power | Supply | 100–240 VAC, 50–60 Hz (IEC appliance inlet) |
| Power | Consumption | 55 W maximum |
| Construction | Finish | RAL 9017 Traffic black |
| Construction | Dimensions with rack ears (W × H × D) | 483 × 44.2 × 269.5 mm |
| Construction | Dimensions without rack ears (W × H × D) | 438 × 44.2 × 270 mm |
| Construction | Net weight | 3.58 kg |
| Environment | Ambient temperature | 5–40 °C |
| Identification | Order number | VZX-8 | F.01U.426.620 |
