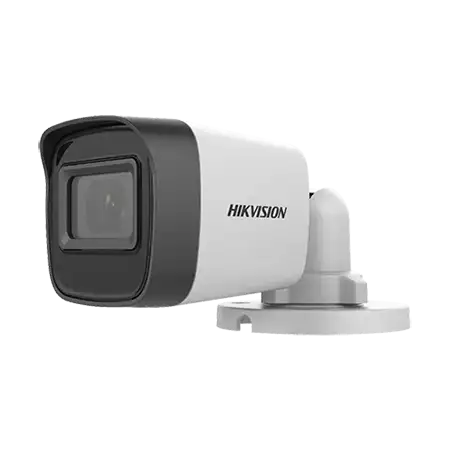

Hikvision DS-2CE16D0T-ITPF 2MP Fixed Mini Bullet Camera, CMOS Sensor, EXIR 25m IR, Outdoor EXIR Bullet, ICR, 0.01 Lux/F1.2, 12VDC, Smart IR, OSD Menu(Up the Coax), IP67, 3.6mm Lens, Support TVI/AHD/CVI/CVBS video signal output.

Resolution

2MP Fixed Mini Bullet Camera

IR Range

Smart IR, up to 25 m IR distance

Smart Features

DWDR, BLC, 2D-DNR, Day & Night with ICR

Video Output Mode

4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

Protection Level

Water and dust resistant (IP67)

Camera

Image Sensor

2 MP CMOS

Signal System

PAL/NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rate

TVI: [email protected], [email protected]
CVI: [email protected], [email protected]
AHD: [email protected], [email protected]
CVBS: PAL/NTSC

Min. illumination

0.01 [email protected](F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Lens

3.6 mm

Field of View

3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

Lens Mount

M12

Day & Night

ICR

WDR (Wide Dynamic Range)

Digital WDR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°

Menu

Image Mode

STD / HIGH-SAT

AGC

Yes

Day/Night Mode

Auto / Color / BW (Black and White)

White Balance

Auto/Manual

AE (Auto Exposure) Mode

DWDR / BLC / HLC / Global

Noise Reduction

2D DNR

Language

English

Function

Brightness, Sharpness, Smart IR

Interface

Video Output

Switchable TVI / AHD / CVI / CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F),
Humidity 90% or less (non-condensing)

Power Supply

12 VDC ± 25%

Power Consumption

Max. 2.2 W

Protection Level

IP67

Material

Plastic

IR Range

Up to 25 m

Communication

HIKVISION-C

Dimensions

57.9 mm × 60.9 mm × 138.8 mm (2.28" × 2.39" × 5.47")

Weight

Approx. 141 g (0.31 lb.)
