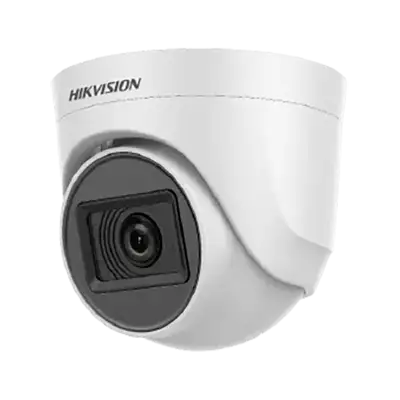

DS-2CE76D0T-ITPF 2.8mm

Hikvision DS-2CE76D0T-ITPF 2MP Turbo Indoor Fixed Turret Camera, EXIR 2.0: advanced infrared technology with 20m IR distance, 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS), Day & Night with ICR, Digital WDR, 12 VDC.

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Please get in touch for pricing & availability.

Type: Turbo HD

Shape: Turret

Resolution: 2MP

Technology: Infrared

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

Description

Resolution

2MP (1920 × 1080 resolution) Indoor Fixed Turret Camera

IR Range

EXIR 2.0: advanced infrared technology with 20m IR distance

Frame Rate

TVI: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

Smart Features

DWDR/BLC/HLC, AGC, Day & Night Mode

Video Output Mode

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Field Of View

Horizontal FOV: 101°

Vertical FOV:60°

Diagonal FOV: 122°

Camera

Image Sensor

2 MP CMOS

Signal System

PAL/NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rate

TVI: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC

Min. illumination

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Lens

2.8 mm

Field of View

2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°

Day & Night

ICR

WDR (Wide Dynamic Range)

Digital WDR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Image Mode

STD/HIGH-SAT

AGC

Yes

Day/Night Mode

Auto / Color / BW (Black and White)

White Balance

Auto/Manual

AE (Auto Exposure) Mode

DWDR / BLC / HLC / Global

Noise Reduction

2D DNR

Language

English

Function

Brightness, Sharpness, Smart IR

Interface

Video Output

Switchable TVI / AHD / CVI / CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Power Supply

12 VDC ± 25%

Power Consumption

Max. 2.2 W

Material

Plastic

IR Range

Up to 20 m

Communication

HIKVISION-C

Dimensions

Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")

Weight

Approx. 135 g (0.30 lb.)
