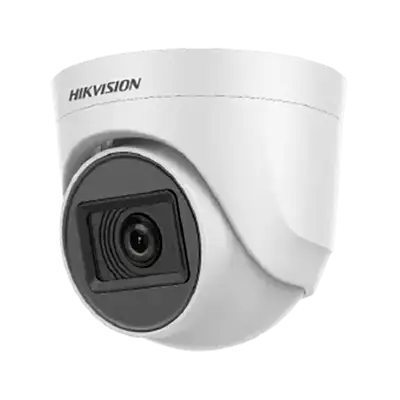

DS-2CE76D0T-ITPFS 2.8mm

prev

next

DS-2CE76D0T-ITPFS 2.8mm

Hikvision 2MP Audio Indoor Fixed Turret Turbo HD Camera, EXIR 2.0: Advanced IR technology with 20m IR distance, Built-in Mic, TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps, Horizontal FOV: 106.4°, Vertical FOV: 57.9°, Diagonal FOV: 124.6°, Day & Night with ICR, DWDR, Switchable TVI / AHD / CVI / CVBS Video Output.

Type
- Turbo HD
Shape
- Turret
Resolution
- 2MP
Audio Input / Output
- Built-in Microphone
Technology
- Infrared

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Please get in touch for pricing & availability.

Get notified when back in stock

Type: Turbo HD

Shape: Turret

Resolution: 2MP

Audio Input / Output: Built-in Microphone

Technology: Infrared

Description
Reviews

Resolution

2MP (1920 × 1080 resolution) Audio Indoor Fixed Turret Camera

IR Range

EXIR 2.0: advanced IR technology with 20m IR distance

Built-in Mic

Audio over Coaxial Cable, Built-in Mic

Frame Rate

TVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

Smart Features

DWDR/BLC/HLC/Global, 2D DNR, AGC, Day & Night Mode

Video Output Mode

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Function

Brightness, Sharpness, Mirror, Smart IR

Field Of View

Horizontal FOV: 106.4°

Vertical FOV: 57.9°

Diagonal FOV: 124.6°

Camera

Image Sensor

2MP CMOS

Signal System

PAL/NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rate

TVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

CVBS: PAL/NTSC

Min. illumination

0.01 Lux@ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Lens

2.8 mm

Field of View

2.8 mm, Horizontal FOV: 106.4°, Vertical FOV: 57.9°, Diagonal FOV: 124.6°

Lens Mount

M12

Day & Night

ICR

WDR (Wide Dynamic Range)

Digital WDR

Audio

Built-in Mic

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Menu

Image Mode

STD / HIGH-SAT

AGC

Yes

Day/Night Mode

Auto / Color / BW (Black and White)

White Balance

Auto / Manual

AE (Auto Exposure) Mode

DWDR / BLC / HLC / Global

Noise Reduction

2D DNR

Language

English

Function

Brightness, Sharpness, Mirror, Smart IR

Interface

Video Output

Switchable TVI / AHD / CVI / CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Power Supply

12 VDC ± 25%

Power Consumption

Max. 2.7 W

Material

Plastic

IR Range

Up to 20 m

Communication

HIKVISION-C

Dimensions

Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")

Weight

Approx. 140.5 g (0.31 lb.)
