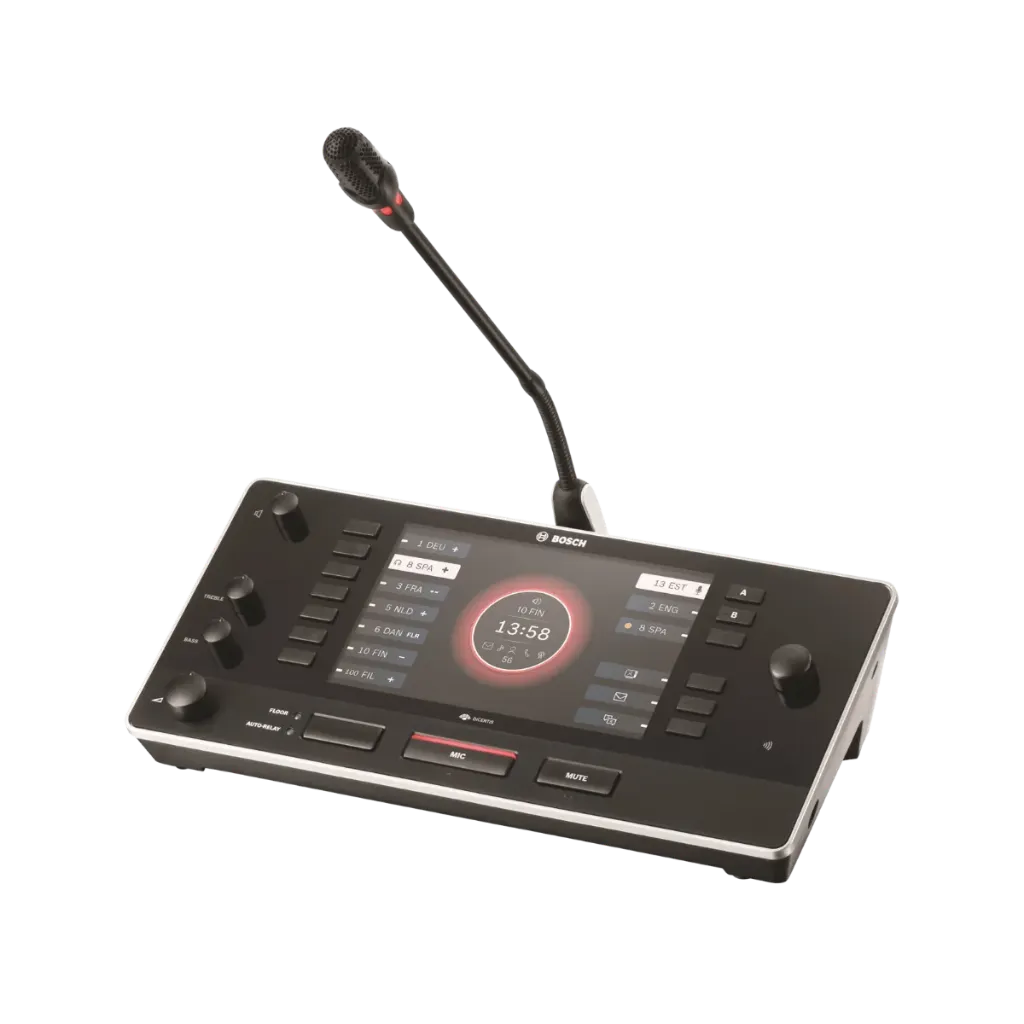

Bosch DCNM-IDESK Product Highlights
Explore the key capabilities of the Bosch DCNM-IDESK Interpreter Desk, including multilingual interpretation, intuitive controls, flexible connectivity and professional interpreter support.Supports Up to 100 Languages
Designed for professional interpretation environments with support for up to 100 languages.
7-Inch High-Contrast Display
Features a 7-inch TFT display for clear access to language, timing and interpreter information.
ISO 20109:2016 Compliant
Meets ISO 20109:2016 for simultaneous interpreting equipment, with up to ten desks per booth.
Flexible Network Connectivity
Dual RJ45-compatible connections support DICENTIS loop-through cabling or star-network installation using Cat.5e or better with PoE+.
Professional Interpreter Controls
Includes dedicated controls for language selection, microphone, mute, headphone volume, tone and floor/auto-relay.
Accessibility & Hearing Protection
Supports hearing protection, tactile feedback and audible feedback features to improve comfort and usability for interpreters.

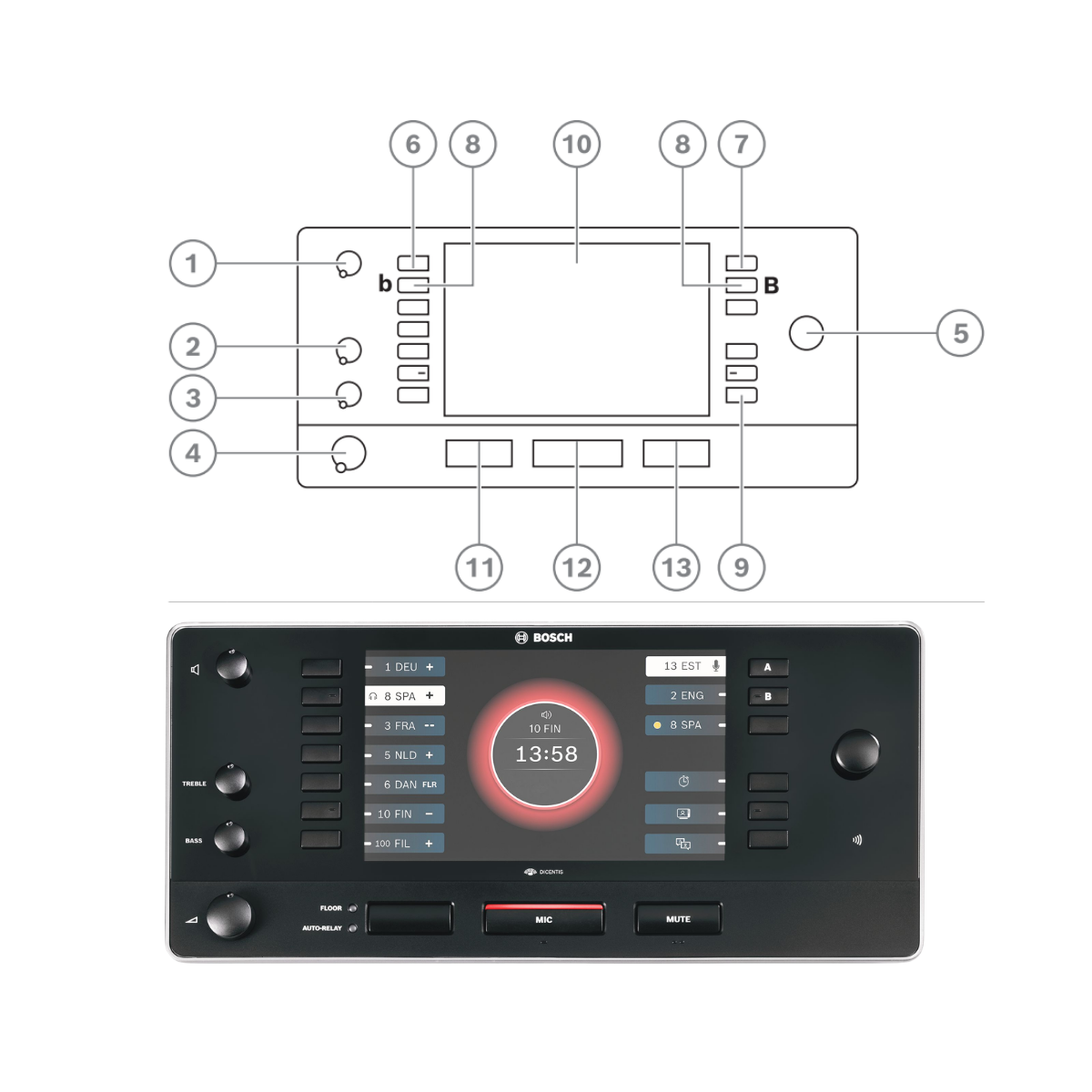

DCNM-IDESK Controls & Functions
Understand the main controls of the Bosch DCNM-IDESK Interpreter Desk, including audio adjustment, language selection, microphone operation, relay control and programmable functions.
DCNM-IDESK Connectivity & Installation
View the key connection and mounting points of the Bosch DCNM-IDESK, including dual RJ45 system connections, USB interface and fixed-installation mounting point.
1. Fixed Installation
Use the screw insert for fixed tabletop installation. The desk may also be used free-standing. For fixed mounting, use M3 screws with a maximum insertion depth of 5 mm (0.2 in) to avoid damaging the device.
2. RJ45 System Connections
Two RJ45-compatible input/output connections provide system communication and power. The desk supports loop-through cabling with DICENTIS system cables or star cabling using standard CAT-5e cables and PoE switches.
3. HDMI Video Output
The HDMI video output is only available on the DCNM-IDESKVID; the DCNM-IDESK has none.
4. USB Interface
The USB connector is used for the DCNM-IDESKINT On-air & Telephone Interface.
5. Reset Button
Press and hold the reset button for more than 10 seconds to restore the interpreter desk to its factory default settings.
Key specs
- 7-inch high-contrast display
- Up to 100 languages, 10 desks per booth
- 7 relay presets, A/B/C outputs
- ISO 20109:2016 compliant
- 3 headset sockets, hearing protection
- Socket for DCNM-MICS or MICL
- System cable or PoE+, 15 W
- 104 x 326 x 168 mm, 1500 g
Electrical | |
Supply Voltage | 100-240 Vac +/- 10% 50/60 Hz |
Maximum Power Consumption | 300 W |
Mechanical | |
Dimensions (H x W x D) | 340 x 195 x 82 mm (13.4 x 7.6 x 3.2 in) |
Weight (without batteries) | 1.8 kg (3.97 lb) |
Color | Traffic black (RAL 9017) |
Environmental | |
Operating Temperature | 5 ºC to +45 ºC (41 ºF to +113 ºF) |
Storage and Transport temperature | -20 ºC to +70 ºC (-4 ºF to +158 ºF) |
Relative Humidity | < 95 %, > 5 % |
Know before you buy
Quick answers about the DCNM-IDESK, and how it compares.
DCNM-IDESK or DCNM-IDESKVID?
| DCNM-IDESK | DCNM-IDESKVID | |
|---|---|---|
| HDMI video output | No | Yes: shows the participant speaking or their presentation, up to 1080p |
| Quick buttons (default) | Clock, language overview | Clock, video source, language overview |
| Power consumption | 15 W | 18 W |
| Weight | 1500 g | 1540 g |
Everything else is the same: 7-inch high-contrast display, up to 100 languages, up to ten desks per booth, 7 relay presets, ISO 20109:2016. Choose the IDESKVID when interpreters should see the speaker or the presentation on a screen.
What can the interpreter control at the desk?
- Languages: 7 relay presets showing number, abbreviation and quality, and A, B (and C) output buttons showing selection, state and engaged languages. Floor / auto-relay button with LEDs.
- Microphone: microphone button with red on-air and green "booth not in use" LEDs, a mute button, and a red on-air LED at the rear.
- Listening: headphone volume, bass and treble, and loudspeaker volume.
- Setup: a rotary control with push button, and language and system configuration from the desk's own menu.
All controls give tactile feedback, with audible feedback and raised dots for visually impaired interpreters.
Which microphone and headphones can be used?
The desk takes a DCNM-MICS (short) or DCNM-MICL (long) stem microphone, ordered separately.
It has three 3.5 mm headphone / headset sockets (left, right and bottom) and switches to the headset microphone automatically. Hearing protection works with the Bosch HDP-IHDP interpreter headphones and HDP-IHDS interpreter headset (ask us), Bosch LBB3443, HDP-LWN and HDP-HQ, and listed models from Sennheiser, AKG, Shure, Bang and Olufsen and others.
How is the desk connected and powered?
Two RJ45 sockets carry system data and power: loop-through with DICENTIS system cables, or star cabling with Cat. 5e (or better) and PoE+ switches (IEEE 802.3at class 4). 48 VDC, 15 W. Hot plug and play.
Tabletop, 30° slope, 104 x 326 x 168 mm, RAL 9017 Traffic black. In the box: the desk, a quick installation guide and a CE information sheet.
How does interpretation work on DICENTIS?
Interpreters work at DCNM-IDESK or DCNM-IDESKVID desks, up to ten per booth, for up to 100 languages. The desks join the DICENTIS system like any other device: DICENTIS system cables with loop-through, or star cabling with Cat. 5e (or better) and PoE+ switches. Hot plug and play.
Participants hear the interpretation:
- On their own seat: language selection on the DCNM-DE, DCNM-DSL or DCNM-FSLP, with a Premium license per participant.
- On infrared receivers: through Bosch INTEGRUS with the INT-TXO transmitter (ask us).
- Over Dante: with the DCNM-LDANTE license.
Does interpretation need a software license?
No. Interpreting from the DCNM-IDESK and DCNM-IDESKVID works without a license once the system is registered.
The Ultimate license (one per participant) adds:
- Interpretation settings per meeting, also from the Meeting Application.
- Interpreting control from Synoptic.
- An interface for interpreting control from a non-DICENTIS source, such as remote simultaneous interpretation (RSI).
- Free choice of the desk's quick buttons: language overview, clock, speak slow notification, headphone selection, and video source on the IDESKVID.
Participants who choose their language on their own device need a Premium license.
Who supplies Bosch DICENTIS in Pakistan, and what warranty do I get?
Electronic Security Company (ESCO) is the only authorized distributor of Bosch, Dynacord and Electro-Voice in Pakistan, so every DICENTIS product is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to an ESCO office and after inspection it is repaired or replaced as needed.
We supply, design and install complete conference and voting systems for parliaments, government offices, boardrooms and auditoriums, with after-sales service nationwide. Prices are quoted per project: tell us your room and number of seats and we will send a quote.
