DCNM-FSLP Flush Language Selector Panel, 1.44" Display
Everything you need to know about this DICENTIS flush language selector before specifying it for your project
The DCNM-FSLP is a flush-mount language selector used in DICENTIS conference systems with simultaneous interpretation. Participants use it to choose their listening language and set their headphone volume during multilingual meetings in parliaments, assemblies, international conferences, and boardrooms.
No. It connects to a DCNM-FBD2 flush base device via RJ12 for data and via the headphone connection for audio. Each DCNM-FBD2 supports one DCNM-FSLP per side.
Up to 100 languages. They can be shown in native characters (for example Arabic or Chinese script), as ISO abbreviations, or as language numbers.
It snaps into a 2 mm thick metal panel for a clean flush finish. For other surfaces such as wood, it can be installed using the DCN-FCOUP flush coupler with the DCNM-FEC flush end cap.
Electronic Security Company is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. We supply, design and install complete conference and interpretation systems for parliaments, government offices, boardrooms and auditoriums, with genuine warranty support and after-sales service nationwide.

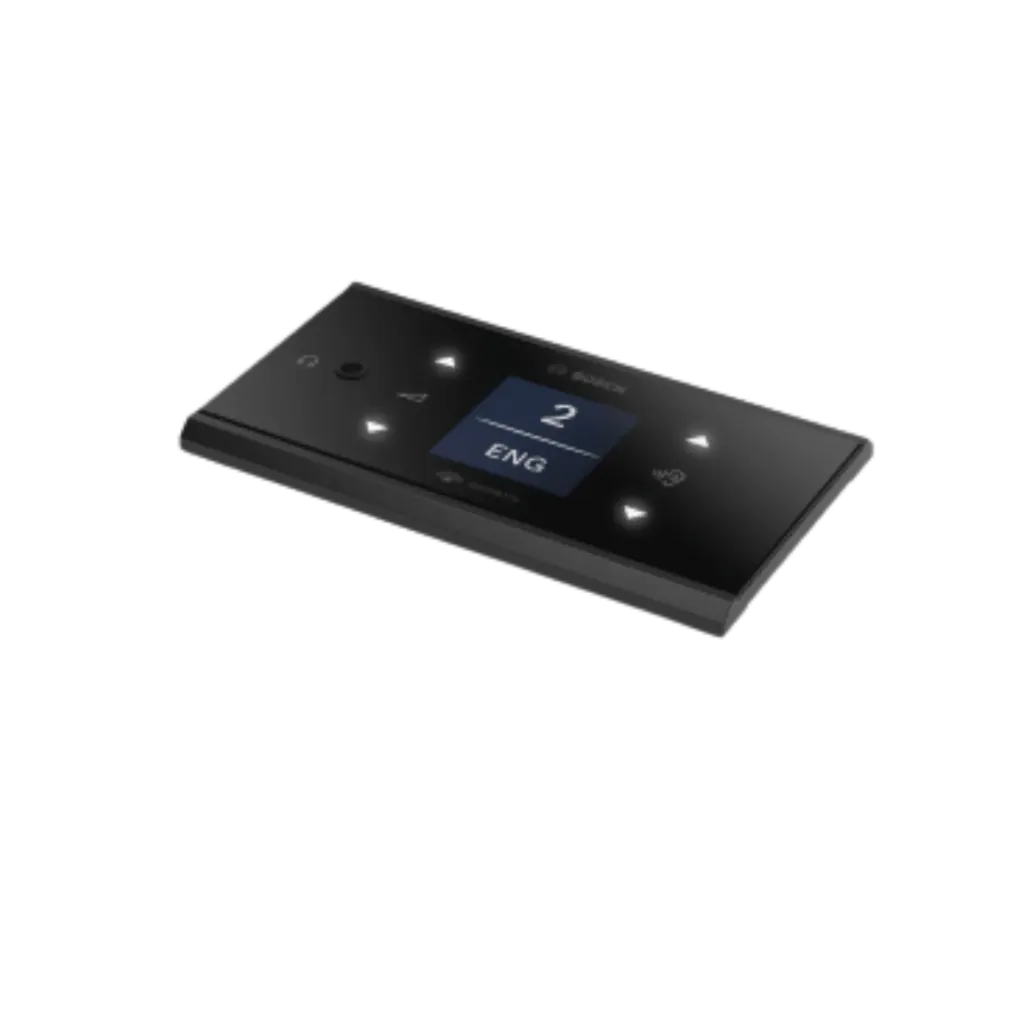

Bosch DICENTIS DCNM-FSLP Flush Language Selector Panel
The DICENTIS DCNM-FSLP is a flush-mount language selector panel that lets participants listen to the speaker or interpreter in their preferred language through headphones. It supports up to 100 languages, shown in their native characters, as ISO abbreviations, or as language numbers. That makes it ideal for parliaments, international conferences, and multilingual meeting rooms.
Language selection starts automatically when headphones are plugged in. If a participant has a preferred language set in the system, it's selected for them. Illuminated touch buttons let participants scroll through languages and adjust headphone volume. The display switches off when no headphones are connected or after about 8 seconds without use, saving energy and keeping the meeting room free of distractions.
Premium Flush Language Selector
A slim, flush-mount DICENTIS panel that lets every participant listen in their preferred language during multilingual meetings.
Audio Performance
Frequency Response: 100 Hz – 20 kHz. THD+N: 0.1%. Dynamic Range: 90 dB. Signal-to-Noise: 90 dB. Headphone Output: 65 mW max into 32Ω.
Up to 100 Languages
Languages shown in native characters, ISO abbreviations, or language numbers, so every participant finds their language easily.
Automatic Language Selection
Activates when headphones are plugged in and automatically selects the participant's preferred language if one is set in the system.
1.44" Display with Touch Buttons
A 1.44" LCD with 4 illuminated touch buttons: language selection on the right, headphone volume on the left.
Anti-Feedback Volume Control
Headphone volume is automatically reduced when the participant speaks, preventing acoustic feedback for clear interpretation.

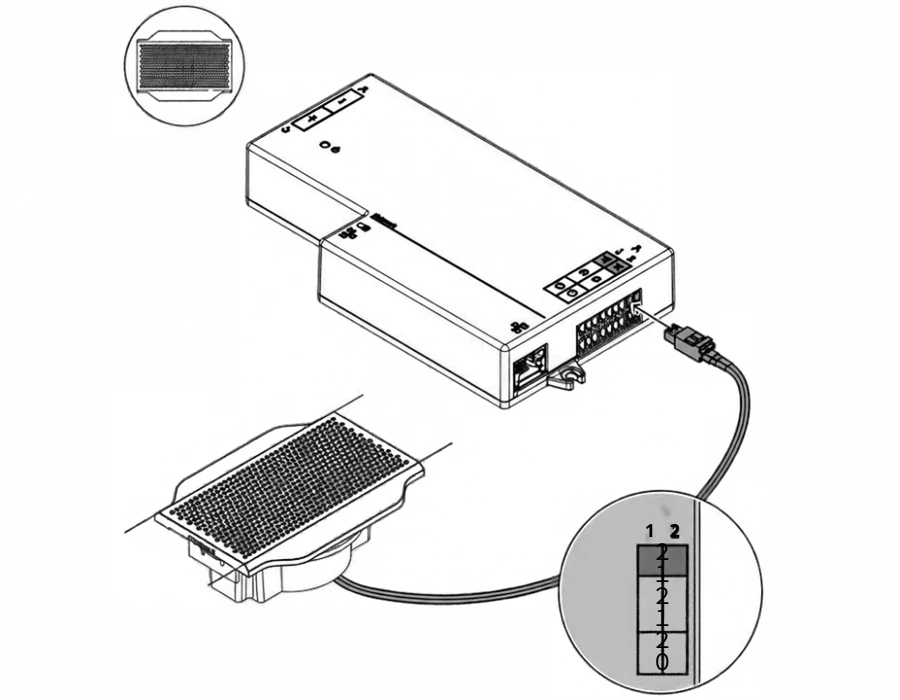

Simple Two-Cable Installation
The DCNM-FSLP connects to the DCNM-FBD2 flush base device with just two cables, both included in the box:
- Control connection (RJ12): The 30 cm RJ12 cable runs from the panel's control port to the DCNM-FBD2. It carries data, power and language information over the DICENTIS system.
- Audio connection (headphone): The headphone connection cable links the panel's headphone port to the DCNM-FBD2's headphone output. It delivers the selected interpretation channel to the participant's headphones.
- Each DCNM-FBD2 supports one DCNM-FSLP per side, so a single base device can serve two participants sitting side by side.
Enhanced User Experience
High-quality loudspeakers and microphones deliver clear audio, even when active together. Shock-mount design reduces noise, while identification secures voting. Language selection is automated for participant convenience.
Easy Integration
Flush modules work seamlessly with DICENTIS tabletop devices and the interpreter desk. Settings are adopted instantly without restart, while the server-based system supports third-party apps, cloud services, and remote maintenance.
Easy, Cost-Effective Installation
The DICENTIS Flush Range offers a modular design for any meeting type. It supports future upgrades, uses existing IP and PoE, and installs quickly with a click-to-fit mechanism. Sharing the Bosch DCN footprint, it allows easy replacement. Dual-seat setups can host up to four delegates, saving space and cost.
Versatile Microphone Options
Compact flush microphones fit where space is limited. The audio interface connects third-party microphones, supports extra inputs, and provides 48 V phantom power.
Structured Meetings
The modular design empowers specifiers and installers to tailor the system to different meeting types. With dual-seat setups supporting up to four delegate positions, meetings can be organized efficiently while saving space and cost.
Convenient Language Selection
Headphone language selection can be automated, ensuring participants quickly access their preferred interpretation channel. Seamless integration with the DICENTIS interpreter desk provides a fully ISO-compliant interpretation solution.
Parliamentary-Style Voting
Identification-based access allows controlled voting functionality, preventing fraud and ensuring accurate results. Voting can be managed directly through the DICENTIS Flush modules for structured decision-making.
Quick Identification
Each participant’s identification enables secure access to system features such as voting and language selection. This ensures smooth authentication and prevents unauthorized use during sessions.
Customize your DICENTIS Flush in wood, stone, metal or RAL color
Match DICENTIS Flush devices to any interior. System integrators, architects and end users can order custom finishes from the RAL Classic and RAL Design color palettes, or choose from a wide range of wood, stone and metal designs.
Lets Talk!
Get in touch for a free consultation, survey, pricing and demonstration session.
Specifications: Bosch DICENTIS DCNM-FSLP
General
| Specification | Value |
|---|---|
| Model | DCNM-FSLP |
| Order number | F.01U.402.927 |
| Product type | Flush language selector panel |
| System | DICENTIS Conference System |
Audio
| Specification | Value |
|---|---|
| Frequency response (-3 dB) | 100 Hz – 20 kHz |
| THD+N | 0.1% |
| Dynamic range | 90 dB |
| Signal-to-noise ratio | 90 dB |
Headphones
| Specification | Value |
|---|---|
| Nominal output level | 0 dBV |
| Maximum output level | 3 dBV |
| Minimum impedance | 32 Ω |
| Maximum output power | 65 mW |
| Connector | 3.5 mm stereo jack, plus solder/connector option for an external headphone socket |
User Interface
| Specification | Value |
|---|---|
| Display type | LCD |
| Display size | 1.44 in |
| Controls | 4 illuminated touch buttons (left: headphone volume, right: language selection) |
| Languages | Up to 100 (native characters, ISO abbreviation or language number) |
| Display auto-off | When headphones are disconnected, or after ~8 seconds without use |
Connections
| Specification | Value |
|---|---|
| Control interface | RJ12 to DCNM-FBD2 and other units (CAN) |
| Audio | Via DCNM-FBD2 headphone connection |
| Per base device | 1 DCNM-FSLP per DCNM-FBD2 side |
Electrical
| Specification | Value |
|---|---|
| Power consumption | 0.50 W |
| Operating voltage | 5 V DC |
Mechanical
| Specification | Value |
|---|---|
| Mounting | Snap-fit into a 2 mm metal panel, or with DCN-FCOUP flush coupler and DCNM-FEC end cap |
| Dimensions (H × W × D) | 56 × 100 × 51 mm (2.20 × 3.94 × 2.01 in) |
| Weight | 67 g (0.15 lb) |
| Color | RAL 9017 Traffic Black |
Environmental
| Specification | Value |
|---|---|
| Standard | IEC 60721: storage (1K3), transport (2K2), operation (3K4) |
| Operating temperature | 5°C to 45°C (41°F to 113°F) |
| Storage temperature | -5°C to 45°C (23°F to 113°F) |
| Transport temperature | -30°C to 70°C (-22°F to 158°F) |
| Relative humidity (operating) | 5% – 90%, non-condensing |
Parts Included
| Quantity | Component |
|---|---|
| 1 | DCNM-FSLP flush language selector panel |
| 1 | 30 cm cable |
| 1 | Headphone connection cable |
