Conference Tables
Ideal for creating discreet flush-mounted participant positions within professional conference tables.
DICENTIS Flush range
Modular, IP-based conferencing with cost-effective installation convenience
DICENTIS Flush range
Modular, IP-based conferencing with cost-effective installation convenience
FAQs About Bosch DCNM-FBD2
Get quick answers about the Bosch DCNM-FBD2 Flush Base Device 2, including participant capacity, connectivity, installation options, system compatibility and availability in Pakistan.
The DCNM-FBD2 supports 2 participant positions as standard. With the appropriate dual-use license, it can support up to 4 participant positions, with microphones and loudspeakers shared between positions.
The DCNM-FBD2 provides:
- 2 × RJ12 connectors for button modules
- 2 × balanced audio inputs for DCNM-FMCP
- 2 × RJ45-compatible connectors for system communication and power
- 2 × loudspeaker outputs for DCNM-FLSP
Yes. The device supports loop-through connection to another Flush base device, allowing multiple units to be integrated within a DICENTIS Flush installation.
The device can be mounted under a tabletop or seat, in an armrest, wall-mounted or inside a cable duct, depending on the installation design.
Electronic Security Company (ESCO) is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. ESCO supplies, designs and installs professional conference and audio solutions with genuine warranty support and nationwide after-sales service.
Bosch DCNM-FBD2 Product Highlights

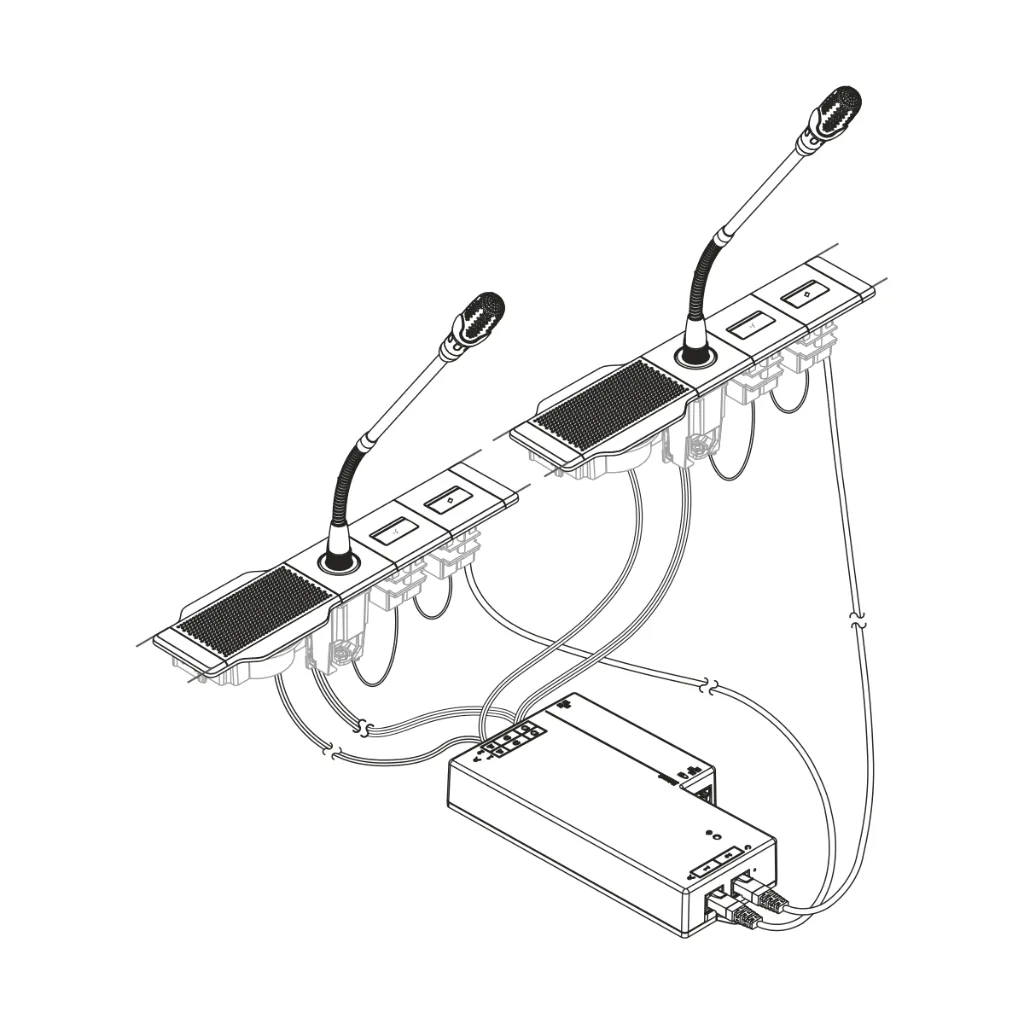

Explore the key capabilities of the Bosch DCNM-FBD2 Flush Base Device 2, designed for flexible participant setups and reliable DICENTIS Flush integration.Standard 2-Participant Mode

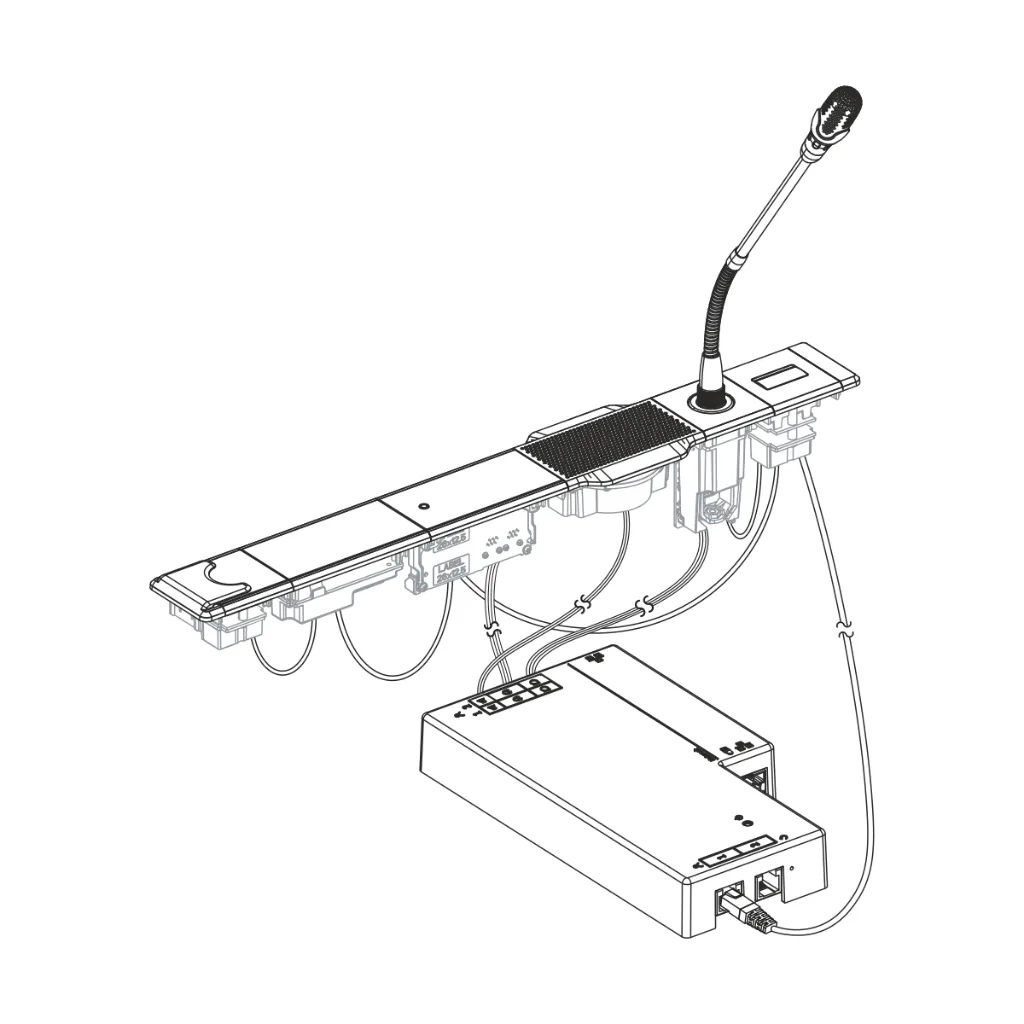

Supports 2 participant positions as standard, with each input assignable to its own seat number.
Up to 4 Participant Positions
With a dual-use license, the DCNM-FBD2 can support up to 4 participant positions with shared microphones and loudspeakers.DICENTIS Loop-Through
Supports loop-through connection to other Flush base devices using the DICENTIS system cabling architecture.
Flexible Module Connectivity
Provides RJ12, balanced audio, RJ45 and loudspeaker connections for integrating button modules, microphone panels and loudspeakers.
Flexible Mounting Options
Can be installed under a tabletop or seat, in an armrest, wall-mounted or inside a cable duct.
Compact 48 VDC Base Device
Operates at 48 VDC with 5 W base-device power consumption, helping support compact flush-system installations.

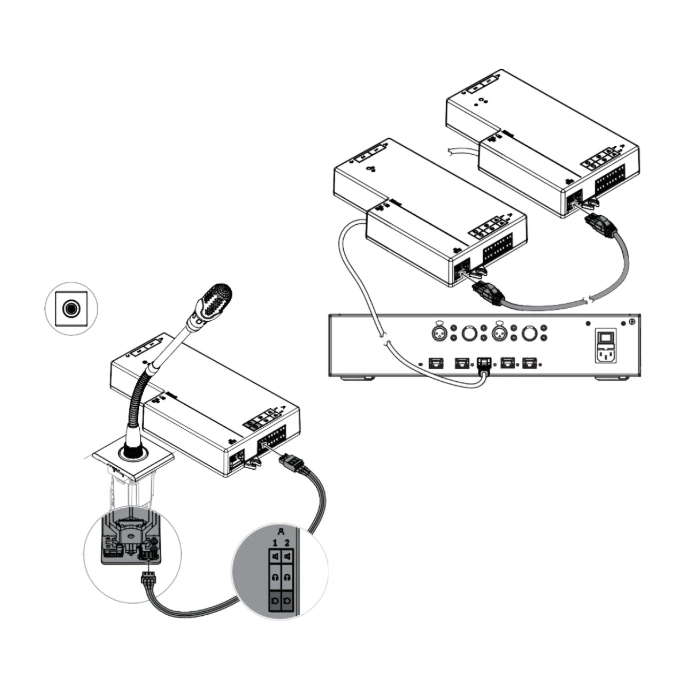

Bosch DCNM-FBD2 Connectivity & Installation
Explore how the Bosch DCNM-FBD2 integrates with DICENTIS system cabling, flush button panels, microphones and loudspeakers for flexible conference installations.
DICENTIS System Connections
Two system connectors allow the DCNM-FBD2 to daisy-chain with DICENTIS cables for communication and power.
Loop-Through Connection
The DCNM-FBD2 can be daisy-chained to another Flush Base Device using DICENTIS cabling.
Button Panel Connections
RJ12 connections provide power and control for compatible button panels such as DCNM-FMICB and DCNM-FPRIOB.
Microphone Connections
Two balanced microphone connections are provided for DCNM-FMCP Flush Microphone Connection Panels.
Loudspeaker Outputs
Two loudspeaker outputs connect DCNM-FLSP Flush Loudspeaker Panels, supporting two participant seats.
Applications of Bosch DCNM-FBD2
The Bosch DCNM-FBD2 is designed for flush-mounted DICENTIS conference installations where participant controls, microphones and loudspeakers need to be integrated discreetly into furniture.
Chair Armrests
Supports clean integration inside chair armrests for compact and unobtrusive participant control positions.
Under-Table Installations
Can be mounted under tabletops or seats to keep system hardware hidden while maintaining easy connectivity.
Multi-Participant Flush Setups
Supports two participant positions as standard and up to four positions with the appropriate dual-use license.
Applications of Bosch DCNM-FBD2
The Bosch DCNM-FBD2 is designed for flush-mounted DICENTIS conference installations where participant controls, microphones and loudspeakers need to be integrated discreetly into furniture.

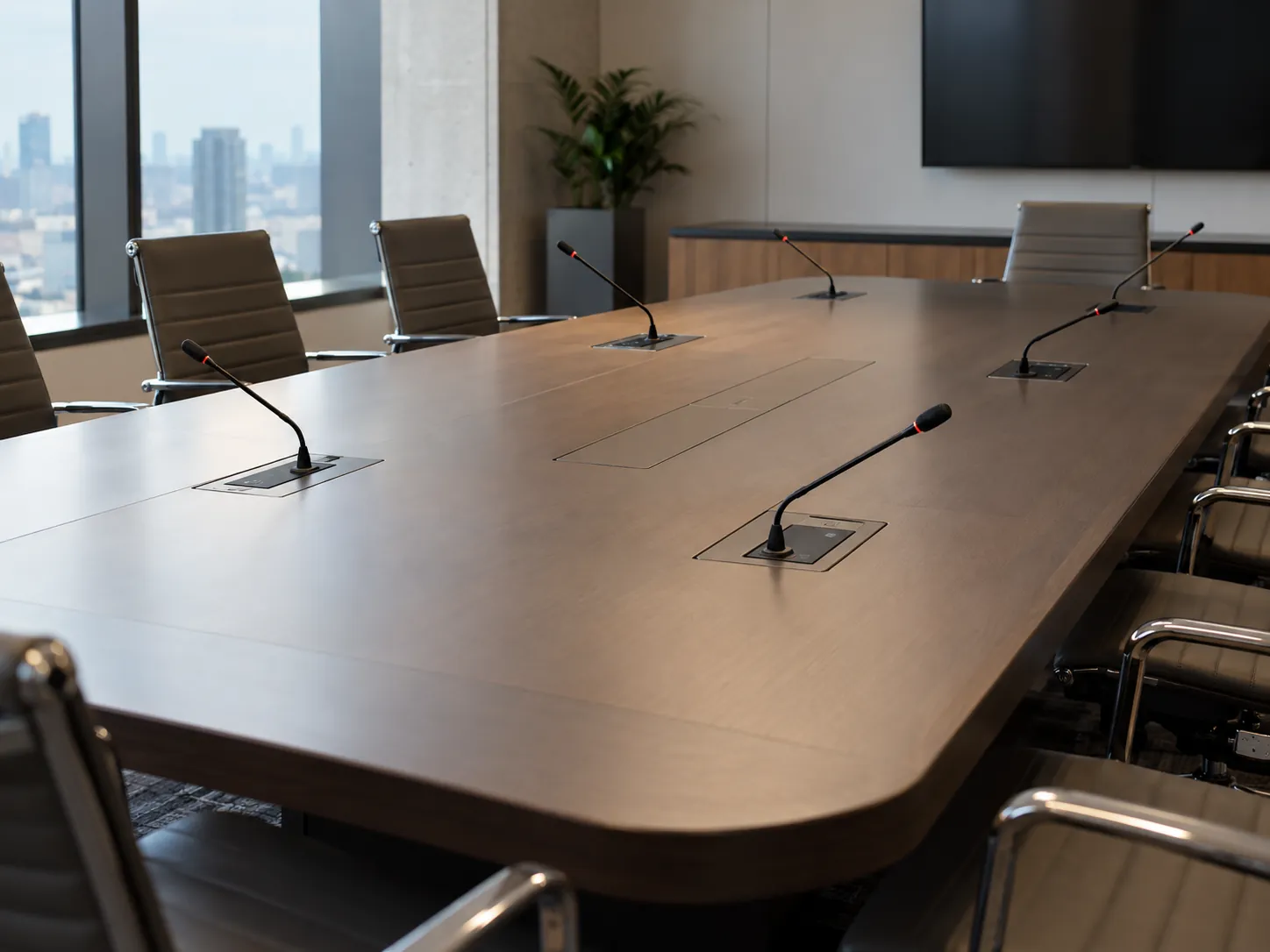

Conference Tables
Ideal for creating discreet flush-mounted participant positions within professional conference tables.

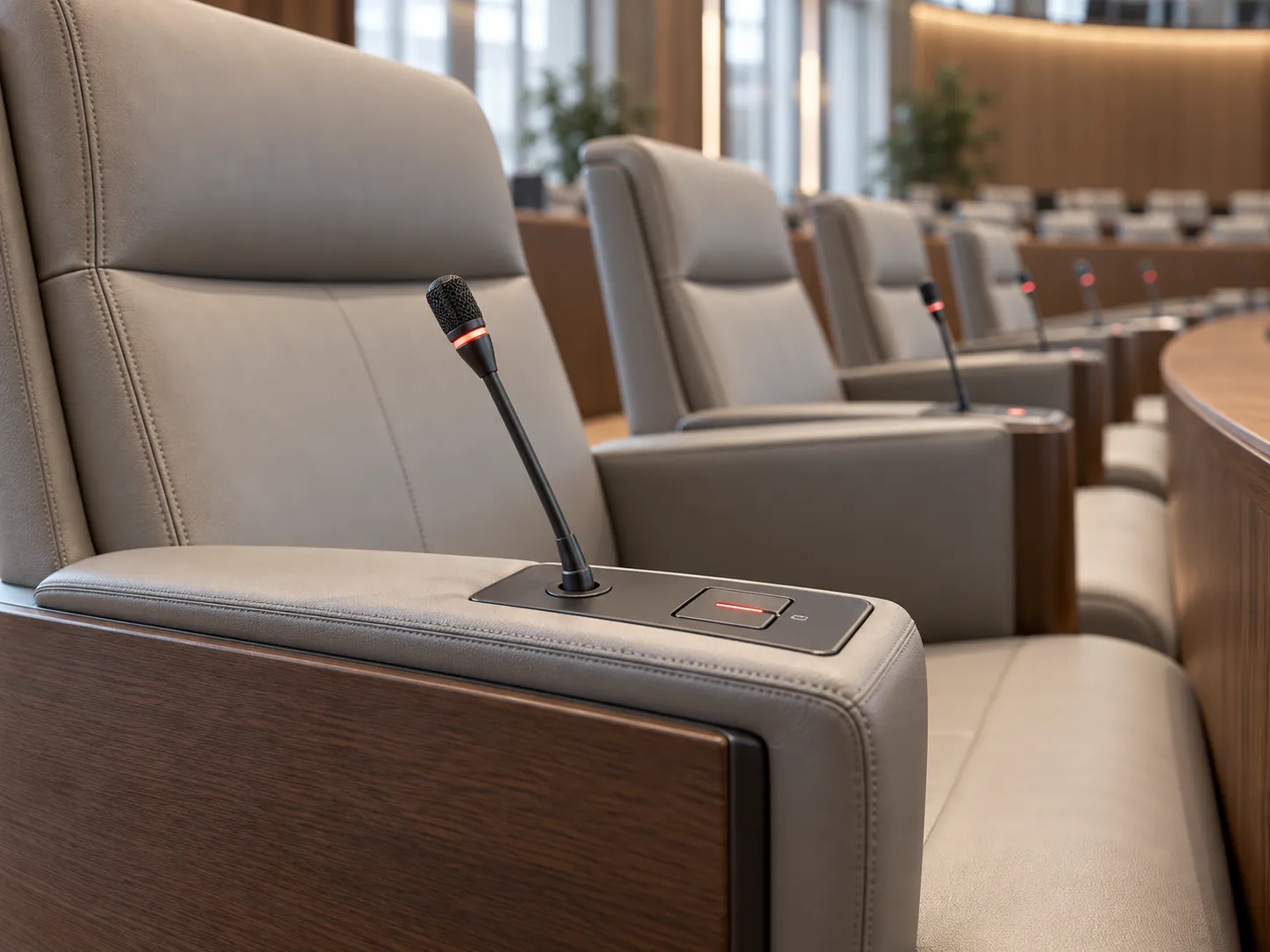

Chair Armrests
Supports clean integration inside chair armrests for compact and unobtrusive participant control positions.

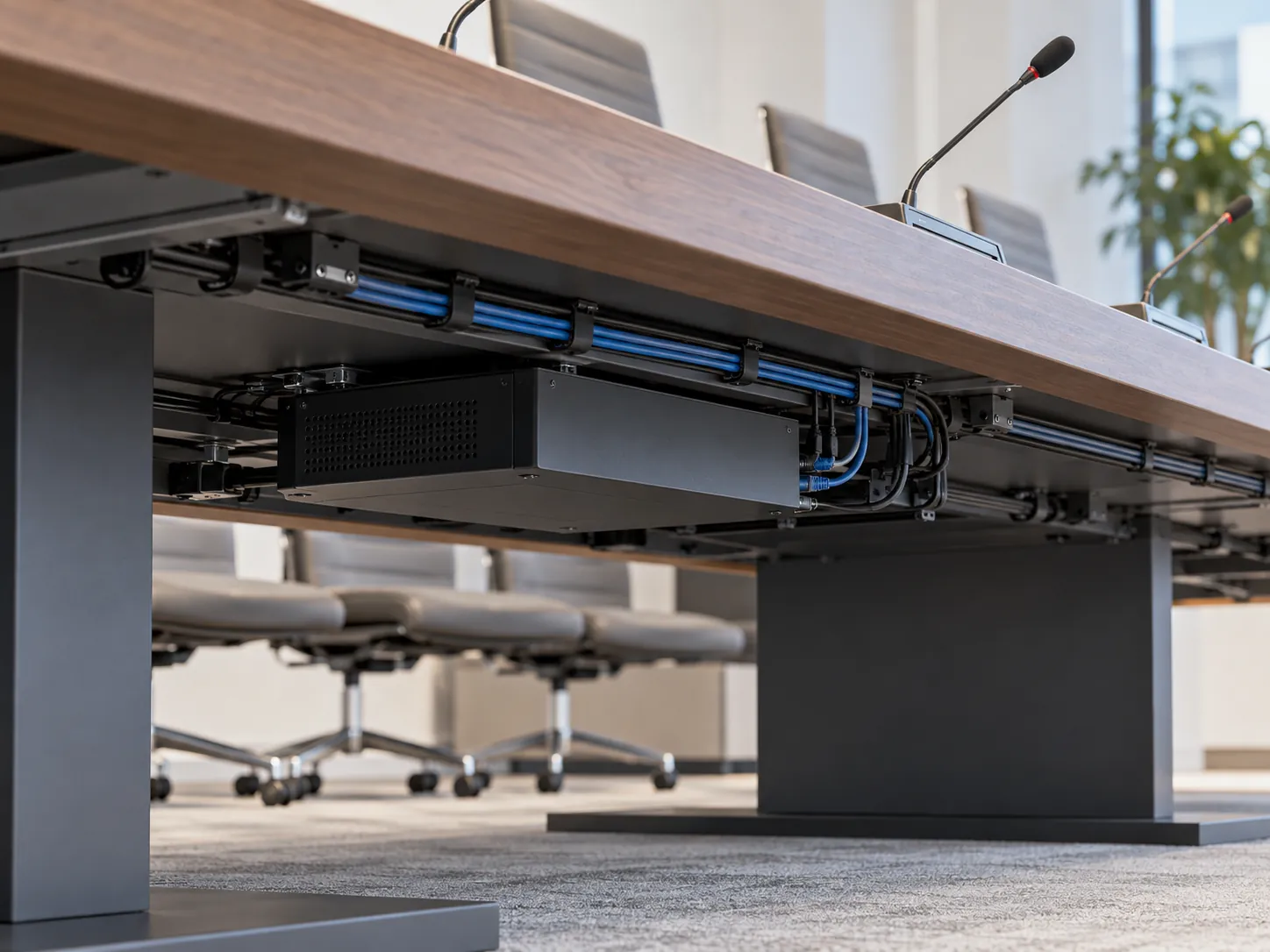

Under-Table Installations
Can be mounted under tabletops or seats to keep system hardware hidden while maintaining easy connectivity.

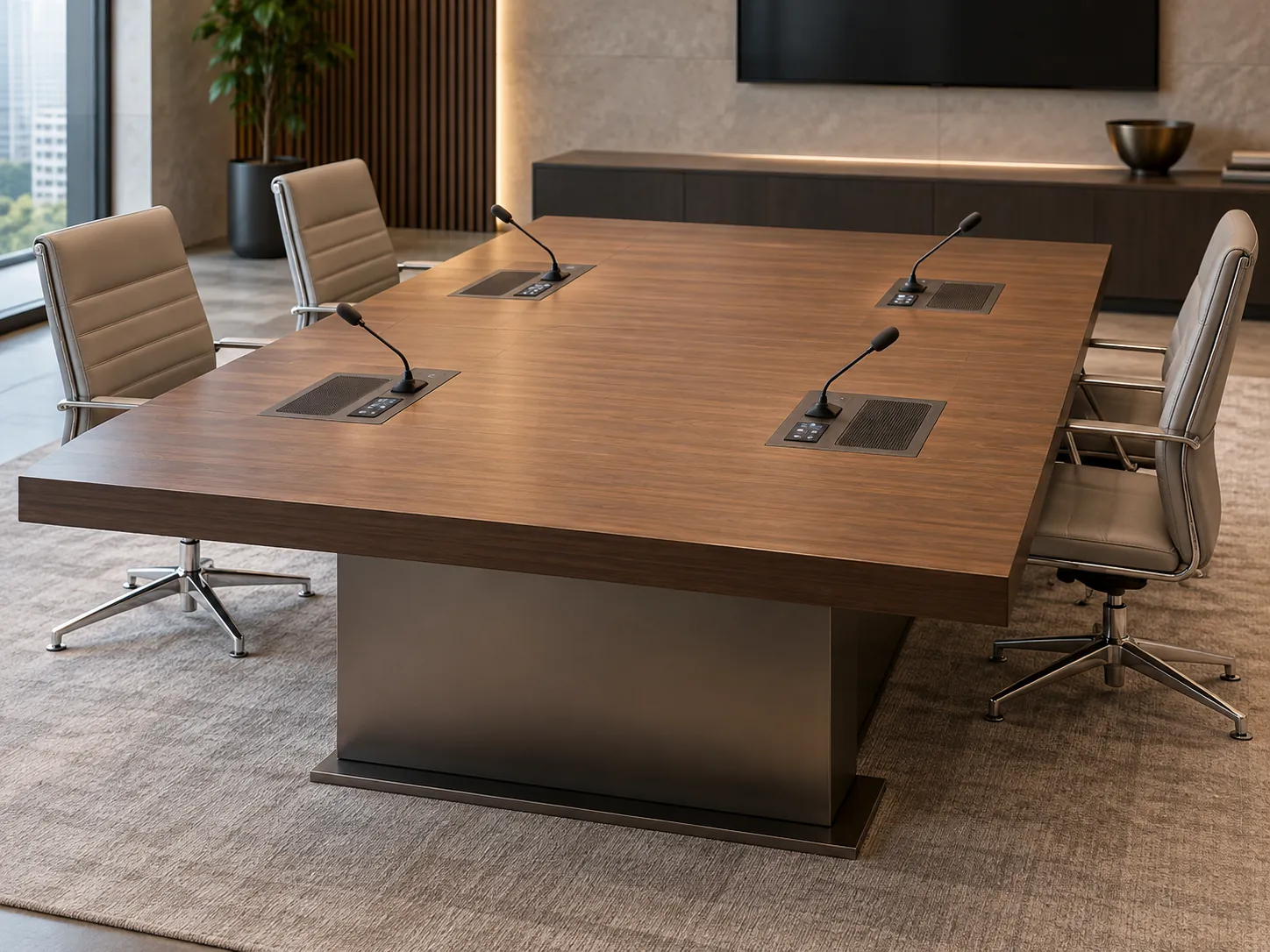

Multi-Participant Flush Setups
Supports two participant positions as standard and up to four positions with the appropriate dual-use license.
Enhanced User Experience
High-quality loudspeakers and microphones deliver clear audio, even when active together. Shock-mount design reduces noise, while identification secures voting. Language selection is automated for participant convenience.
Easy Integration

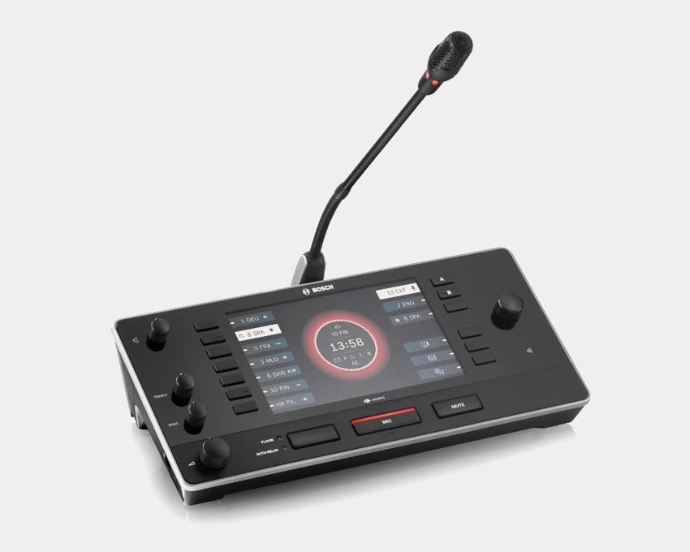

Flush modules work seamlessly with DICENTIS tabletop devices and the interpreter desk. Settings are adopted instantly without restart, while the server-based system supports third-party apps, cloud services, and remote maintenance.
Easy, Cost-Effective Installation
The DICENTIS Flush Range offers a modular design for any meeting type. It supports future upgrades, uses existing IP and PoE, and installs quickly with a click-to-fit mechanism. Sharing the Bosch DCN footprint, it allows easy replacement. Dual-seat setups can host up to four delegates, saving space and cost.
Versatile Microphone Options
Compact flush microphones fit where space is limited. The audio interface connects third-party microphones, supports extra inputs, and provides 48 V phantom power.
Structured Meetings
The modular design empowers specifiers and installers to tailor the system to different meeting types. With dual-seat setups supporting up to four delegate positions, meetings can be organized efficiently while saving space and cost.
Convenient Language Selection
Headphone language selection can be automated, ensuring participants quickly access their preferred interpretation channel. Seamless integration with the DICENTIS interpreter desk provides a fully ISO-compliant interpretation solution.
Parliamentary-Style Voting
Identification-based access allows controlled voting functionality, preventing fraud and ensuring accurate results. Voting can be managed directly through the DICENTIS Flush modules for structured decision-making.
Quick Identification
Each participant’s identification enables secure access to system features such as voting and language selection. This ensures smooth authentication and prevents unauthorized use during sessions.
Customize your DICENTIS Flush in wood, stone, metal or RAL color
Match DICENTIS Flush devices to any interior. System integrators, architects and end users can order custom finishes from the RAL Classic and RAL Design color palettes, or choose from a wide range of wood, stone and metal designs.
Lets Talk!
Get in touch for a free consultation, survey, pricing and demonstration session.

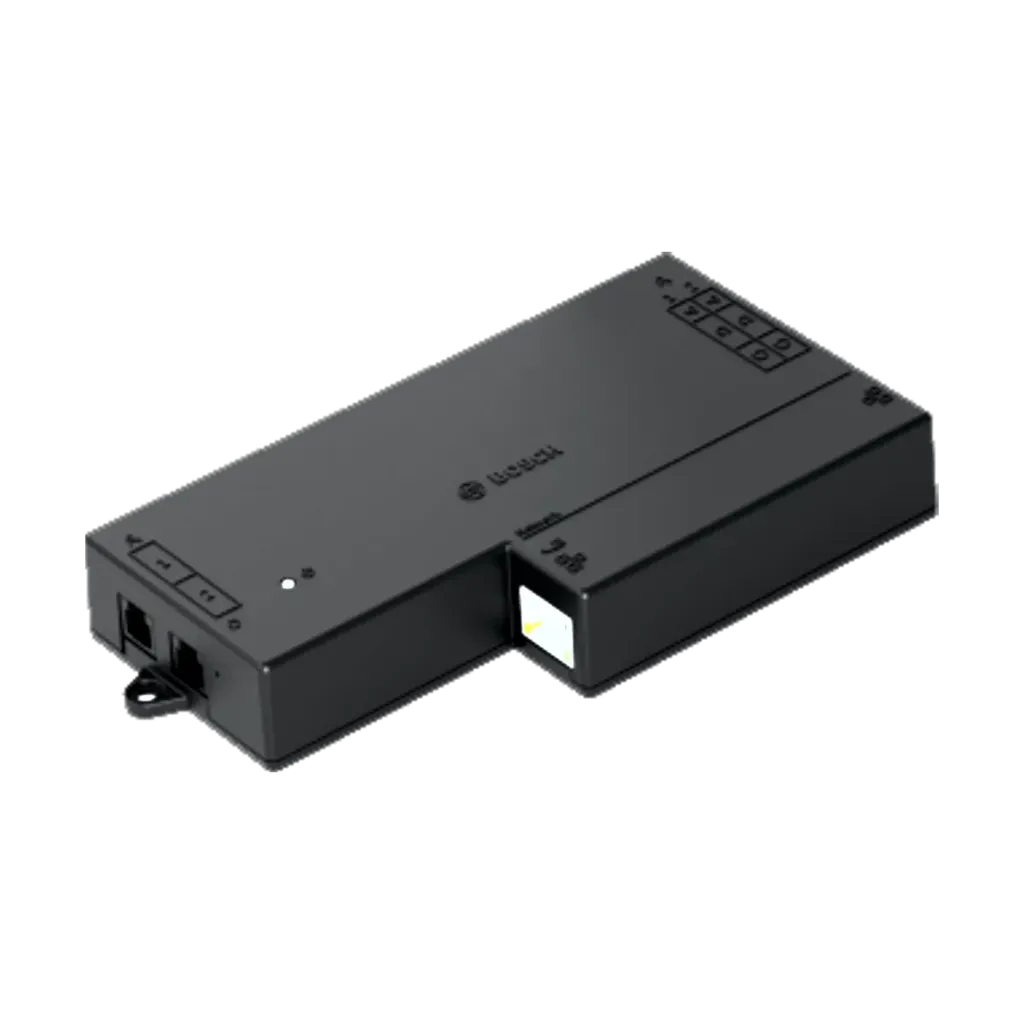

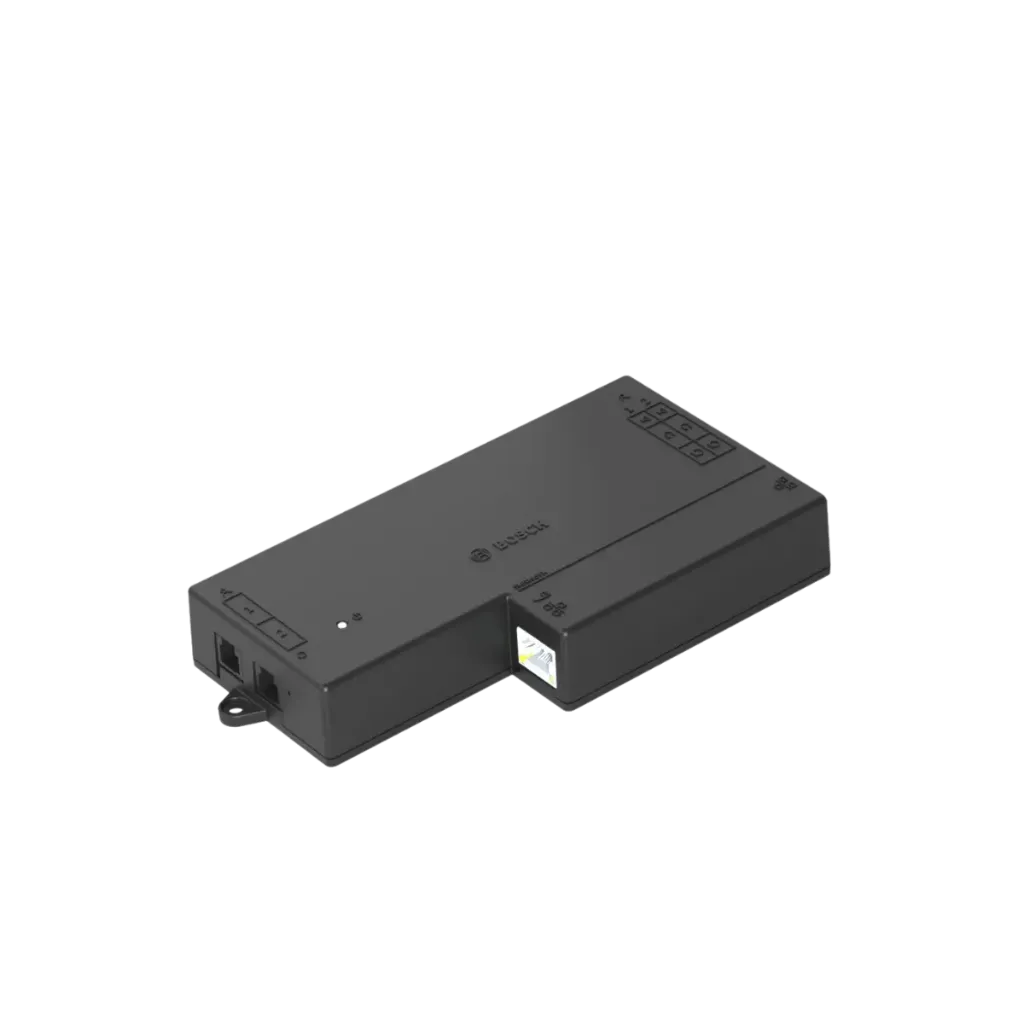

Bosch DCNM-FBD2 Flush Base Device 2 Technical Specifications
Review the key participant capacity, connectivity, power, mounting, mechanical and environmental specifications of the Bosch DCNM-FBD2.
| Category | Specification | Official Value |
|---|---|---|
| General | Product type | Flush base device 2 |
| System | DICENTIS Flush | |
| Standard participant positions | 2 | |
| Maximum participant positions | 4 with dual-use license | |
| Shared resources in 4-position mode | Microphones and loudspeakers | |
| Functions | Flush participant positions | Creates flush-mounted participant positions with DICENTIS Flush panels |
| Loop-through | Supports loop-through to another Flush base device | |
| Status indication | Green / amber LED | |
| Interconnections | Button module connections | 2 × RJ12 connectors |
| Balanced audio inputs | 2 × 3-pole terminal block inputs for DCNM-FMCP | |
| System communication / power | 2 × RJ45-compatible connectors | |
| Loudspeaker outputs | 2 × 2-pole terminal block outputs for DCNM-FLSP | |
| Electrical | Operating voltage | 48 VDC |
| Power consumption — FBD only | 5 W | |
| Power consumption with modules | Refer to Bosch Power Calculation tool | |
| Mechanical | Mounting type | Wall-mounted, under tabletop or seat, in armrest or cable duct |
| Dimensions (H × W × D) | 32 × 100 × 200 mm excluding cables | |
| Dimensions (H × W × D) | 1.26 × 3.90 × 7.90 in excluding cables | |
| Weight | 656 g / 1.45 lb | |
| Colour | RAL 9017 Traffic Black | |
| Environmental | Environmental classification | IEC 60721: storage 1K3, transportation 2K2, operational 3K4 |
| Operating temperature | 5 °C – 45 °C / 41 °F – 113 °F | |
| Operating temperature in enclosed duct | 5 °C – 35 °C / 41 °F – 95 °F | |
| Transportation temperature | -30 °C – 70 °C / -22 °F – 158 °F | |
| Storage temperature | -5 °C – 45 °C / 23 °F – 113 °F | |
| Operating relative humidity | 5% – 90%, non-condensing | |
| Identification | CTN / Model | DCNM-FBD2 |
| Product Number | F.01U.405.788 |
