Bosch DCNM-FHHC Hand Held Microphone FAQs

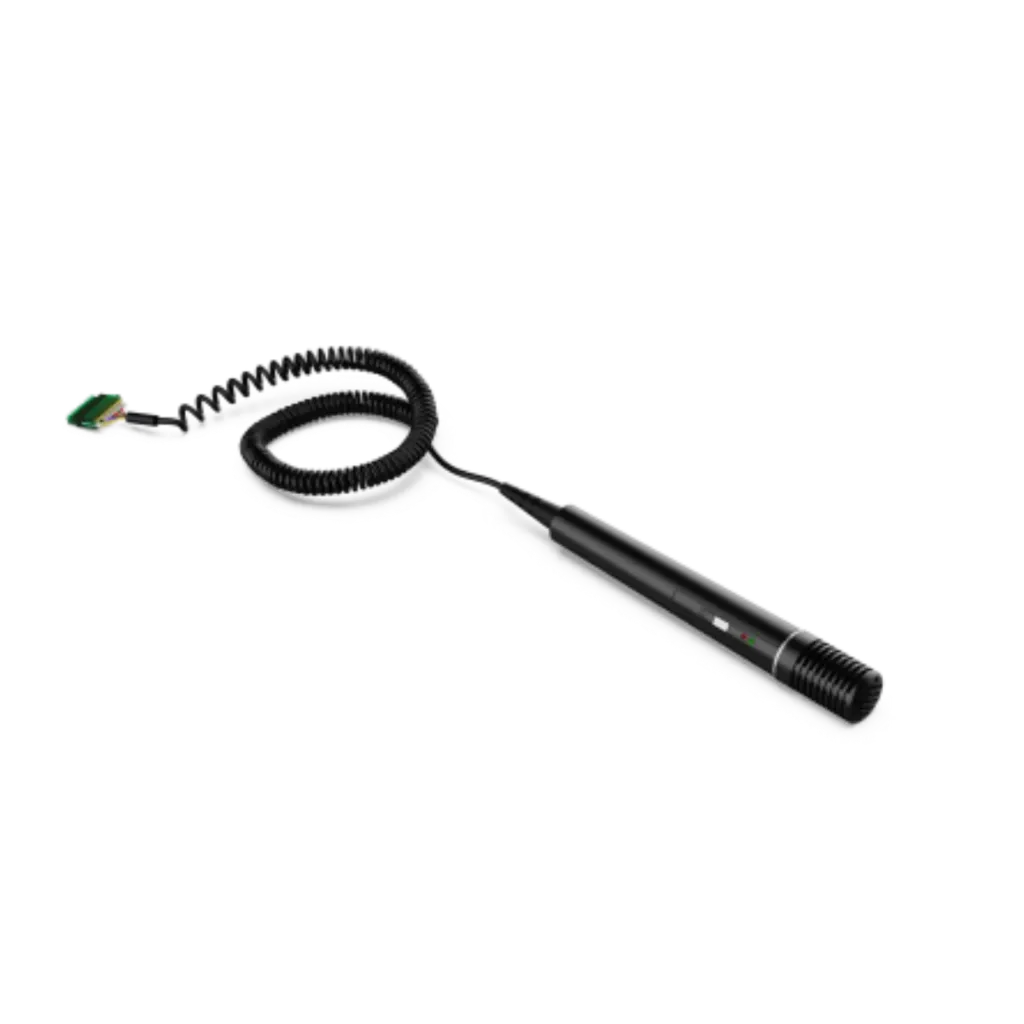

It is a uni-directional condenser microphone for DICENTIS Flush installations where table space is limited, creating a microphone position for seated or floor-stand use.
The DCNM-FHHC has a 1.5 m coiled cable when uncoiled.
It connects to the DCNM-FAI Flush Audio Interface to become part of the DICENTIS conference system.
Yes. Its red LED indicates that the microphone is on, while the green LED confirms a request to speak.
Electronic Security Company(ESCO) is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. ESCO supplies, designs and installs professional conference solutions with genuine warranty support and nationwide after-sales service
DICENTIS Flush Installation Overview
Flexible Microphone Control for DICENTIS Flush
The DCNM-FHHC adds a practical hand-held microphone position to DICENTIS Flush installations where built-in tabletop microphones are not suitable.
Uni-Directional Pickup
Condenser microphone design supports focused speech pickup for conference use.
Coiled Cable Flexibility
The 1.5 m coiled cable provides flexible reach when uncoiled.
Space-Saving Position
Creates a microphone position when tabletop space is limited or unavailable.
Request-to-Speak Control
Built-in button allows participants to submit a request to speak.
Clear LED Status
Red and green LEDs show microphone-on and request confirmation status.
Built-In Wind Protection
Integrated plop and windshield help reduce unwanted breath and wind noise.
Connect the DCNM-FHHC to DICENTIS

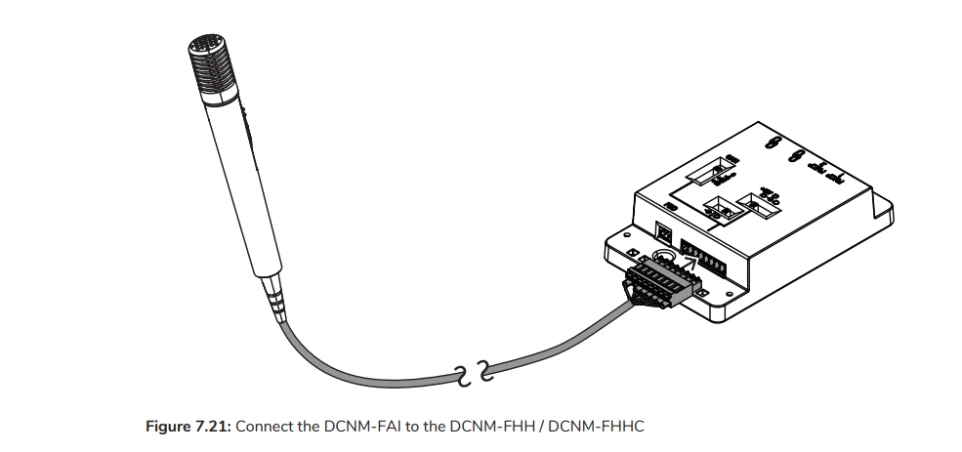

The Bosch DCNM-FHHC is connected through the DCNM-FAI Flush Audio Interface to become part of a DICENTIS Flush conference system. It is suitable for participant positions where a tabletop or flush-mounted microphone device cannot be installed.
- Connect the DCNM-FHHC via the DCNM-FAI.
- Use with a DCNM-FBD2 Flush Base Device through the supported DICENTIS connection arrangement.
- Suitable for participant seating and floor-stand microphone positions where table space is limited.
- Follow the official hardware installation manual for the DCNM-FAI connection and switch settings.
Enhanced User Experience
High-quality loudspeakers and microphones deliver clear audio, even when active together. Shock-mount design reduces noise, while identification secures voting. Language selection is automated for participant convenience.
Easy Integration
Flush modules work seamlessly with DICENTIS tabletop devices and the interpreter desk. Settings are adopted instantly without restart, while the server-based system supports third-party apps, cloud services, and remote maintenance.
Easy, Cost-Effective Installation
The DICENTIS Flush Range offers a modular design for any meeting type. It supports future upgrades, uses existing IP and PoE, and installs quickly with a click-to-fit mechanism. Sharing the Bosch DCN footprint, it allows easy replacement. Dual-seat setups can host up to four delegates, saving space and cost.
Versatile Microphone Options
Compact flush microphones fit where space is limited. The audio interface connects third-party microphones, supports extra inputs, and provides 48 V phantom power.
Structured Meetings
The modular design empowers specifiers and installers to tailor the system to different meeting types. With dual-seat setups supporting up to four delegate positions, meetings can be organized efficiently while saving space and cost.
Convenient Language Selection
Headphone language selection can be automated, ensuring participants quickly access their preferred interpretation channel. Seamless integration with the DICENTIS interpreter desk provides a fully ISO-compliant interpretation solution.
Parliamentary-Style Voting
Identification-based access allows controlled voting functionality, preventing fraud and ensuring accurate results. Voting can be managed directly through the DICENTIS Flush modules for structured decision-making.
Quick Identification
Each participant’s identification enables secure access to system features such as voting and language selection. This ensures smooth authentication and prevents unauthorized use during sessions.
Customize your DICENTIS Flush in wood, stone, metal or RAL color
Match DICENTIS Flush devices to any interior. System integrators, architects and end users can order custom finishes from the RAL Classic and RAL Design color palettes, or choose from a wide range of wood, stone and metal designs.
Lets Talk!
Get in touch for a free consultation, survey, pricing and demonstration session.
Bosch DCNM-FHHC Hand Held Microphone Coiled Technical Specifications
The table below covers the microphone’s configuration, audio performance, environmental limits and physical specifications.
| Specification | Official value |
|---|---|
| Overview | |
| Product type | Hand held microphone coiled |
| Microphone type | Uni-directional condenser microphone |
| System connection | Connects to DCNM-FAI to become part of the DICENTIS system |
| Functions | |
| Control | Request-to-speak button |
| Status indication | Red LED: microphone on; Green LED: request-to-speak confirmation |
| Protection | Built-in plop and windshield |
| Audio | |
| Bandwidth | 125 Hz - 15,000 Hz |
| Dynamic range | 100 dB |
| Nominal acoustic input level | 85 dB SPL |
| Maximum acoustic input level | 115 dB SPL |
| Self noise | 15 dB SPL |
| Environmental | |
| Environmental classification | IEC 60721: storage (1K3), transportation (2K2), operational (3K4) |
| Operating temperature | 5 °C - 45 °C / 41 °F - 113 °F |
| Transportation temperature | -30 °C - 70 °C / -22 °F - 158 °F |
| Storage temperature | -5 °C - 45 °C / -22 °F - 113 °F |
| Operating relative humidity, non-condensing | 5% - 95% |
| Mechanical | |
| Cable type | Coiled |
| Cable length | 1.5 m / 4.9 ft (when uncoiled) |
| Colour in RAL | RAL 9017 Traffic Black |
| Included Item | |
| Supplied quantity | 1 × DCNM-FHHC Hand held microphone coiled |
| Identification | |
| Commercial type number (CTN) | DCNM-FHHC |
| Product number | F.01U.405.508 |
