Bosch DICENTIS DCNM-DE — Frequently Asked Questions
Find answers to common technical, configuration, and purchasing questions regarding the Bosch DICENTIS Discussion Device with Touchscreen.

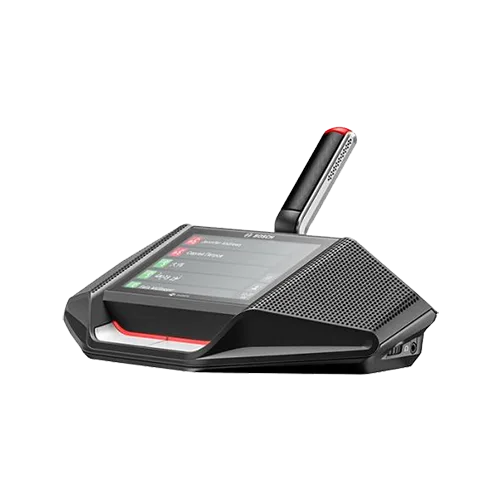

The DCNM-DE is a DICENTIS discussion device with touchscreen designed for participant discussion functions within the DICENTIS Conference System. It supports single-use, dual-use and chairperson configurations.
It features a 4.3-inch capacitive multitouchscreen for functions such as the speaker/request list, speech countdown, language selection and voting when the applicable software licenses are used.
Yes. The device has a built-in NFC reader supporting ISO/IEC 14443 Type A. Identification functionality is available with the applicable Premium or Ultimate software licenses.
No. The DCNM-DE is supplied as the discussion device, while the pluggable microphone is ordered separately. Compatible microphone options listed by Bosch include the DCNM-HDMIC, DCNM-MICS and DCNM-MICL.
Electronic Security Company is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. ESCO supplies, designs and installs professional audio solutions with warranty support and nationwide after-sales service. For DCNM-DE availability, configuration and project requirements, contact us for a quotation.
Discover the Bosch DICENTIS DCNM-DE
Bosch DICENTIS DCNM-DE Capabilities
Explore the key capabilities of the DCNM-DE for professional conference applications.
4.3-Inch Touchscreen
Capacitive multitouchscreen provides an intuitive interface for supported DICENTIS functions.
Built-In NFC Reader
Integrated NFC reader supports participant identification with compatible DICENTIS software licenses.
Flexible User Modes
Configure the device for single-use, dual-use or chairperson operation as required.
Interactive Conference Functions
Access the speaker and request list, speech countdown and other supported conference functions.
Headphone Connectivity
Two 3.5 mm stereo headphone connections support compatible headphones with adjustable volume.
IP-Based Connectivity
Two RJ45 connections provide DICENTIS system communication and power connectivity.

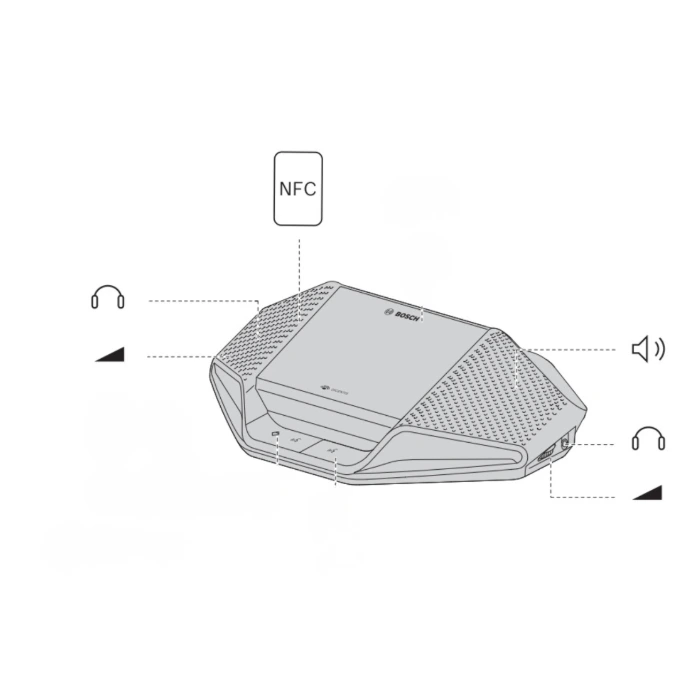

Touchscreen Controls & Personal Listening
The Bosch DCNM-DE combines intuitive touchscreen controls, participant identification, built-in loudspeaker and individual headphone adjustment to help participants follow and actively engage in the meeting.
Touchscreen Meeting Controls
Use the 4.3-inch capacitive touchscreen to view meeting information, including the current speaker, request list and available discussion functions.
NFC Participant Identification
The built-in NFC reader enables fast participant identification and supports convenient access to personalized meeting functions.
Individual Headphone Control
Headphone connections on both sides provide independent volume adjustment, allowing participants to set their preferred listening level.
Built-In Loudspeaker
Listen through the integrated loudspeaker, with built-in feedback suppression supporting simultaneous microphone and loudspeaker operation.
Bosch DCNM-DE Technical Specifications
| Specification | Details |
|---|---|
| Product Overview | |
| Brand / series | Bosch / DICENTIS |
| Model | DCNM-DE |
| Product type | Discussion device with touchscreen |
| Material number | F.01U.313.729 |
| Configuration | Single participant, dual-use or chairperson; configurable through PC configuration software |
| Included product | 1 × DCNM-DE discussion device with touchscreen |
| Microphone | Compatible pluggable microphone, ordered separately |
| Display & Identification | |
| Display | 4.3-inch capacitive multi-touchscreen |
| Display size | 109.22 mm (4.3 in) |
| Built-in reader | Contactless NFC tag reader |
| Supported NFC tags | ISO/IEC 14443 Type A; 106–848 kbps (MIFARE 106 kbps) |
| Electrical & Audio Performance | |
| Supply voltage | 48 VDC |
| Power consumption | 5 W |
| Frequency response | 100 Hz–20 kHz (−3 dB at nominal level) |
| THD at nominal level | < 0.1% |
| Dynamic range | > 90 dB |
| Signal-to-noise ratio | > 90 dB |
| Audio Inputs | |
| Nominal acoustic input level | 80 dB SPL according to ISO 22259 (IEC 60914) |
| Maximum acoustic input level | 110 dB SPL according to ISO 22259 (IEC 60914) |
| Loudspeaker & Headphone Outputs | |
| Loudspeaker nominal output | 72 dB SPL at 0.5 m |
| Loudspeaker maximum output | 87 dB SPL |
| Headphone nominal output | 0 dBV |
| Headphone maximum output | 3 dBV |
| Headphone load impedance | > 32 Ω to < 1 kΩ |
| Headphone output power | 65 mW |
| Connections | |
| Microphone connection | Socket for a compatible pluggable microphone |
| Headphone connections | 2 × 3.5 mm stereo sockets, with independent volume control |
| System connections | 2 × RJ45-compatible connections for system communication and power |
| Physical Specifications | |
| Mounting | Tabletop |
| Dimensions (H × W × D) | 72 × 259 × 139 mm (2.80 × 10.20 × 5.50 in) |
| Colour | Traffic black (RAL 9017) |
| Weight | Approx. 1,035 g (2.30 lb) |
| Environmental Conditions | |
| Operating temperature | +5°C to +45°C (+41°F to +113°F) |
| Storage and transport temperature | −30°C to +70°C (−22°F to +158°F) |
| Relative humidity | > 5% to < 90%, non-condensing |
