FAQs About Bosch DCNM-MMDOCK
Find answers about tablet compatibility, power, DICENTIS meeting controls and licensing for the Bosch DCNM-MMDOCK Multimedia Docking.
The DCNM-MMDOCK is designed to hold one third-party tablet between 10 and 14 inches. The dock angle can be adjusted from 0° to 120° for a suitable viewing position.
No. The product includes the multimedia docking unit only. A compatible third-party tablet, pluggable microphone and USB-C charger are selected separately.
Yes. The dock can fast-charge a connected tablet when local power is provided through its USB-C charging socket. Bosch recommends using a USB-C charger rated 15 W or higher with PD3.0 or newer.
Yes. Essential device controls are available on the base, allowing the meeting to continue even if a participant forgets their tablet or its battery is depleted.
The dock includes haptic touch buttons and a built-in NFC card reader. Identification and voting functionality require the relevant DICENTIS Premium or Ultimate software licences.
Electronic Security Company (ESCO) is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. ESCO supplies, designs and installs professional conference solutions with genuine warranty support and nationwide after-sales service.
DICENTIS Conference System Overview
Built for Flexible Multimedia Meetings

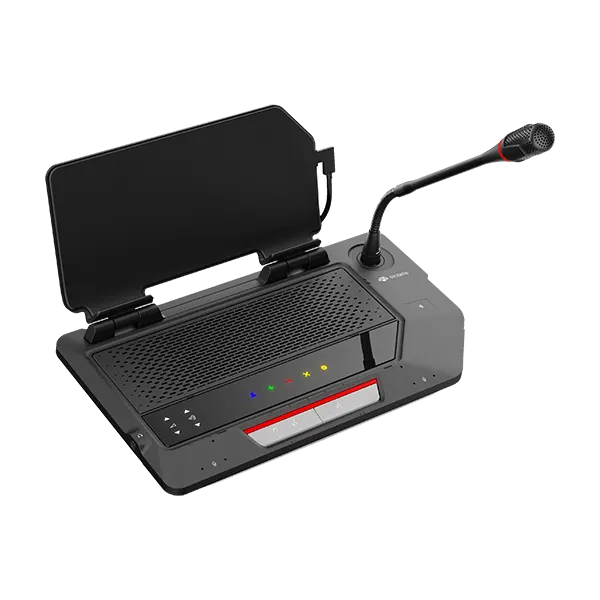

The Bosch DCNM-MMDOCK combines tablet flexibility, built-in conference controls and accessible participant interaction in one DICENTIS docking unit.
Flexible Tablet Docking
Holds a third-party 10 to 14-inch tablet, with a docking angle adjustable from 0° to 120°.
USB-C Pairing & Charging
Pairs a compatible tablet through USB-C and supports fast charging when local USB-C power is connected.
Built-In NFC Reader
An integrated NFC reader with card slot supports participant identification when used with the required DICENTIS licence.
Integrated MEMS Audio
Six built-in MEMS microphones provide unobtrusive speech pickup, with a loudspeaker and acoustical chamber for listening.
Accessible Touch Controls
Haptic touch buttons and braille indications support voting, language selection and accessible device operation.
Independent Base Controls
Core meeting controls remain available on the docking base, even when a participant’s tablet is unavailable.

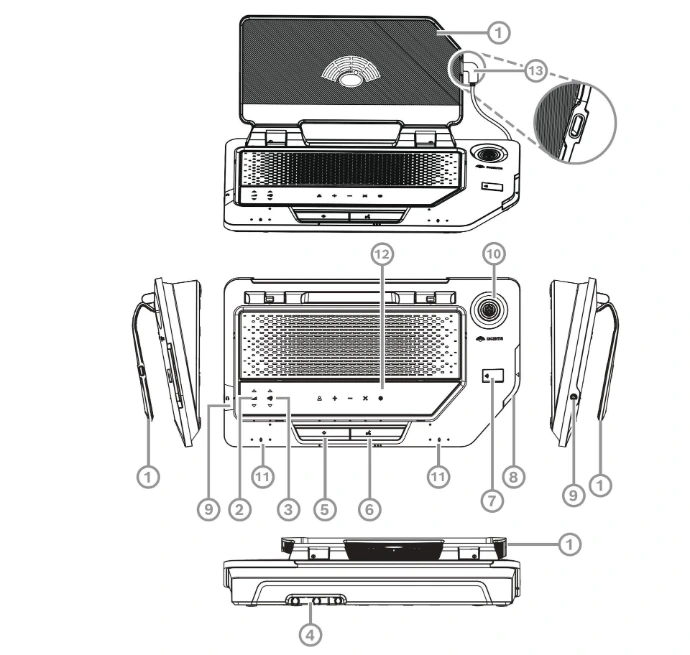

Bosch DCNM-MMDOCK Controls & Connections
Explore the integrated tablet, microphone, NFC, voting and personal-listening controls that support organised multimedia conference participation.
Bosch DCNM-MMDOCK Multimedia Docking Technical Specifications
| Specification | Details |
|---|---|
| Product Overview | |
| Brand / Series | Bosch / DICENTIS |
| Model | DCNM-MMDOCK |
| Product type | Multimedia docking |
| Tablet compatibility | Third-party tablet, 10–14 inch |
| Docking angle | 0° to 120° adjustable |
| Mounting type | Tabletop; Flush-mounted |
| Electrical & Network | |
| Input voltage | 48 VDC |
| PoE input | PoE+ IEEE 802.3at Type 2, Class 4 |
| Power consumption — tablet not connected / locally powered | 11 W |
| Power consumption — tablet connected without local USB-C power | 18 W, including maximum 7 W for powering the tablet |
| Frequency response (−3 dB) | 100 Hz–20,000 Hz |
| Total harmonic distortion + noise | 0.05% |
| Dynamic range | 96 dB |
| Minimum signal-to-noise ratio | 66 dB |
| NFC reader frequency | 13.56 MHz |
| Audio Inputs | |
| Nominal acoustic input level — microphone | 85 dB SPL, according to ISO 22259 (IEC 60914) |
| Maximum acoustic input level — microphone | 115 dB SPL, according to ISO 22259 (IEC 60914) |
| Nominal input level — external microphone | −41 dBV |
| Maximum input level — external microphone | −11 dBV |
| Built-in microphones | 6 MEMS microphones |
| Audio Outputs | |
| Loudspeaker nominal acoustic output | 72 dB SPL at 0.5 m |
| Loudspeaker maximum acoustic output | 87 dB SPL |
| Headphone nominal output | 0 dBV |
| Headphone maximum output | 3 dBV |
| Controls & Indicators | |
| Touch controls | Touch buttons with haptic feedback for voting and language selection |
| Accessibility markings | Braille indications |
| NFC identification | Built-in NFC card reader with card slot |
| Microphone controls | Microphone on/off or request-to-speak; microphone mute or chairperson priority |
| Status indications | Microphone on, request-to-speak and possible-to-speak |
| Connectivity | |
| Tablet connection | 1 × USB-C cable for third-party tablet |
| Local power / charging input | 1 × USB-C socket for USB-C charger |
| Pluggable microphone | Socket for pluggable microphone |
| System connections | 2 × RJ45-compatible connections for system communication and power |
| Headset / external microphone | 3.5 mm stereo jack |
| Connection handling | Hot plug-and-play |
| Physical Specifications | |
| Tabletop dimensions — open dock (H × W × D) | 148 × 310 × 179 mm (5.83 × 12.2 × 7.05 in) |
| Tabletop dimensions — closed dock (H × W × D) | 80 × 310 × 179 mm (3.15 × 12.2 × 7.05 in) |
| Flush-mount dimensions — open dock (H × W × D) | 107 × 310 × 179 mm (4.2 × 12.2 × 7.05 in) |
| Flush-mount dimensions — closed dock (H × W × D) | 40 × 310 × 179 mm (1.57 × 12.2 × 7.05 in) |
| Weight | 2.2 kg (4.85 lb) |
| Colour | Traffic Black (RAL 9017) / Pearl Light Grey (RAL 9022) |
| Environmental Conditions | |
| Operating temperature | 0°C–35°C (32°F–95°F) |
| Storage temperature | −20°C–60°C (−4°F–140°F) |
| Operating relative humidity, non-condensing | 5%–90% |
