FAQs About Bosch DCNM-HDMIC
Find answers about microphone compatibility, speech pickup and connection for the Bosch DCNM-HDMIC DICENTIS High Directive Microphone.
The DCNM-HDMIC is a high-directive microphone for compatible DICENTIS Conference System and DICENTIS Wireless Conference System devices. It captures participant speech for meetings and discussions.
Its two precisely positioned microphone capsules create a high-directive response, helping pick up speech from a greater distance than a conventional microphone, including in noisy meeting environments.
Yes. It uses a plug-and-fasten connector to attach to compatible DICENTIS devices. It is not a standalone conference unit.
The red illuminator indicates that the microphone is active. The green illuminator indicates that a request to speak has been accepted.
Electronic Security Company (ESCO) is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. ESCO supplies, designs and installs professional conference and audio solutions with genuine warranty support and nationwide after-sales service.
Designed for Clear, Flexible Speech
The Bosch DCNM-HDMIC combines focused speech pickup, clear status indication and a simple connection method for DICENTIS conference devices.Focused Speech Pickup
A high-directive response helps capture the speaker’s voice clearly, including when the participant is positioned further from the microphone.
Dual-Capsule Design
Two precisely positioned microphone capsules create the high-directive response for reliable speech pickup in conference environments.
Ultra-Low Noise
Ultra-low noise performance supports clean, intelligible speech reproduction for professional DICENTIS meetings and discussions.
Reduced Phone Interference
The microphone is designed with low susceptibility to interference from nearby mobile phones during use.
Clear Status Indication
A red/green illuminator shows when the microphone is active or when a request to speak has been accepted.
Fast Device Connection
The plug-and-fasten connector attaches the microphone directly to compatible DICENTIS conference devices.

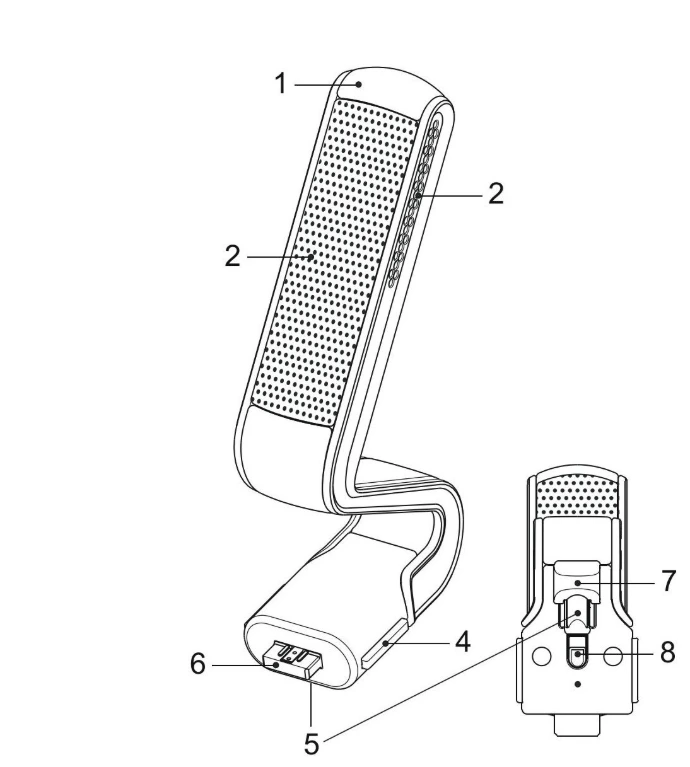

Bosch DCNM-HDMIC Microphone Components
The Bosch DCNM-HDMIC combines a built-in LED indicator, microphone grille and plug-and-fasten connection components for simple use with compatible DICENTIS devices.
Bosch DCNM-HDMIC High Directive Microphone Technical Specifications
| Specification | Details |
|---|---|
| Product Overview | |
| Brand / Series | Bosch / DICENTIS |
| Model | DCNM-HDMIC |
| Product type | High directive microphone |
| Capsule configuration | Two precisely positioned microphone capsules |
| Status indicator | Red/green illuminator |
| Electrical & Audio Performance | |
| Power supply | 5 VDC |
| Power consumption | 0.1 W |
| Bandwidth | 100 Hz–15 kHz |
| Dynamic range | > 96 dB |
| Nominal input | 80 dB SPL |
| Maximum input | 110 dB SPL |
| Equivalent noise | 12 dB SPL |
| Connection & Mounting | |
| Connection | Plug-and-fasten connector |
| Compatible systems | DICENTIS Conference System and DICENTIS Wireless Conference System |
| Mounting | Plug-and-fasten into DICENTIS devices |
| Physical Specifications | |
| Dimensions (H × W × D) | 108 × 21.5 × 60 mm (4.25 × 0.85 × 2.36 in) |
| Weight | 0.035 kg (0.077 lb) |
| Colour | Traffic Black (RAL 9017) / Pearl Light Grey (RAL 9022) |
| Environmental Conditions | |
| Operating temperature | 0°C to +45°C (+32°F to +113°F) |
| Storage and transport temperature | −20°C to +70°C (−4°F to +158°F) |
| Relative humidity | > 5% and < 95% |
