Bosch DICENTIS DCNM-DSL FAQs
Find answers to common questions about the DCNM-DSL discussion device with language selector.

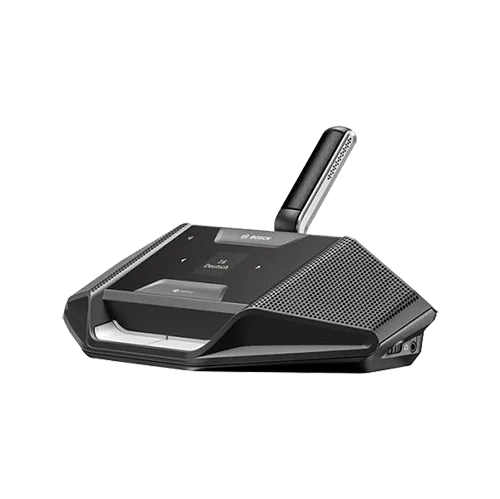

The DCNM-DSL is a tabletop DICENTIS discussion device with a language selector, designed for conference applications where participants need to select and listen to a preferred language.
Yes. The DCNM-DSL has a 1.44-inch LCD with two touch buttons for its supported language-selection functions.
Yes. It includes a built-in NFC identification reader supporting ISO/IEC 14443 Type A contactless NFC tags.
No. The pluggable microphone is ordered separately. The device includes a dedicated socket for the pluggable microphone.
Yes. Electronic Security Company is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. ESCO supplies, designs and installs professional conference and audio solutions with genuine warranty support and nationwide after-sales service.
Discover the Bosch Security - DICENTIS Conference System
Bosch DICENTIS DCNM-DSL Capabilities
Explore the key capabilities of the DCNM-DSL for professional conference applications.
Flexible User Modes
Configure the device for single participant, dual-use, or chairperson operation.
Clear Speech Intelligibility
High signal-to-noise performance supports clear speech, with loudspeaker and microphone operation at the same time.
Secure Communication
System encryption helps keep conference information confidential during communication.
NFC Identification
Built-in NFC reader supports fast participant identification with compatible contactless tags.
Language Selection
The integrated 1.44-inch LCD supports participant language selection for listening to the preferred language.
Flexible Interconnections
Supports a pluggable microphone, dual stereo headphone sockets, two RJ45 connections, and hot plug-and-play.

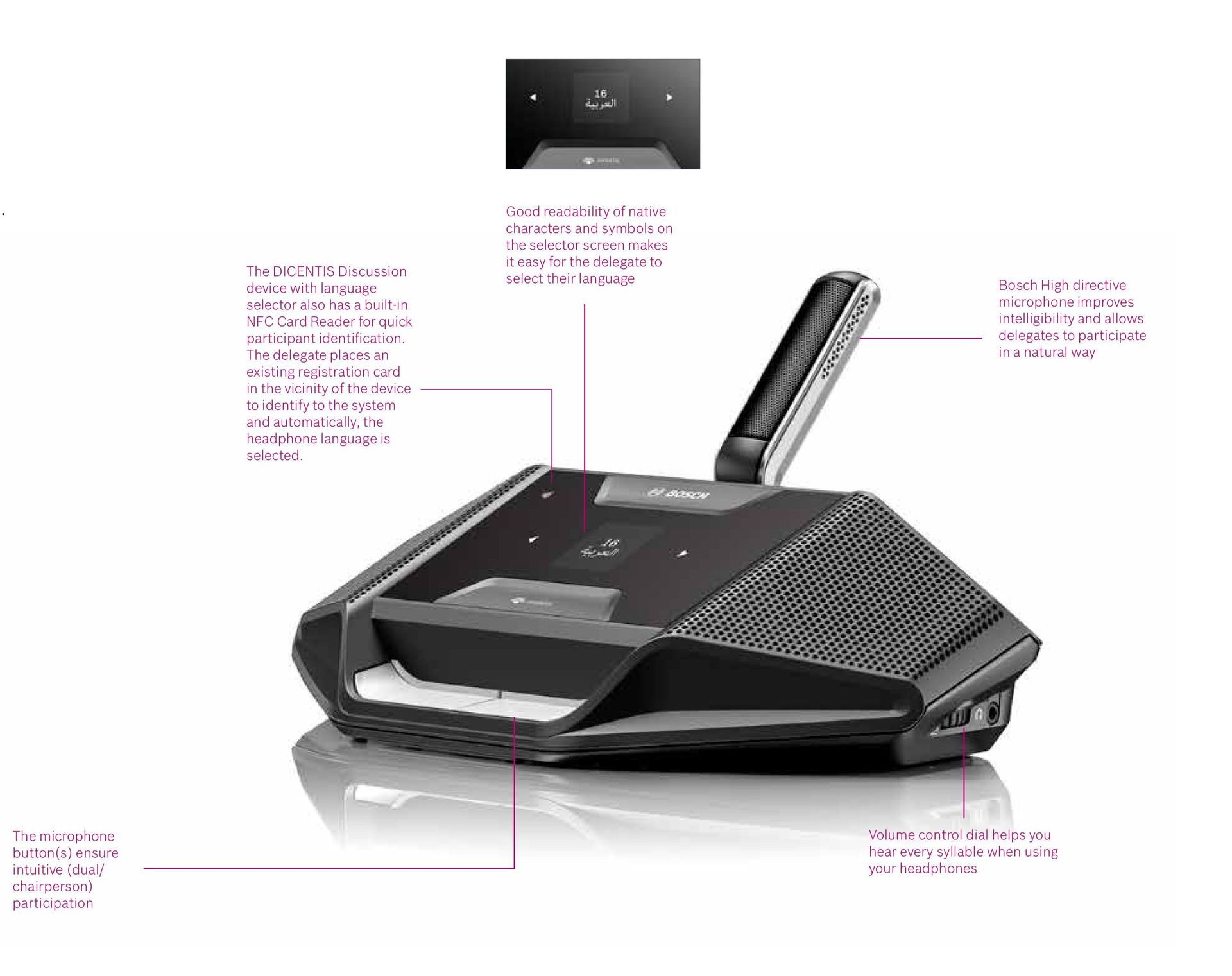

Bosch DICENTIS DCNM-DSL Language Selection & Delegate Identification
Delegates can select an available language on the DCNM-DSL display and listen through headphones. The built-in NFC reader supports participant identification, while individual volume controls let delegates adjust their listening level.
Clear Language Selection
The 1.44-inch display shows the selected language in its native characters, making it easier for delegates to find the language they need.
NFC Participant Identification
The built-in NFC reader supports identification with a compatible registration card.
Microphone Participation Controls
The device provides microphone controls and status indicators for requesting and taking the floor.
Personal Headphone Listening
Two headphone connections and separate volume controls let participants adjust their own listening level.
DCNM-DSL Technical Specifications
| Specification | Value |
|---|---|
| Electrical | |
| Supply voltage | 48 VDC |
| Power consumption | 3.6 W |
| Frequency response | 100 Hz–20 kHz (−3 dB at nominal level) |
| THD at nominal level | <0.1% |
| Dynamic range | >90 dB |
| Signal-to-noise ratio | >90 dB |
| Audio inputs | |
| Nominal microphone input | 80 dB SPL, according to ISO 22259 (IEC 60914) |
| Maximum microphone input | 110 dB SPL, according to ISO 22259 (IEC 60914) |
| Audio outputs | |
| Loudspeaker nominal output | 72 dB SPL at 0.5 m |
| Loudspeaker maximum output | 87 dB SPL |
| Headphone nominal output | 0 dBV |
| Headphone maximum output | 3 dBV |
| Headphone load impedance | >32 Ω and <1 kΩ |
| Headphone output power | 65 mW |
| General | |
| Screen size | 36.58 mm (1.44 in) |
| Screen type | LCD |
| Supported contactless NFC tag | ISO/IEC 14443 Type A; 106–848 kbps (MIFARE: 106 kbps) |
| Mechanical | |
| Mounting | Tabletop |
| Dimensions (H × W × D), without microphone | 72 × 259 × 139 mm (2.8 × 10.2 × 5.5 in) |
| Colour, top and base | Traffic black (RAL 9017) |
| Weight | Approx. 955 g (2.1 lb) |
| Environmental | |
| Operating temperature | +5°C to +45°C (+41°F to +113°F) |
| Storage and transport temperature | −30°C to +70°C (−22°F to +158°F) |
| Relative humidity | >5% and <90% |
