FAQs About Bosch DCNM-MMFF
Find answers about the Bosch DCNM-MMFF DICENTIS multimedia full function device, its touchscreen, meeting features and conference-system compatibility.
The DCNM-MMFF is a DICENTIS multimedia conference device for meetings that require on-screen agenda information, shared documents, live video, internet access and advanced participant interaction.
The Android-based 10-inch capacitive touchscreen supports meeting data, document retrieval, live video and compatible third-party or custom applications.
Yes. It includes an NFC reader and haptic touch controls; however, identification, voting and language-selection functions require the relevant DICENTIS Premium or Ultimate licence.
Yes. The device supports both tabletop and flush-mounted installation. It also includes built-in MEMS microphones and a socket for a compatible pluggable DICENTIS microphone.
Electronic Security Company is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. ESCO supplies, designs and installs genuine professional conference solutions with warranty support and nationwide after-sales service.
DICENTIS Conference System Overview
Full-Function Multimedia Participation

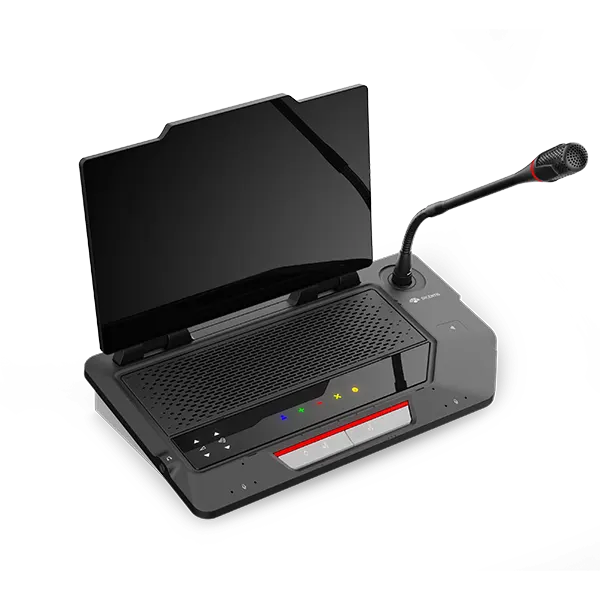

The Bosch DCNM-MMFF brings meeting content, live video, secure identification, clear audio and essential participant controls together in one DICENTIS multimedia device.
10-Inch Multimedia Screen
Capacitive touchscreen for meeting data, documents, live video and internet access.
Android App Flexibility
Supports compatible third-party and custom apps for expanded meeting functionality.NFC Participant Identification
Built-in NFC reader and card slot support licensed participant identification workflows.
Integrated MEMS Microphones
Six built-in MEMS microphones provide unobtrusive audio capture and speaking freedom.
Accessible Haptic Controls
Haptic touch buttons and braille indications support intuitive meeting interaction.
Flexible Table Integration
Install the device on a tabletop or flush-mounted into a conference table.

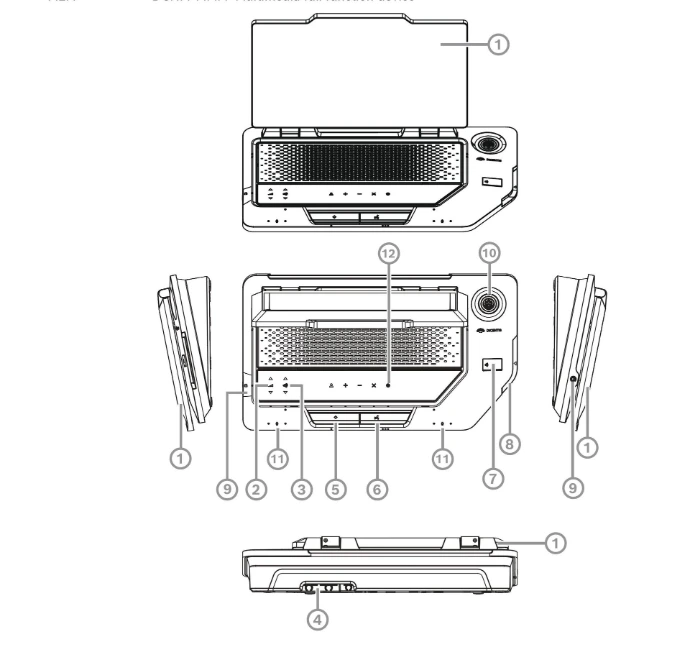

Bosch DCNM-MMFF Controls & Connections
Explore the integrated display, audio, identification and meeting controls that support full-function DICENTIS multimedia participation.
Bosch DCNM-MMFF DICENTIS Multimedia Full Function Technical Specifications
| Specification | Details |
|---|---|
| Product Overview | |
| Brand / Series | Bosch / DICENTIS |
| Model | DCNM-MMFF |
| Official product type | Multimedia full function |
| Material number | F.01U.425.436 |
| Display & Multimedia | |
| Display size | 10 in |
| Display resolution | 1200 × 1920 px |
| Touchscreen | Capacitive multitouch |
| Camera | 13 MP |
| Operating system | Android-based device |
| Screen adjustment | 0° to 180° |
| Supported content | Meeting data, documents, live video, internet access, third-party and custom apps |
| Electrical Performance | |
| Input voltage | 48 VDC |
| PoE input | PoE+ IEEE 802.3at Type 2, Class 4 |
| Power consumption — without tablet / locally powered via USB-C adapter | 12 W |
| Power consumption — with tablet / not powered locally | 18 W |
| Frequency response (−3 dB) | 100 Hz – 20,000 Hz |
| Total harmonic distortion + noise | 0.05% |
| Dynamic range | 96 dB |
| Minimum signal-to-noise ratio | 66 dB |
| NFC & Touch Functions | |
| NFC reader frequency | 13.56 MHz |
| Supported contactless NFC tag | ISO/IEC 14443 Type A (106–848 kbps); MIFARE (106 kbps) |
| Touch controls | Haptic-feedback controls for voting and language selection |
| Accessibility | Braille indications |
| Licence-dependent functions | Identification, voting and language selection require DICENTIS Premium or Ultimate licences |
| Audio Inputs | |
| Built-in microphones | 6 MEMS microphones |
| Nominal acoustic input level | 85 dB SPL, according to ISO 22259 (IEC 60914) |
| Maximum acoustic input level | 115 dB SPL, according to ISO 22259 (IEC 60914) |
| External microphone nominal input | −41 dBV |
| External microphone maximum input | −11 dBV |
| Audio Outputs | |
| Loudspeaker nominal output | 72 dB SPL at 0.5 m |
| Loudspeaker maximum output | 87 dB SPL |
| Headphone nominal output | 0 dBV |
| Headphone maximum output | 3 dBV |
| Controls & Connections | |
| Base controls | Microphone on/off or request-to-speak; microphone mute or chairperson priority; power button |
| Status indications | Microphone on, request-to-speak and possible-to-speak |
| Pluggable microphone | Socket for compatible DICENTIS microphone |
| System connections | 2 × RJ45-compatible connections for system communication and power |
| Headphone / external microphone | 3.5 mm stereo jack |
| Connection method | Hot plug-and-play |
| Mechanical | |
| Mounting type | Tabletop or flush-mounted |
| Tabletop dimensions, open screen (H × W × D) | 222 × 310 × 179 mm (8.74 × 12.2 × 7.05 in) |
| Tabletop dimensions, closed screen (H × W × D) | 60 × 310 × 179 mm (2.36 × 12.2 × 7.05 in) |
| Flush-mounted dimensions, open screen (H × W × D) | 181 × 310 × 179 mm (7.13 × 12.2 × 7.05 in) |
| Flush-mounted dimensions, closed screen (H × W × D) | 19 × 310 × 179 mm (0.75 × 12.2 × 7.05 in) |
| Weight | 2.5 kg (5.5 lb) |
| Colour | Traffic black (RAL 9017) / Pearl light grey (RAL 9022) |
| Environmental Conditions | |
| Operating temperature | 0 °C – 35 °C (32 °F – 95 °F) |
| Storage temperature | −20 °C – 60 °C (−4 °F – 140 °F) |
| Operating relative humidity, non-condensing | 5% – 90% |
