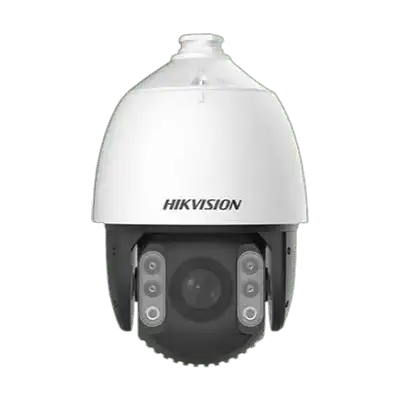

Camera Module
|
|
Sensor
|
1/2.8"
progressive scan CMOS
|
|
Min.
Illumination
|
Color:
0.005 Lux @ (F1.6, AGC ON) B/W: 0.0005Lux @(F1.6, AGC ON)
0 Lux
with IR
|
|
White
Balance
|
Auto
/ Manual / ATW (Auto-tracking White Balance) / Indoor/Outdoor / Fluorescent
Lamp / Sodium Lamp
|
|
Gain
|
Auto/Manual
|
|
Shutter
Time
|
50Hz:
1/1 s to 1/30,000 s
60Hz:
1/1 s to 1/30,000 s
|
|
Day
& Night
|
IR Cut
Filter
|
|
Digital
Zoom
|
16×
|
|
Privacy
Mask
|
24 programmable
polygon privacy masks, mask color or mosaic configurable
|
|
Focus
Mode
|
Auto
/ Semi-automatic / Manual
|
|
WDR
|
120
dB WDR
|
|
Lens
|
|
Focal
Length
|
4 mm
to 180 mm, 45× optical zoom
|
|
Zoom
Speed
|
Approx.
3.7s (Optical Lens, Wide-Tele)
|
|
Field
of View
|
Horizontal
field of view: 70.3° to 1.8° (Wide-Tele)
Vertical
field of view: 42.2° to 1.0° (Wide-Tele)
Diagonal
field of view: 78.3° to 2.1° (Wide-Tele)
|
|
Working
Distance
|
10 mm
to 1500 mm (wide-tele)
|
|
Aperture
Range
|
F1.6
to F4.95
|
|
illuminator
|
|
IR Distance
|
200
m
|
|
Smart
IR
|
Yes
|
|
PTZ
|
|
Movement
Range (Pan)
|
360°
endless
|
|
Pan
Speed
|
Configurable,
from 0.1°/s to 160°/s, Preset speed: 240°/s
|
|
Movement
Range (Tilt)
|
From
-15° to 90° (Auto-Flip)
|
|
Tilt
Speed
|
Configurable,
from 0.1°/s to 120°/s
Preset
Speed: 200°/s
|
|
Proportional
Zoom
|
Yes
|
|
Presets
|
300
|
|
Patrol
Scan
|
8 patrols,
up to 32 presets for each patrol
|
|
Pattern
Scan
|
4 pattern
scans, record time over 10 minutes for each scan
|
|
Power-off
Memory
|
Yes
|
|
Park
Action
|
Preset
/ Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan
/ Panorama Scan
|
|
3D Positioning
|
Yes
|
|
PTZ
Position Display
|
Yes
|
|
Preset
Freezing
|
Yes
|
|
Scheduled
Task
|
Preset
/ Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan
/ Panorama Scan / Dome Reboot / Dome Adjust / Aux Output
|
|
Compression Standard
|
|
Video
Compression
|
Main
Stream: H.265+ / H.265 / H.264+ / H.264
Sub-stream:
H.265 / H.264 / MJPEG
Third
Stream: H.265 / H.264 / MJPEG
|
|
H.264
Type
|
Baseline
Profile / Main Profile / High Profile
|
|
H.264+
|
Yes
|
|
H.265+
|
Yes
|
|
SVC
|
Yes
|
|
Smart Features
|
|
Basic
Event
|
Motion
Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception
|
|
Smart
Event
|
Face
Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection,
Region Exiting Detection, Audio Exception Detection, Unattended Baggage
Detection, Object Removal Detection
|
|
Smart
Tracking
|
Manual
Tracking, Auto Tracking, Event Tracking
|
|
Smart
Record
|
ANR
(Automatic Network Replenishment), Dual-VCA
|
|
ROI
|
Main
stream, sub-stream, and third stream respectively support eight fixed areas.
|
|
|
|
Max.
Resolution
|
1920
× 1080
|
|
Main
Stream
|
50Hz:
25fps (1920 × 1080, 1280 × 960, 1280 × 720)
50fps
(1920 × 1080, 1280 × 960, 1280 × 720)
60Hz:
30fps (1920 × 1080, 1280 × 960, 1280 × 720)
60fps
(1920 × 1080, 1280 × 960, 1280 × 720)
|
|
Sub-Stream
|
50Hz:
25fps (704 × 576, 640 × 480, 352 × 288)
60Hz:
30fps (704 × 480, 640 × 480, 352 × 240)
|
|
Third
Stream
|
50Hz:
25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz:
30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
|
|
Enhancement
|
HLC
/ BLC / 3D DNR / Defog / EIS / Regional Exposure / Regional Focus
|
|
Network
|
|
Network
Storage
|
Built-in
memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/CIFS),
ANR
|
|
Alarm
Linkage
|
Alarm
actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record,
Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS,
Send Email, etc.
|
|
Protocols
|
IPv4/IPv6,
HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP,
RTP, TCP/IP, DHCP, PPPoE, Bonjour
|
|
Security
Measures
|
User
authentication (ID and PW), Host authentication (MAC address); HTTPS encryption;
IEEE
802.1x port-based network access control; IP address filtering
|
|
Interface
|
|
Alarm
Interface
|
2-ch
alarm input and 1-ch alarm output
|
|
Audio
Interface
|
1-ch
audio input and 1-ch audio output
|
|
Network
Interface
|
1 RJ45
10 M/100 M Ethernet, Hi-PoE
|
|
General
|
|
Power
|
24 VAC,
3.0 A, 50/60 Hz & Hi-PoE, 42.5 to 57 VDC, 1.41 A
Max.
40 W, includes max. 16 W for IR and max. 10 W for heater)
|
|
Working
Temperature
|
-30°C
to 65°C (-22°F to 149°F)
|
|
Working
Humidity
|
≤ 90%
|
|
Protection
Level
|
IP66
Standard, IK10 (excluding glass window), 6000V Lightning Protection, Surge Protection
and Voltage Transient Protection
|
|
Material
|
Aluminum
alloy
|
|
Dimensions
|
Φ
220 mm × 353.4 mm (Φ 8.66" × 13.91")
|
|
Weight
|
Approx.
4.5 kg (9.92 lb)
|
