H9c Dual
3K & 3KDual-Lens Pan & Tilt Wi-Fi Camera
H9c Dual
3K & 3KDual-Lens Pan & Tilt Wi-Fi Camera
Dual Lens Pan & Tilt Wi-Fi Camera

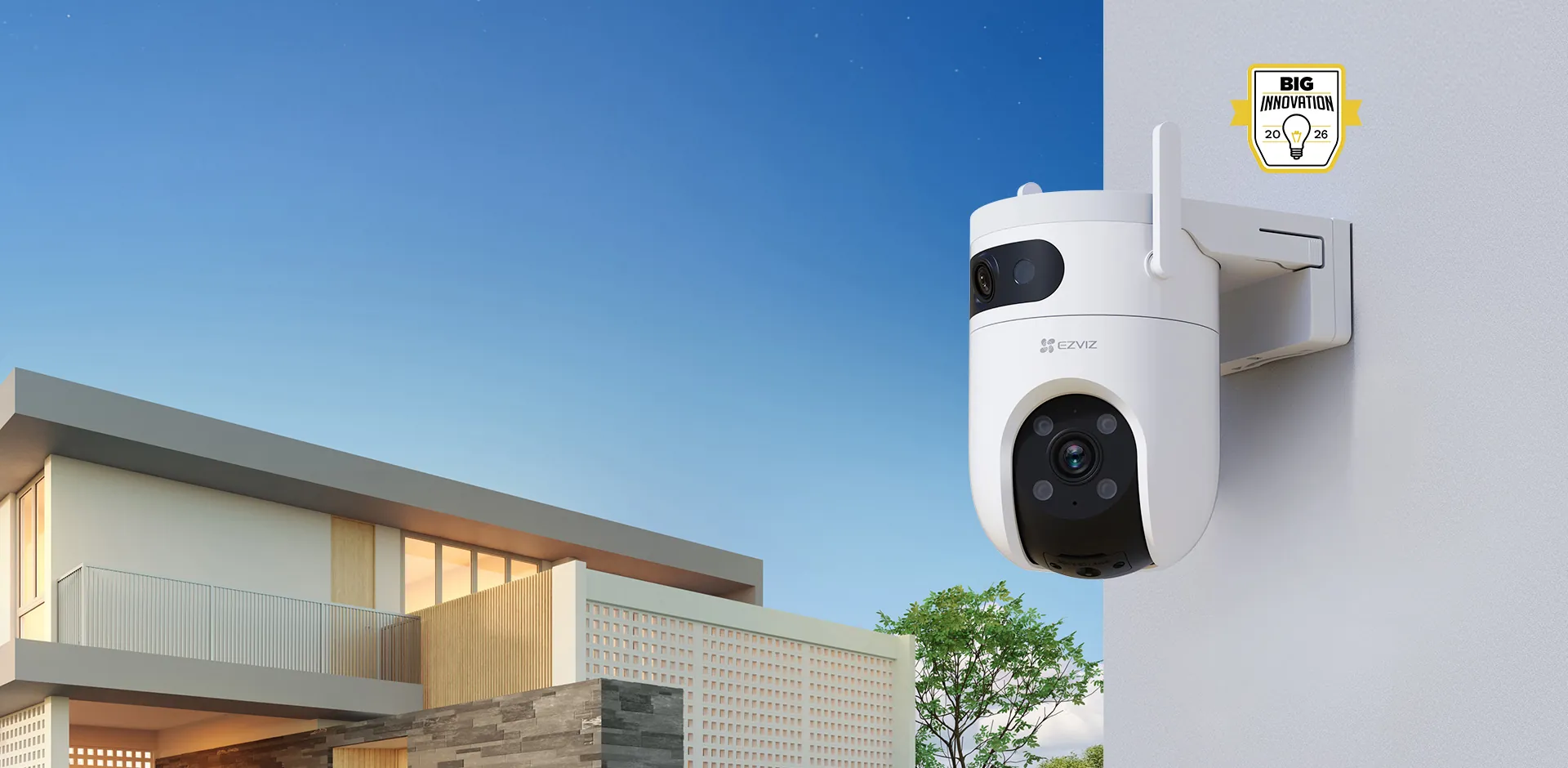

Ezviz H9c Dual 3K & 3K Dual-Lens Pan & Tilt Wi-Fi Camera.The dual-lens system can show a wide-angle view and a detailed close-up at the same time for better monitoring.
H.265 Video Compression
Color Night Vision
Color Night vision like you've never seen before. (30m / 98ft).Enjoy clear, colorful video even in low-light conditions, with night vision coverage up to 30 m / 98 ft.
Active Defense
Audio
Next-level Detection
Co-Detection for Auto Smart Tracking, Two Patrol Modes for Auto-Security, AI-Powered Human / Vehicle Shape Detection
Protection
The H9c Dual 3K & 3K has a compact design, and is weatherproof to deliver long-standing performance, even in harsh weather conditions.
One-Tap View Control
Switch between linked camera views instantly with just one tap.
Storage
Supports MicroSD Card Storage (up to 512 GB) & EZVIZ CloudPlay Storage
FAQs About the Ezviz H9c Dual 3K
Dual-Lens Pan & Tilt Wi-Fi Camera
The EZVIZ H9c Dual 3K is a smart outdoor Wi-Fi security camera with two 3K lenses, pan & tilt control, AI detection, smart tracking, and 360° coverage.
The H9c Dual 2K features dual 2K lenses, while the H9c Dual 3K delivers sharper dual 3K video over Wi-Fi. The H9c Dual 3K 4G combines dual 3K resolution with both Wi-Fi and 4G connectivity, making it suitable for locations where reliable Wi-Fi may not be available.
Marketed As | Megapixels (Approx.) | Resolution |
|---|---|---|
H9c Dual 3K | 5 MP | 2880 × 1620 |
H9c Dual 4G | 5 MP | 2880 × 1620 |
H9c Dual 2K | 3 MP | 2304 × 1296 |
Electronic Security Company(ESCO) supplies genuine EZVIZ H9c Dual 3K cameras in Pakistan, along with expert guidance, installation support, genuine warranty, and after-sales service nationwide.
Powerful antennas, stable connection
Smart integration for hands-free control
H.265 for enhanced video experience
Dual storage options for important moments
The camera automatically saves detection-triggered history videos. You can choose to secure them on a large local storage card, or simply by subscribing to the EZVIZ CloudPlay.Choose convenient local storage with a microSD card or secure cloud storage with EZVIZ CloudPlay.
| Camera | |
|---|---|
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | Top lens: 2.8 mm @ F1.6, viewing angle: diagonal 110°, horizontal 96°, vertical 54°; Bottom lens: 6 mm @ F1.6, viewing angle: diagonal 60°, horizontal 52°, vertical 28° |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
| Video & Audio | |
| Max Resolution | 3K (2880 × 1620) |
| Frame Rate | Self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11a, 802.11b, 802.11g,802. 11n,802.11ac, |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz, 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz |
| Channel Bandwidth | Supports 20 MHz @ 2.4G, Supports 20 / 40 / 80 MHz @ 5G |
| Security | WPA-PSK/WPA2-PSK |
| Transmission Rate | 1b: 11 Mbps, 11a/g: 54 Mbps, 11n: 150 Mbps, 11ac: 433 Mbps, 11ax: 600 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Functions | |
| Smart Alarm | AI-powered human shape detection; AI-powered vehicle shape detection; Motion detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (Max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay Storage (Subscription required) |
| General | |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V/1.5A |
| Power Consumption | Max. 18 W |
| Dimensions | 147 × 116 × 142 mm (5.71 × 4.57 × 5.59 inch) |
| Packaging Dimensions | 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch) |
| Weight | Net weight: 633 g (22.33 oz) With package: 974 g (34.36 oz) |
| Certifications | |
| Certifications | CE / UL / WEEE / RoHS / REACH |
