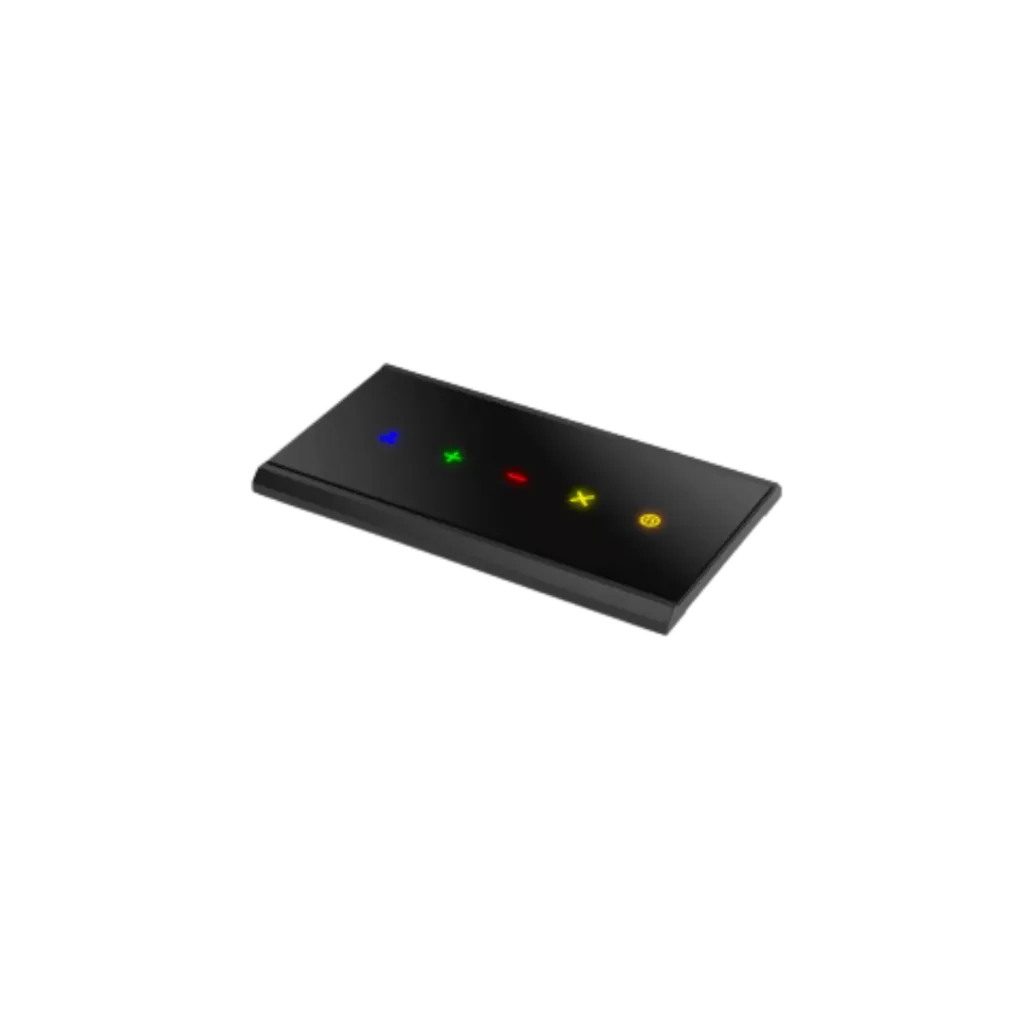

Bosch DICENTIS DCNM-FVP Flush Voting Panel
The DICENTIS DCNM-FVP is a flush-mount voting panel with five capacitive touch buttons: Present, For, Against, Abstain, and Do Not Participate in the Vote (DNPV). Designed for permanent installation into conference tables and desks, it brings fast, clear electronic voting to parliaments, city councils, assemblies, and boardrooms.
Each button is color-coded and lights up only when that function is available, so participants are never distracted by inactive options. The panel connects to the DCNM-FBD2 flush base device with a single RJ12 cable for power and control, and includes a contact input for a fraud button. Requiring a second button to be held while voting ensures every participant can only cast their own vote.
Premium Flush Voting Panel
A slim, flush-mount DICENTIS voting panel designed for permanent installation in conference tables, delegate desks, and parliamentary benches.
Five Color-Coded Touch Buttons
Capacitive buttons for Present (blue), For/A (green), Against/B (red), Abstain/C (yellow), and DNPV/D (orange).
Smart Button Illumination
Buttons light up only when their function is available, guiding participants and avoiding distraction during meetings.
Flexible Voting Answer Sets
Supports Yes/No, For/Against, Abstain, DNPV, and A/B/C/D multiple-choice voting, all configured from the DICENTIS Meeting application.
Fraud-Proof Voting
A contact input for a press-and-hold fraud button ensures every participant can only cast their own vote.
Anonymous Voting Options
Answer buttons can be hidden after a vote is cast, protecting voter privacy and preventing influence on other participants.
Simple Plug-and-Play Installation
- Single-cable connection: One RJ12 cable to the DCNM-FBD2 supplies both power and control, with no separate power supply needed.
- Click-in mounting: Plug in the cable, click the panel into the desk, and it's ready to use.
- Expandable: A second RJ12 port connects additional flush units at the same seat.
Enhanced User Experience
High-quality loudspeakers and microphones deliver clear audio, even when active together. Shock-mount design reduces noise, while identification secures voting. Language selection is automated for participant convenience.
Easy Integration
Flush modules work seamlessly with DICENTIS tabletop devices and the interpreter desk. Settings are adopted instantly without restart, while the server-based system supports third-party apps, cloud services, and remote maintenance.
Easy, Cost-Effective Installation
The DICENTIS Flush Range offers a modular design for any meeting type. It supports future upgrades, uses existing IP and PoE, and installs quickly with a click-to-fit mechanism. Sharing the Bosch DCN footprint, it allows easy replacement. Dual-seat setups can host up to four delegates, saving space and cost.
Versatile Microphone Options
Compact flush microphones fit where space is limited. The audio interface connects third-party microphones, supports extra inputs, and provides 48 V phantom power.
Structured Meetings
The modular design empowers specifiers and installers to tailor the system to different meeting types. With dual-seat setups supporting up to four delegate positions, meetings can be organized efficiently while saving space and cost.
Convenient Language Selection
Headphone language selection can be automated, ensuring participants quickly access their preferred interpretation channel. Seamless integration with the DICENTIS interpreter desk provides a fully ISO-compliant interpretation solution.
Parliamentary-Style Voting
Identification-based access allows controlled voting functionality, preventing fraud and ensuring accurate results. Voting can be managed directly through the DICENTIS Flush modules for structured decision-making.
Quick Identification
Each participant’s identification enables secure access to system features such as voting and language selection. This ensures smooth authentication and prevents unauthorized use during sessions.
Customize your DICENTIS Flush in wood, stone, metal or RAL color
Match DICENTIS Flush devices to any interior. System integrators, architects and end users can order custom finishes from the RAL Classic and RAL Design color palettes, or choose from a wide range of wood, stone and metal designs.
Lets Talk!
Get in touch for a free consultation, survey, pricing and demonstration session.
Key specs
- 5 colour-coded touch buttons
- Present, For, Against, Abstain, DNPV
- Lit only when voting is open
- RJ12 to DCNM-FBD2, powered by it
- Contact input for a fraud button
- 56 x 100 x 34 mm, 62 g
- Click-to-fit, RAL 9017 Traffic black
- Premium license per participant
General
| Specification | Value |
|---|---|
| Model | DCNM-FVP |
| Product type | Flush-mount voting panel |
| System | Bosch DICENTIS |
| Buttons | 5 capacitive touch buttons |
| Button functions | Blue: Present · Green: Yes / A · Red: No / B · Yellow: Abstain / C · Orange: Do Not Participate in Vote (DNPV) / D |
| Button illumination | Lit only when the voting function is available |
Electrical
| Specification | Value |
|---|---|
| Power consumption | 0.50 W |
| Operating voltage | 5 VDC |
| Power & control source | DCNM-FBD2 flush base device |
Interconnections
| Specification | Value |
|---|---|
| Control interface | RJ12, to DCNM-FBD2 and other units |
| Contact input | Fraud button input |
Mechanical
| Specification | Value |
|---|---|
| Mounting | Click-fit into 2 mm metal panel, or with DCN-FCOUP flush coupler and DCNM-FEC flush end cap in any surface |
| Dimensions (H × W × D) | 56 × 100 × 34 mm (2.20 × 3.94 × 1.34 in) |
| Weight | 62 g (0.14 lb) |
| Colour | RAL 9017 Traffic Black |
Environmental
| Specification | Value |
|---|---|
| Standard | IEC 60721: storage (1K3), transport (2K2), operation (3K4) |
| Operating temperature | 5 °C to 45 °C (41 °F to 113 °F) |
| Storage temperature | -5 °C to 45 °C (23 °F to 113 °F) |
| Transport temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Operating humidity | 5% to 90% RH, non-condensing |
Package Contents
| Qty | Item |
|---|---|
| 1 | DCNM-FVP flush voting panel |
| 1 | 30 cm connection cable |
Ordering Information
| Specification | Value |
|---|---|
| Order number | DCNM-FVP | F.01U.402.924 |
| Optional software | DCNM-LSVT single-seat voting license (F.01U.300.532) |
Know before you buy
Quick answers about the DCNM-FVP, and how it compares.
Which voting options does the DCNM-FVP have?
Five capacitive touch buttons: blue Present, green For / A, red Against / B, yellow Abstain / C and orange DNPV / D. They light up only when voting is open.
How does the DCNM-FVP connect?
One RJ12 cable (30 cm, included) to the DCNM-FBD2, which powers and controls it. It also has a contact input for a fraud button.
Can each participant's vote be checked?
Yes. With identification (DCNM-FIDP card reader), voting rights are set per participant, so only the right person can vote from a seat. This prevents fraud.
Do DICENTIS Flush panels need a software license?
On the wired DICENTIS system, a Flush seat does basic discussion without a license once the system is registered: microphone, request to speak, loudspeaker, and dual use on the DCNM-FBD2.
These panels need a Premium or Ultimate license for each participant:
Order Premium DCNM-LPP-PE or Ultimate DCNM-LPU-PE, one license per participant; a dual use seat counts as two.
What else do I need for a flush-mounted seat?
A DICENTIS Flush seat is built around the DCNM-FBD2 flush base device, fitted under the table or seat, in an armrest, on a wall or in a cable duct. Pick the panels the seat needs and cable them to the FBD2:
- Microphone: DCNM-FMCP connection panel with a DCNM-MICSLS (310 mm) or DCNM-MICSLL (480 mm) screw-lock microphone, plus a DCNM-FMICB microphone button or DCNM-FPRIOB priority button. The button panel also powers the FMCP.
- Loudspeaker: DCNM-FLSP.
- Language selection: DCNM-FSLP and headphones.
- Voting: DCNM-FVP.
- Identification: DCNM-FIDP with the DCNM-FICH card holder (ask us).
- No space on the table: DCNM-FHHC handheld microphone through a DCNM-FAI flush audio interface (ask us).
In dual use, one FBD2 serves up to four participants, two sharing each microphone and loudspeaker. For mounting, add DCN-FCOUP couplings, DCNM-FEC end caps and DCNM-FPT positioning tools. The FBD2 joins the system with DICENTIS system cables, powered from the DCNM-APS2 or DCNM-PS2.
How are DICENTIS Flush panels mounted?
Every panel clicks into a 2 mm metal panel. In wood or any other surface, fit them with DCN-FCOUP flush couplings and finish both ends of the row with DCNM-FEC end caps (set of 50). DCNM-FPT positioning tools help place the couplings and include a template for the loudspeaker cut-out.
DICENTIS Flush uses the same installation footprint as Bosch DCN Flush devices (except the loudspeaker panel), so an older DCN Flush installation can be replaced without major rework.
Which other DICENTIS Flush parts can ESCO supply?
These are not in our online shop yet. Ask us for a quote:
- DCNM-FIDP identification panel: NFC card reader that reads cards 0 to 1 cm away, so nobody logs in by accident. Up to four per DCNM-FBD2 in dual use.
- DCNM-FICH ID card holder (pack of 25): keeps the card next to the FIDP, so the participant stays logged in while the card is parked and is logged out when it is removed. It takes the place of the end cap on that side.
- DCNM-FAI flush audio interface: connects one third-party microphone or line-level source to the FBD2: balanced or unbalanced, 48 V phantom power, gain 0 to 18 dB, with a contact input for a custom microphone button. It also takes two DCNM-FMCP panels for a rostrum position. The DCNM-FHHC (coiled) and DCNM-FHH (straight 1.5 m cable) handheld microphones connect through it; two FAI give two handhelds per FBD2.
- DCNM-FSL and DCNM-FSL2 flush language selectors: like the DCNM-FSLP, but stand-alone: each connects to a PoE switch with its own network cable, so no FBD2 is needed. The FSL2 can also be daisy-chained.
- DCNM-FET flush extraction tools.
- Headphones: LBB3443/00 and LBB3443/10 lightweight headphones, HDP-LWN neckband headphones and the HDP-ILN induction loop neckband.
Who supplies Bosch DICENTIS in Pakistan, and what warranty do I get?
Electronic Security Company (ESCO) is the only authorized distributor of Bosch, Dynacord and Electro-Voice in Pakistan, so every DICENTIS product is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to an ESCO office and after inspection it is repaired or replaced as needed.
We supply, design and install complete conference and voting systems for parliaments, government offices, boardrooms and auditoriums, with after-sales service nationwide. Prices are quoted per project: tell us your room and number of seats and we will send a quote.
