5.25-INCH OUTDOOR
SURFACE-MOUNT
SPEAKER PAIR
70/100 V AUDIO • 8 Ω BYPASS

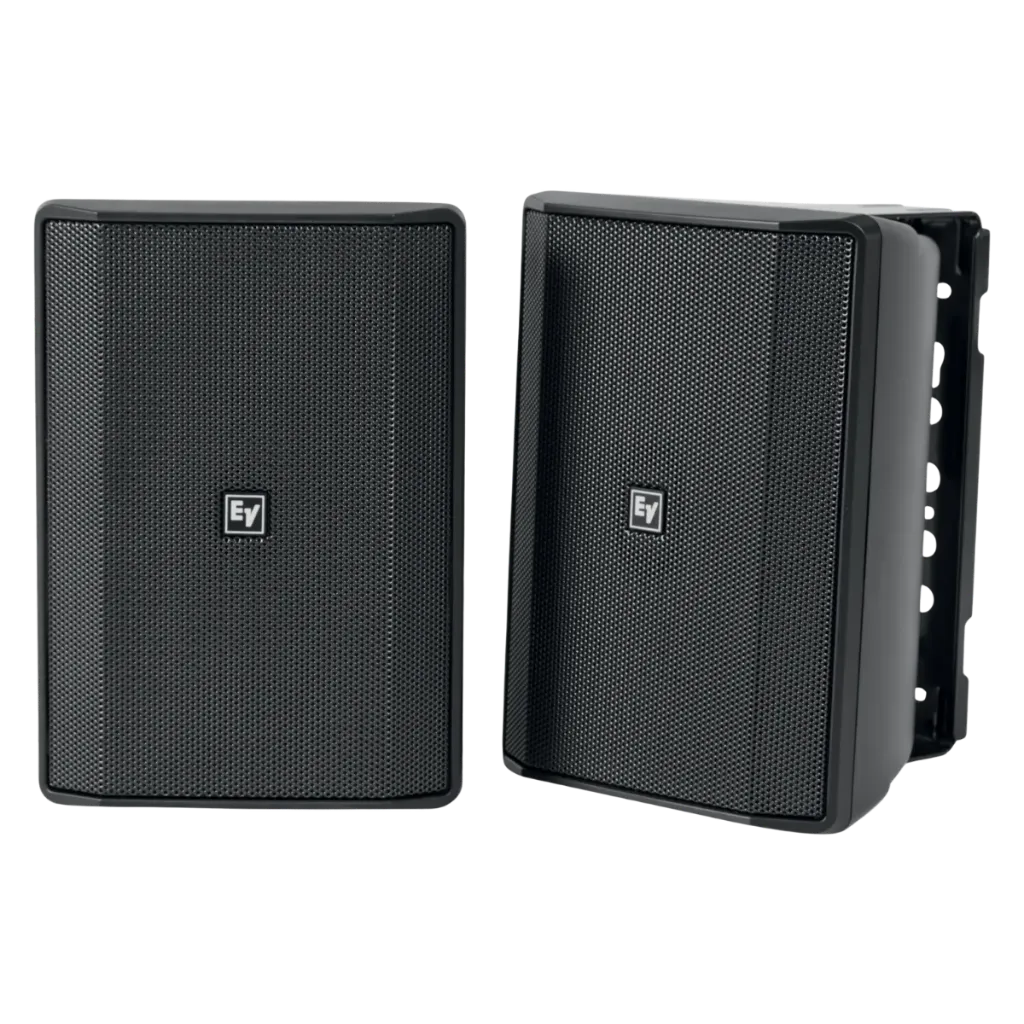

EVID-S5.2XB
5.25-INCH OUTDOOR
SURFACE-MOUNT SPEAKER PAIR
IP65 PROTECTION • 70/100 V AUDIO • 8 Ω BYPASS
Electro-Voice EVID-S5.2XB Product Highlights
Explore the key capabilities of the Electro-Voice EVID-S5.2XB surface speaker.
Two-Way Sound
5.25" + 0.75" two-way: 55 Hz to 20 kHz, up to 108 dB.
Coverage
90° x 90°, 89 dB at 1 W.
70 V / 100 V or 8 Ohm
Taps 60/30/15/8 W (70 V), 60/30/16 W (100 V), or 8 ohm.
Weather
IP65, marine-grade aluminium grille, -25 °C to 55 °C.
Quick Mounting
Bracket for wall or ceiling, adjustable 90° horizontal, 45° vertical.
Loop-Through
Two removable 4-pin Euroblocks: daisy-chain speakers on one line.
What's Included
Every pair of Electro-Voice EVID-S5.2XB loudspeakers comes fully equipped with all necessary mounting hardware and weather-protection accessories for a seamless installation.
2 x Electro-Voice EVID-S5.2X Loudspeakers (Black)
2 x Marine-Grade Aluminum U-Brackets
2 x Weather Input Covers with Dual Gland-Nuts
8 x Weather Cover Screws
4 x Bracket Safety Screws
2 x Rotatable Grille Logos (for Horizontal Mounting)
1 x 5-mm Allen Wrench Tool
1 x Installation Manual

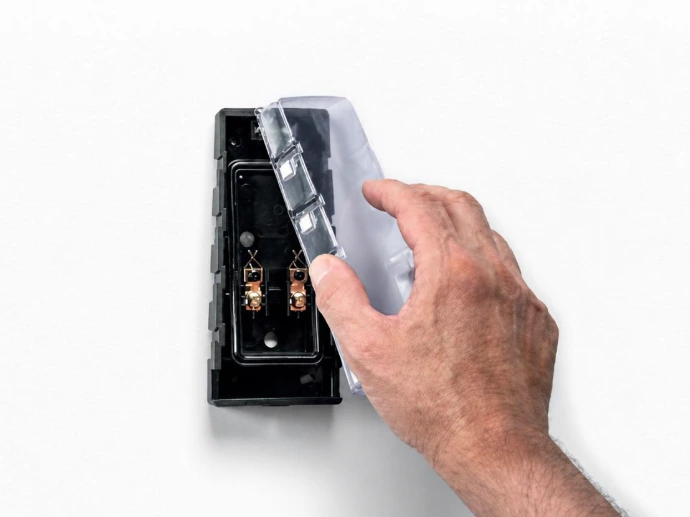

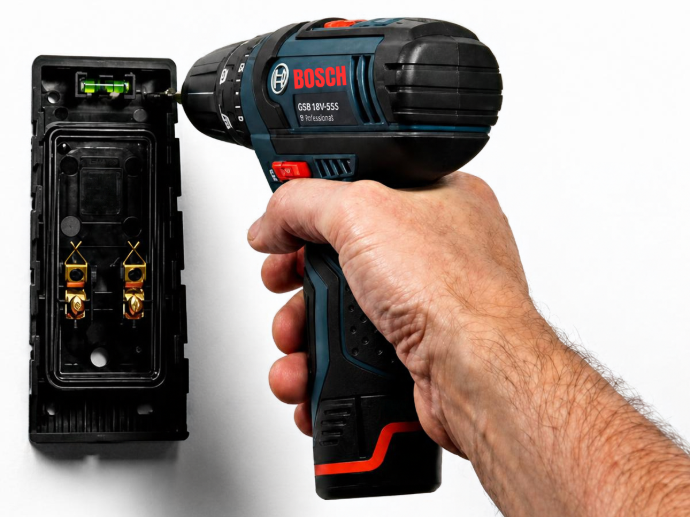

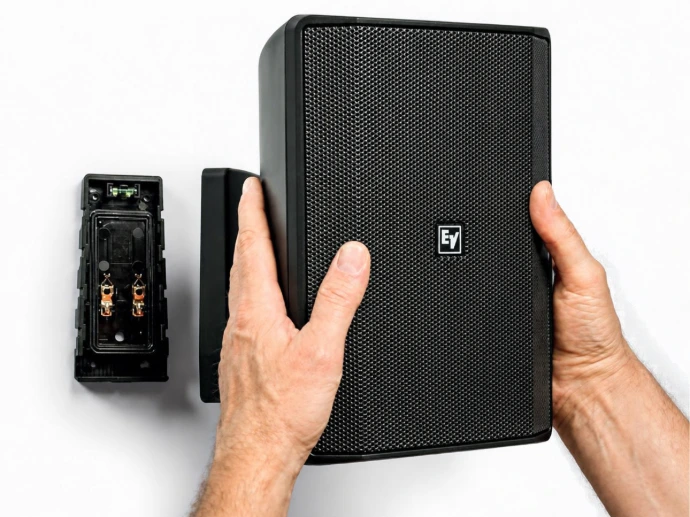

Installation Steps:
Key specs
- 5.25" + 0.75" + two-way
- Taps 60/30/15/8 W (70 V), 60/30/16 W (100 V), 8 ohm bypass
- 89 dB SPL at 1 W, 1 m; max 108 dB
- 55 Hz to 20 kHz (-10 dB)
- 90° x 90° coverage
- IP65, EN 54-24 Type B
- 3.2 kg each, 255 x 180 x 148 mm
- Two 4-pin Euroblocks for loop-through, up to 12 AWG
- Sold in pairs
- Marine-grade aluminium U-bracket
- Recommended high-pass 60 Hz
| Specification | Details |
|---|---|
| Brand | Electro-Voice |
| Model | EVID-S5.2XB |
| Manufacturer Part Number | F.01U.332.738 |
| Speaker Type | Two-way, full-range surface-mount loudspeaker |
| Colour | Black (RAL 9004) |
| Packaged Quantity | 2 speakers (pair) |
| LF Driver | 5.25-inch (133 mm) |
| HF Driver | 0.75-inch (20 mm) |
| Frequency Response (−3 dB) | 90 Hz–20 kHz, half-space |
| Frequency Response (−10 dB) | 55 Hz–20 kHz, half-space |
| Sensitivity | 89 dB, 1 W/1 m, half-space, averaged 100 Hz–10 kHz |
| Maximum SPL (Calculated) | 108 dB / 114 dB peak |
| Coverage | 90° horizontal × 90° vertical |
| Power Handling | 75 W continuous pink noise (100 hours) / 300 W peak |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.5 Ω |
| Recommended High-Pass Filter | 60 Hz, 24 dB/octave |
| Input Transformer | 60 W, 70 V/100 V |
| Transformer Taps — 70 V | 8 W, 15 W, 30 W, 60 W |
| Transformer Taps — 100 V | 16 W, 30 W, 60 W |
| Low-Impedance Operation | 8 Ω bypass |
| Connectors | Removable locking 4-pin Euroblock connectors; connection to additional speakers supported |
| Maximum Wire Size | 12 AWG (2.05 mm diameter) |
| Weather Protection | IP65, per IEC 60529 |
| Enclosure | UL 94-5VB fire-rated ABS plastic |
| Grille | Marine-grade aluminium |
| Mounting | Included marine-grade aluminium U-bracket |
| Operating Temperature | −25°C to +55°C |
| Operating Humidity | 5%–95% |
| Dimensions (H × W × D) | 255 × 180 × 148 mm, without U-bracket |
| Net Weight | 3.2 kg per speaker, without U-bracket |
| Shipping Weight | 9.5 kg per pair |
| Included Hardware | U-brackets, 5 mm Allen wrench and input weather covers |
| Certifications | EN 54-24 and UL 1480; installation requirements and rated data are detailed in the official manual |
Know before you buy
Quick answers about the EVID-S5.2XB (Pair), and how it compares.
Where does the EVID-S5.2XB fit?
The outdoor and voice alarm version of the S5.2: IP65, EN 54-24 Type B, marine-grade aluminium grille and bracket, 60 W transformer. Choose it over EVID-S5.2TB for exposed, coastal or EVAC projects.
How is it powered?
Taps 60, 30, 15 and 8 W on 70 V, 60, 30 and 16 W on 100 V, or 8 ohm bypass, set by a rear switch.
Can it go outdoors?
Yes: IP65, -25 °C to 55 °C, suited to coastal sites. Fit the supplied input weather covers.
How is it installed, and what is in the box?
Each pair includes U-brackets, input weather covers and a 5 mm Allen wrench.
Which EVID surface speaker for my space?
- Small rooms, patios, covered walkways: EVID-S4.2TB.
- Restaurants, shops, gyms: EVID-S5.2TB.
- Exposed outdoor, coastal sites or voice alarm (EN 54-24): EVID-S5.2XB.
- Lawns, plazas, marriage halls, bars, large outdoor areas: EVID-S8.2TB or EVID-S8.2TW (50 Hz, 110 dB).
- Azan from a minaret: use Bosch horn loudspeakers; they project speech much further than a cabinet speaker.
How do the EVID surface speakers compare?
| Model | Drivers | Max tap | 8 ohm | Sensitivity | Max SPL | Frequency range | Coverage | IP |
|---|---|---|---|---|---|---|---|---|
| EVID-S4.2TB | 4" + 0.75" | 15 W | No | 86.5 dB | 98.5 dB | 75 Hz to 20 kHz | 110° x 110° | IP54 |
| EVID-S5.2TB | 5.25" + 0.75" | 30 W | Yes | 90 dB | 109 dB | 60 Hz to 20 kHz | 90° x 90° | IP54 |
| EVID-S5.2XB | 5.25" + 0.75" | 60 W | Yes | 89 dB | 108 dB | 55 Hz to 20 kHz | 90° x 90° | IP65, EN 54-24 |
| EVID-S8.2TB / EVID-S8.2TW | 8" + 1" | 60 W | Yes | 90 dB | 110 dB | 50 Hz to 20 kHz | 90° x 90° | IP54 |
Frequency range at -10 dB, max SPL continuous. B = black RAL 9004, W = white RAL 9003. Sold in pairs.
Who supplies Electro-Voice in Pakistan, and what warranty do I get?
Electronic Security Company (ESCO) is the only authorized distributor of Bosch, Dynacord and Electro-Voice in Pakistan, so every Electro-Voice product we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to an ESCO office and after inspection it is repaired or replaced as needed. We help with system design and installation. Prices are quoted per project: contact us for a quote, or see the full Electro-Voice range.
